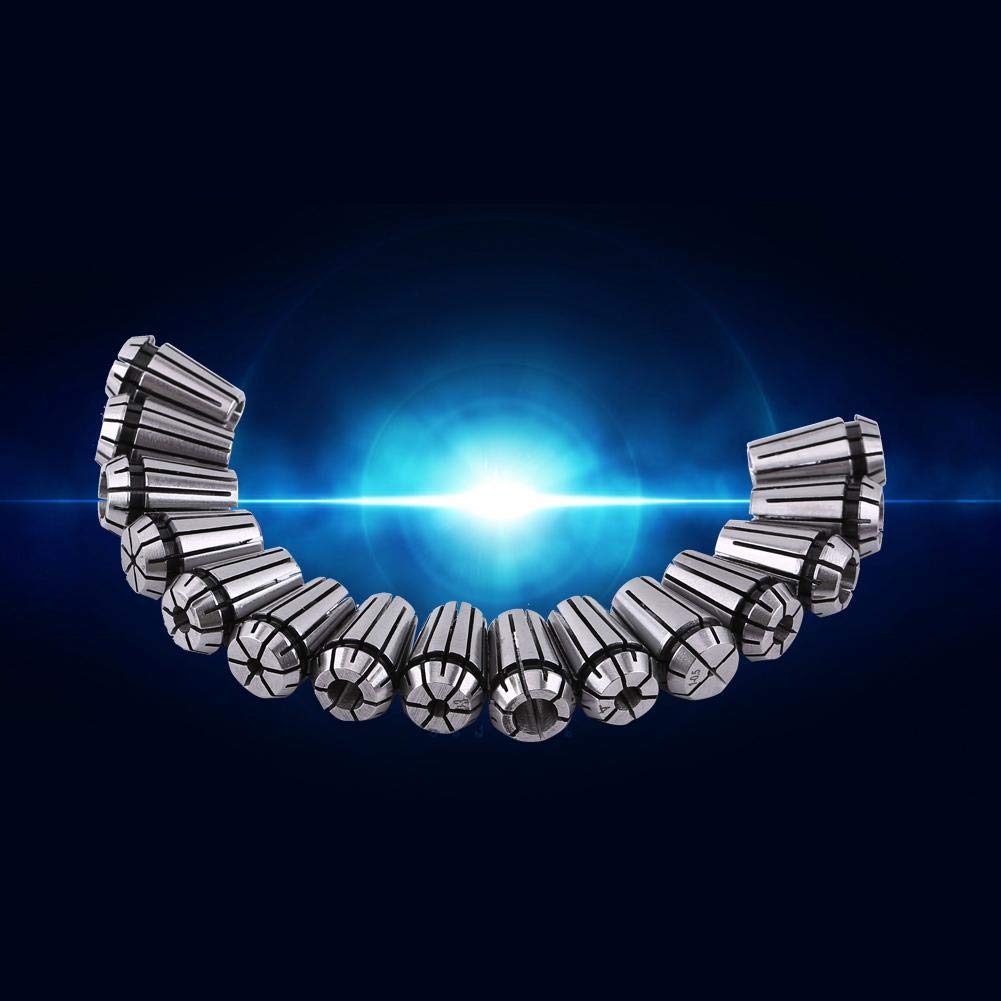

15Pcs of 1Set Collet, ER11 Spring Collet Chuck for CNC Engraving Machine & Milling Lathe Workholding Tool 1mm, 1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 6.5mm, 7mm, 1/8″,1/4″

196.99

  • ◂FEATURE – Fine workmanship, good elasticity, high precision.
  • ◂STABLE PERFORMENCE – Made of high quality spring steel, they are stable in performance.
  • ◂INSTRUCTIONS – Collet must be placed into collet chuck nut before inserting into collet chuck.
  • ◂PACKAGE – Each collet is well packed in separate protective container with label.
  • ◂PROFESSIONAL – For CNC milling lathe tool and work-holding engraving machine.

In stock

— OR  —

— OR  —

  • International Express shipping available
  • 30 day easy returns
Guaranteed Safe Checkout

Description:
These spring collets are made of high quality 65Mn spring steel for CNC milling lathe tool and work-holding engraving machine. There are total 15 collets of various sizes in on set which can basic meet your need. Each collet is well packed in separate protective container with label so you can easily distinguish them. Collet must be placed into collet chuck nut before inserting into collet chuck.
Specifications:
Material: 65Mn spring steel
Model: ER11

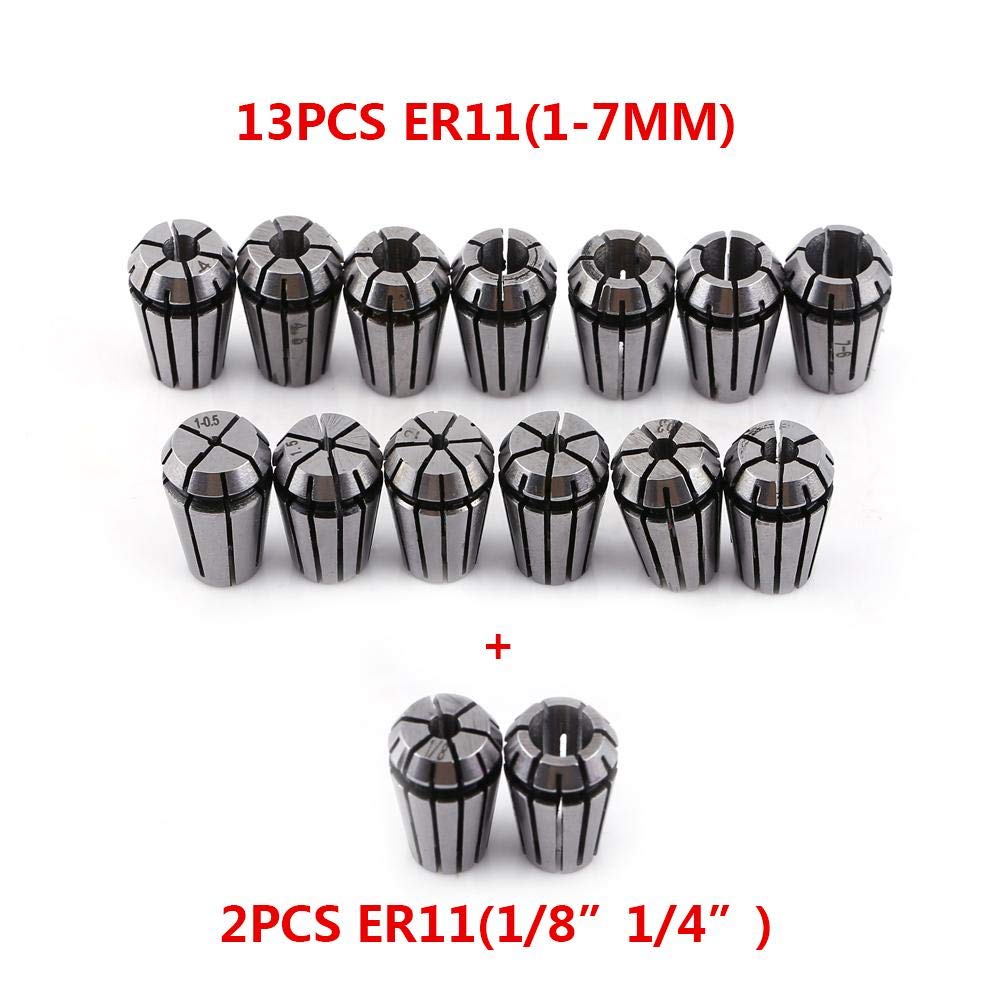

Range: 1mm, 1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 6.5mm, 7mm, 1/8″ ,1/4″ Height: 18mm / 0.7″ OD: 10mm / 0.39″
Run-Out Tolerance: <0.008mm
Weight: 127g(approx.)

Package Includes:
1 Set(15pcs) x Collets

Note: 1. Please allow 1-2mm error due to manual measurement. Thanks for your understanding. 2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.

Additional information

Weight 0.12 kg
brand

Yanmis

dimensions
