Product specifications:
– TV system: NTSC (National Television System Committee).
– Resolution: 480 / 520 TV lines.
– Lens angle: 140 ~ 170 degrees.
– S/N ratio: over 48 dB (AGC-OFF).
– Video colour: night vision colour.
– Video output: 1.0 Vp-p, 75 ohm.
– Image device: 1/3 inch, colour.
– Sensing area: 5.78 mm x 4.19 mm.
– Sync system: internal.
Voltage: DC 12 V +/-1.
White balance: car.
Waterproof: IP67.
Effective pixels: 628 px x 586 px.
Electronic shutter: 1/60 – 1/10000 second.
Current consumption: < = 150 mA.
Current consumption: 90 mA maximum.
Temperature: -40 °C to + 60 °C, RH95 % max.
Minimum illumination: 0.3 Lux/F1.2
Operating temperature: -30 °C to +50 °C, RH 95 %.
Top quality 1/3 inch colour sharp LCD.
Includes:

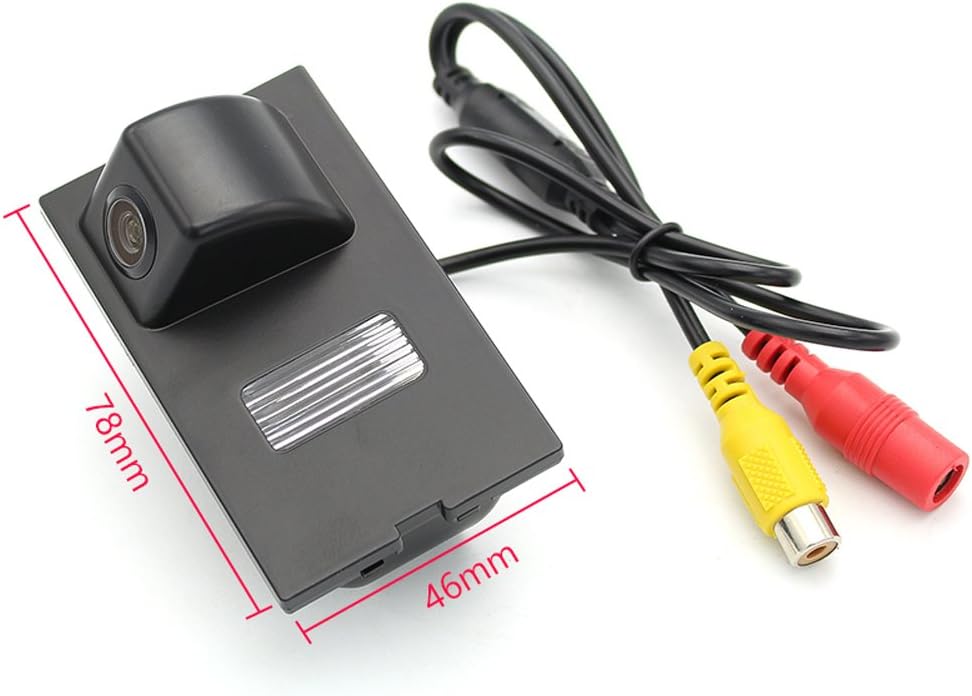

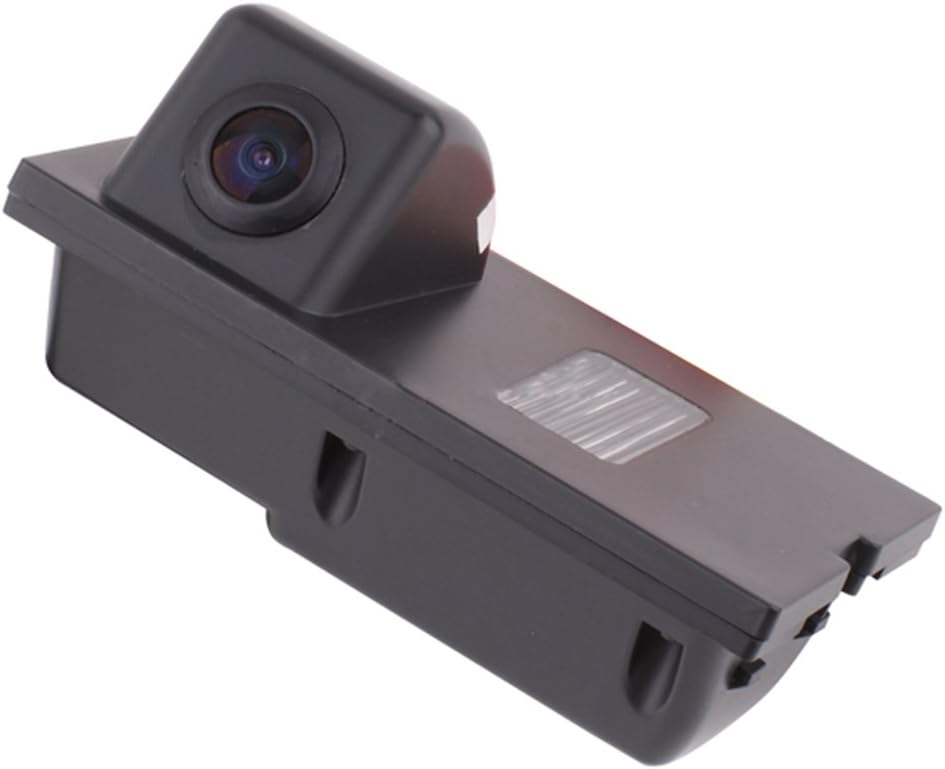

1 x rear view camera.
1 x power cable.
1 x 6 metre video cable.
1 x user guide (English language not guaranteed).
