Features:
– This is a great circuit breaker used to protect an electrical circuit from damage caused by excess current resulting from an overload or short circuit.
– Fast closing to ensure reliable operation of the load and prolong the life of electrical circuit breakers.
– It is easy and reliable to use, which supports short circuit protection, overload protection.
– It can be mounted conveniently on DIN rail, DIN rail is not included.
– Widely used for solar panels grid system, wind and solar hybrid system and many other DC systems.
Specifications:

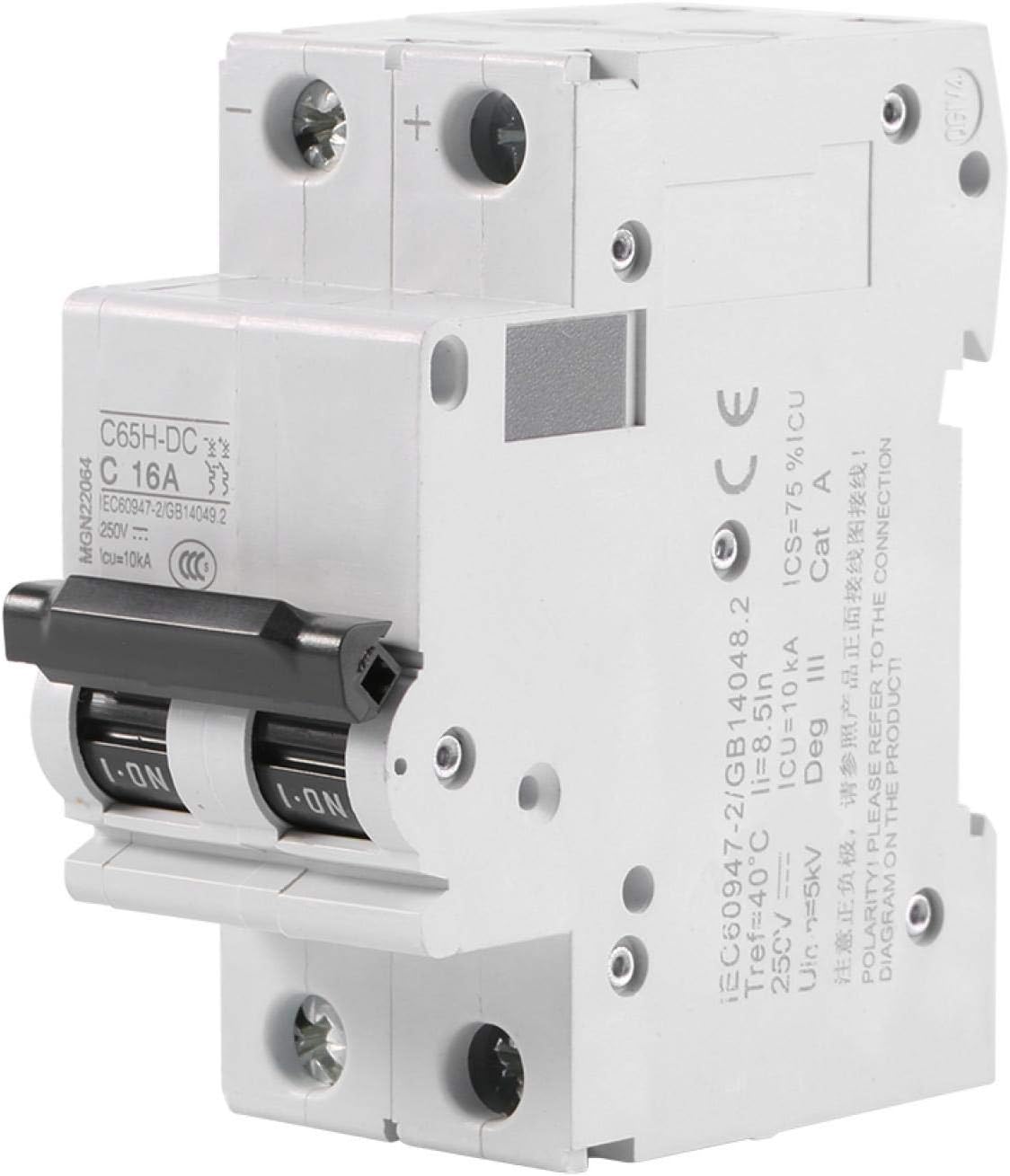

Model: C65H-DC 2P
Poles: 2P
Rated Current: 16A/32A/63A(Optional)
Rated Voltage: DC250V
Ultimate Breaking Capacity(ICU): 10kA
Trip Characteristics: B, C
Rated Impulse-withstand Voltage(Uimp): 5kV
Current Limiting Class: 3
Mechanical Life: 20,000 times (IEC 60947-2/GB14048.2)
Electrical Life: 10,000 times (IEC 60947-2/GB14048.2)
Operating Temperature: -25℃~+70℃
Storage Temperature: -40℃~+85℃
Heat & Humidity Resistance: 55℃, 95%RH
Size: 8.2 x 3.6 x 7cm / 3.22 x 1.41 x 2.75″
Package Includes:
1 x Circuit Breaker
1pc 250v Solar Din Rail Circuit Breaker, 16a/32a/63a Low Voltage Circuit Breaker for Solar Panels Grid System Wind and Solar Hybrid System and Many Other DC Systems(63A)
$42.99
- [Long Life]: This solar breaker rail has a mechanical life of 20,000 times and an electrical life of 10,000 times
- [Long Life]: This solar breaker rail has a mechanical life of 20,000 times and an electrical life of 10,000 times
- [Quick Closing]: This dc circuit breaker can be closed quickly to ensure reliable operation of the load and extend the electrical life of the circuit breaker
- [Easy Installation]: This solar din rail circuit breaker can be easily installed on the din rail, excluding the DIN rail
- [Overload Protection]: This low voltage circuit breaker is easy to use and reliable, which supports short circuit protection, overload protection
- [Application]: This dc breaker din solar panel shuts down the grid system, grid system solar panel, wind and solar hybrid power system and any other DC system
In stock
Additional information
| Weight | 0.21 kg |
|---|---|
| brand | Yosoo Health Gear |
| dimensions | 8 x 8 x 4 cm; 194 Grams |
