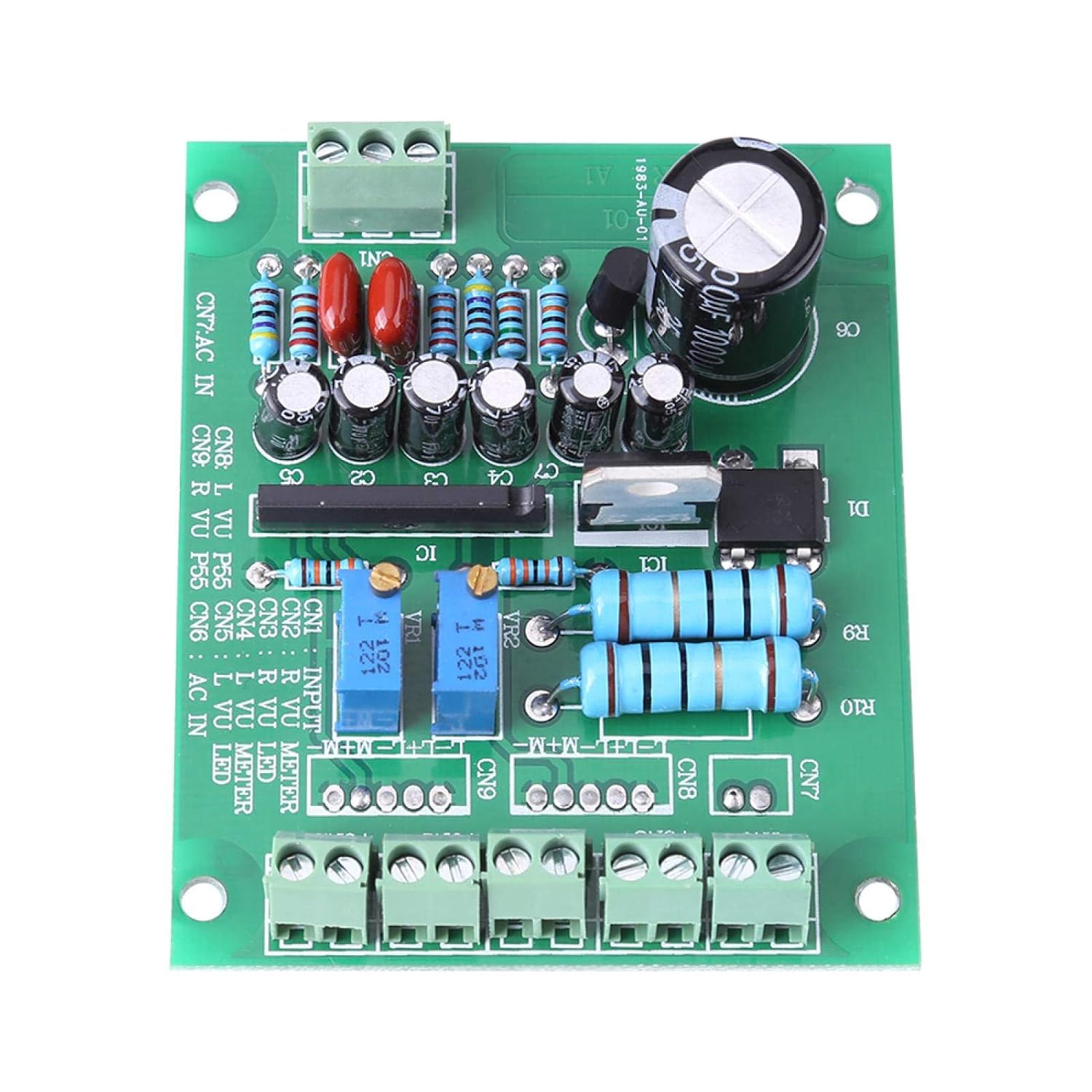

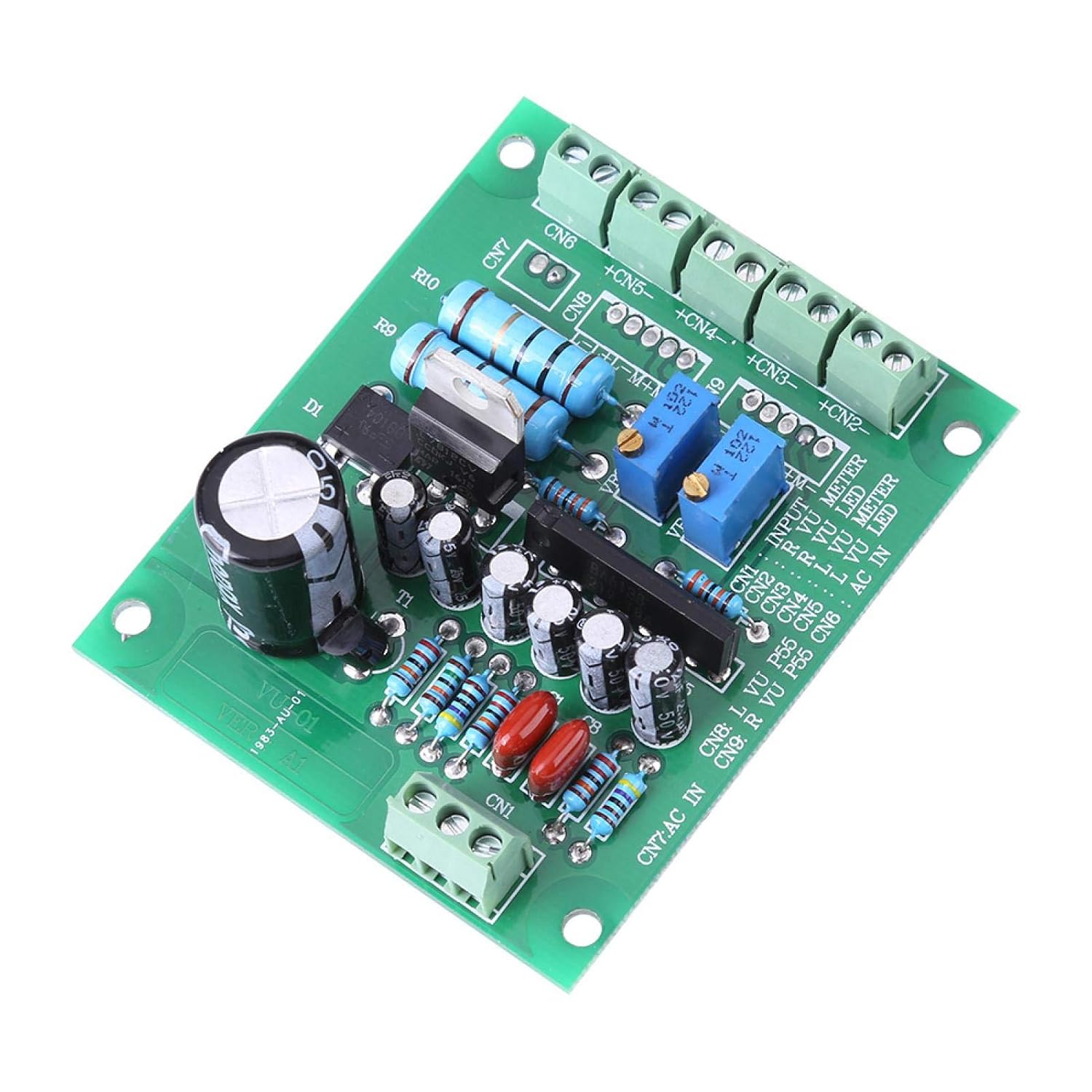

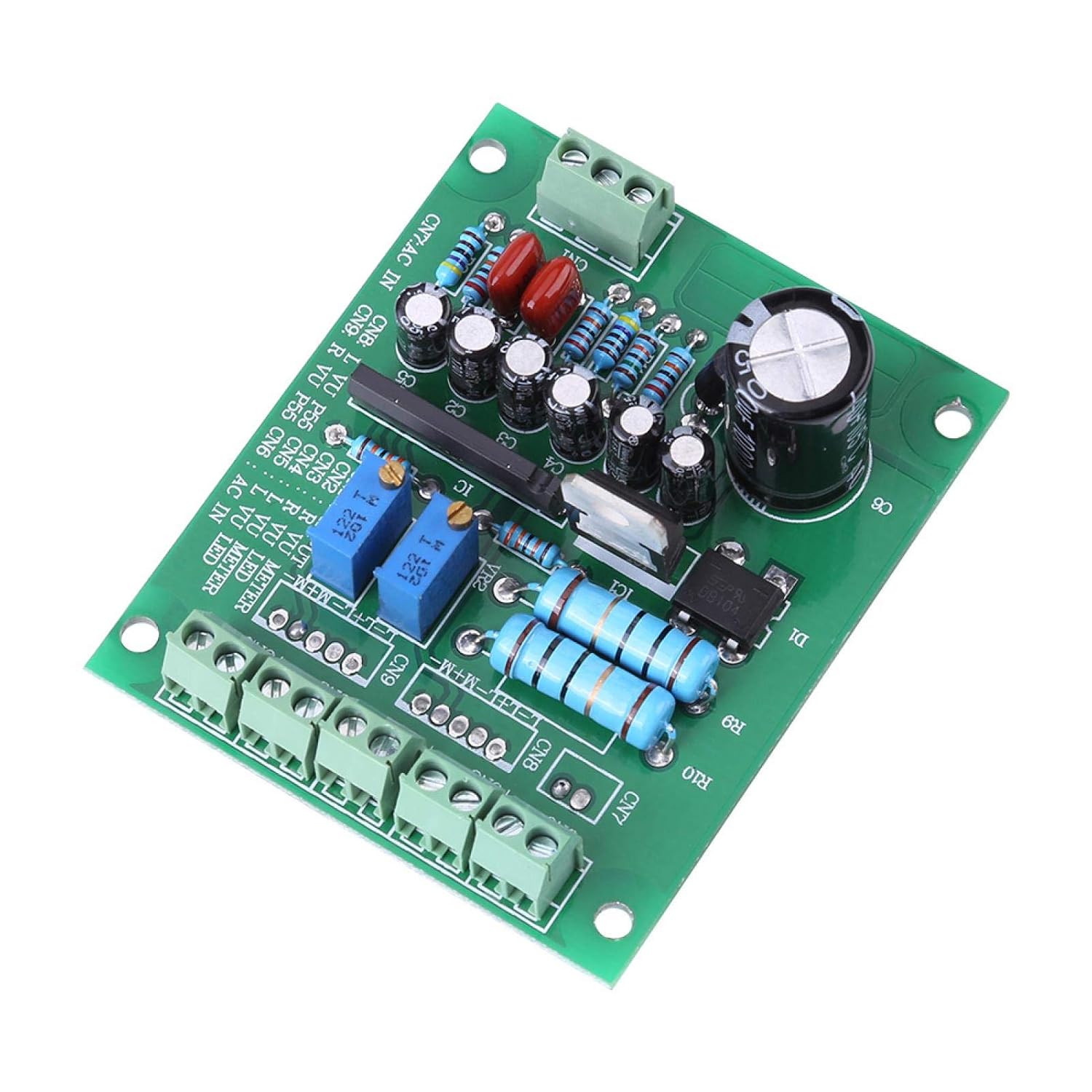

Features: Driver board: The design of bridge pile rectifier filter circuit, can be a transformer or DC power supply, power supply voltage 12-15V / 300mA. The level swings adjustable, can be compatible with all the different types of table header. The drive signal source can be connected to the amplifier input or audio amplifier output, without changing original circuitry. Support two level meter backlight power supply, change the current limiting resistor can be connected to different backlight. The driver board supports two output connection terminals. VU meter: Voltage 500MV, Weight: 21 grams, excellent quality, cute appearance, stable and reliable performance. Header DC resistance: 652Ω The backlight of incandescent bulbs. Operating voltage: 6 ~ 12V AC or DC. In the backlight brightness to meet the requirements under the conditions, lower operating voltage, can significantly prolong life. Need to use current limiting resistor in series 100Ω to 200Ω, reduce the impact on the filament boot. Specifications: Material: Plastic + metal Driver board: 6.8cm x 5.5cm/2.67 x 2.16inch VU meter: 3.4cm x 3.4cm/1.33 x 1.33inch Weight: 90gPacking Include: 2 x 500μA VU Meter 1 x AC12V driver
2 Pcs Plastic+Metal VU Meter Warm Back Light Recording & Audio Level Amp with Driver Integrated Circuits Board for Connections of CD Players Computer etc
$63.99
- 【Multipurpose】: The design of bridge pile rectifier filter circuit can be a transformer or DC power supply, power supply voltage 12-15V / 300mA
- 【Convenient Connection】: The drive signal source can be connected to the amplifier input or audio amplifier output, without changing original circuitry
- 【Supporting】: Supporting two level meter backlight power supply, change the current limiting resistor can be connected to different backlight
- 【Compatibility】: The adjustable level swings can be compatible with all the different types of table header
- 【Suitable Terminals】: The driver board supports two output connection terminals
In stock
