Features:This is a great circuit breaker used to protect an electrical circuit from damage caused by excess current resulting from an overload or short circuit closing to ensure reliable operation of the load and prolong the life of electrical circuit breakers is easy and reliable to use, which supports short circuit protection, overload protection can be mounted conveniently on DIN rail, DIN rail is not includedly used for solar panels grid system, wind and solar hybrid system and many other DC systemsifications:Model: C65H-DC 2PPoles: 2PRated Current: 16A/32A/63A(Optional)Rated Voltage: DC250VUltimate Breaking Capacity(ICU): 10kATrip Characteristics: B, CRated Impulse-withstand Voltage(Uimp): 5kVCurrent Limiting Class: 3Mechanical Life: 20,000 times (IEC 60947-2/GB14048.2)Electrical Life: 10,000 times (IEC 60947-2/GB14048.2)Operating Temperature: -25℃~+70℃Storage Temperature: -40℃~+85℃Heat & Humidity Resistance: 55℃, 95%RHSize: 8.2 x 3.6 x 7cm / 3.22 x 1.41 x 2.75″Package Includes:1 x Circuit Breaker

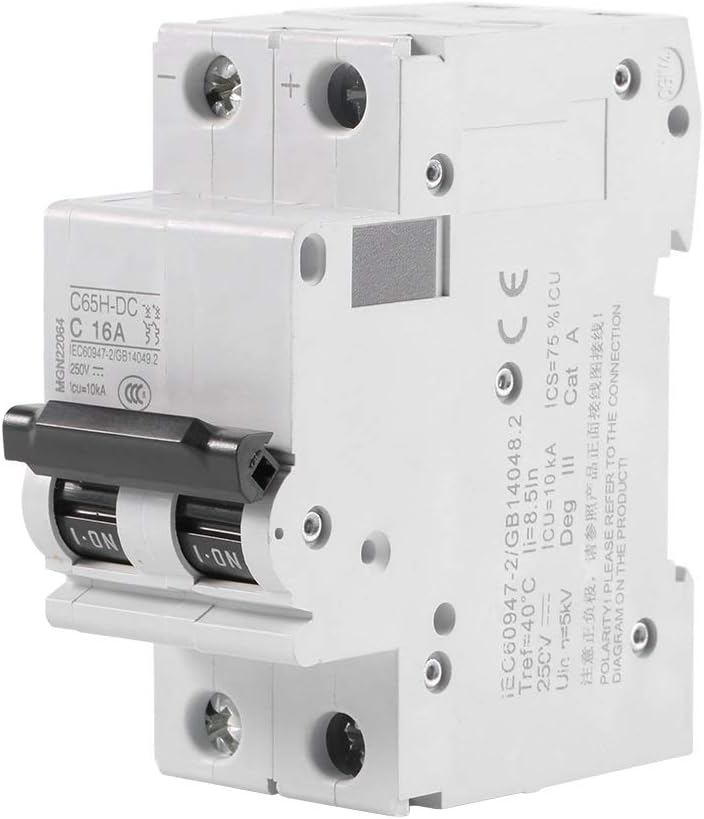

250V DC 2P Low-Voltage Miniature Air Circuit Breaker Din Rail Mount Solar Energy Switch for Solar Panels Grid System (Edition : 16A)
$19.99
- This is a great circuit breaker used to protect an electrical circuit from damage caused by excess current resulting from an overload or short circuit.
- Fast closing to ensure reliable operation of the load and prolong the life of electrical circuit breakers.
- Air Circuit Breaker is easy and reliable to use, which supports short circuit protection, overload protection.
- Miniature Circuit Breaker can be mounted conveniently on DIN rail, DIN rail is not included.
- Widely used for solar panels grid system, wind and solar hybrid system and many other DC systems.
In stock
Additional information
| Weight | 0.21 kg |
|---|---|
| brand | Brand: Samfox |
| dimensions |
