LED Strip Connector 2 Pin 8mm – DIY Strip to Wire Quick Connection for SMD 3528 2835 Led Strip Lights(Pack of 10) NOTE: 1 sure your section of led light strip is 8mm wide 2 pin IP20 Non-WATERPROOF LED Strip.2. Need to peel off the silicone on the surface of led lights when you want to connect WATERPROOF LED strip lightable for a variety of wire sizes Stripping-free connectors usually have strict requirements on the wires, such as the standard wire 20 awg, 18 gauge can be well matched, and it is difficult to open again after closing. These BL LED strip connector improves these shortcomings, 24 – 18awg standard or non-standard solid wire, stranded wire and fused wire can be applied. not only can be firmly clamped, but also easy to open and reuseallation Tips: Strip End: 1 the wire clip. It should snap open with just a little effort. 2rt your 8mm LED light strip inside the clip underneath the two contact prongs, making sure the + and – symbols align. 3 the wire clip shut. Gently pull on the tape to confirm you’ve secured the strip inside the connector. Wire End: 1rate 2 wires and stripping 2. Use a fingernail to press the two wires into the slot to clamp them. 3. Snap the wire clip shut. Pull on the wire to confirm you’ve secured the wires inside the connector. If you have any problem about installation, pls feel free to contact me. Package: 10pcs Strip to Wire Connectors

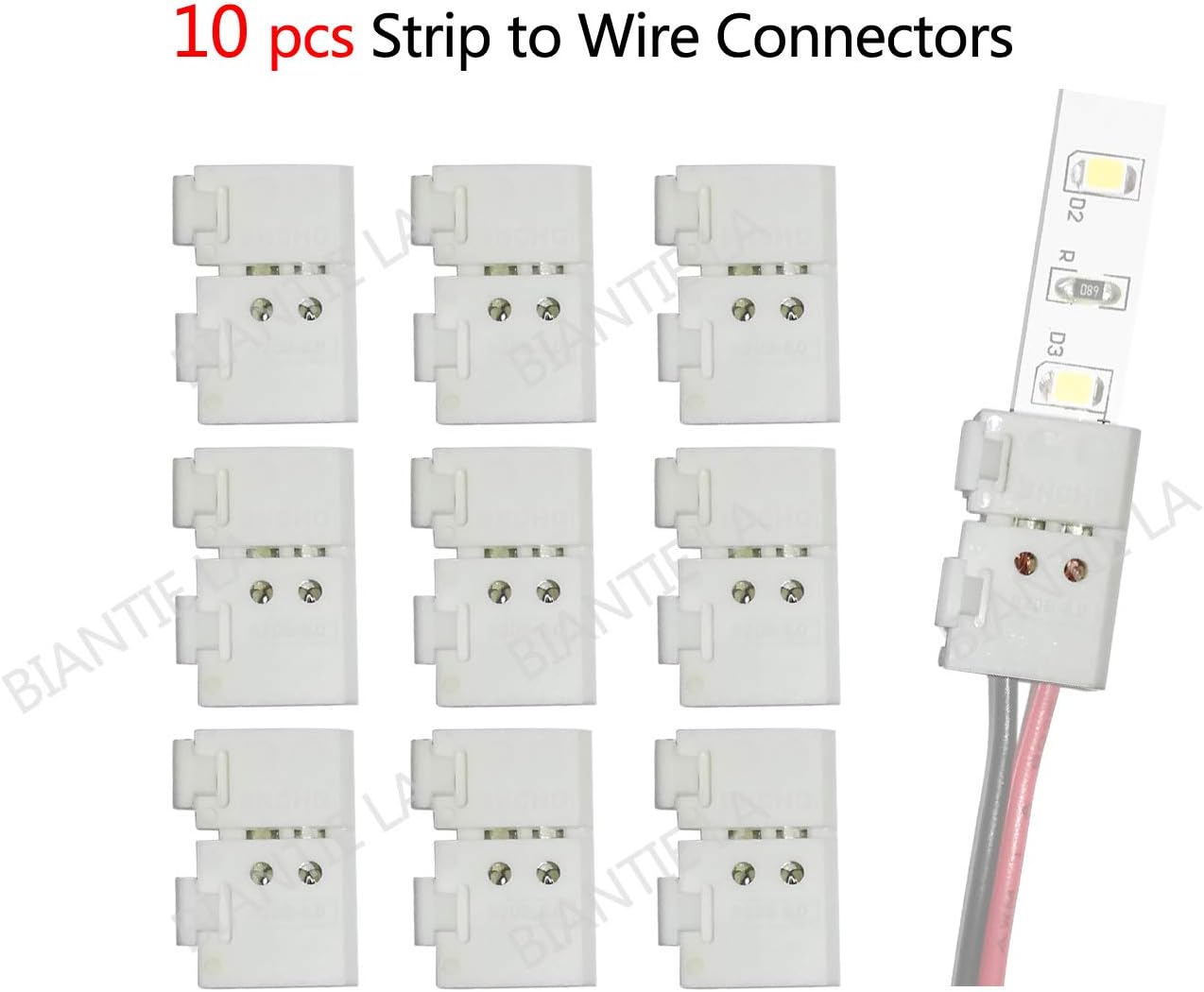

3528 2835 2 Pin 8mm LED Strip Connector – DIY Strip to Wire Quick Solderless Connection for 12v 24v Single Color Led Strip Lights (Pack of 10)
$30.99
- Make sure this fits by entering your model number.
- CONNECT TAPE TO WIRE – No soldering, quick and flexible connection. The 2 pin Led Strip Connector suitable for 8mm width SMD 3528 2835 3014 5630 single color LED light strip. One end connect 2-conductor flat extension cable and another end for led strip. These led strip connectors can not work with 10mm led strips, rgb led strip.
- NOT PICKY ABOUT WIRES – Work for 24awg, 22awg, 20awg, 18awg solid wire, stranded wire and fused wire etc. Only need to press the stripped wire into the slot to firmly connect and conduct. It avoids the dilemma that other connectors can’t pierce the wires or can’t be turned on or difficult to reuse.
- SUPPORT UP TO 6A CURRENT CARRYING – Compatible with 5v, 12v, 24v led strips, allow you to connect longer LED strips by one LED connector. DIY led strip to wire connection length you want, no mater strip-to-wire extension or strip-to-strip jumper, free from the limit of terminal position
- COMPATIBLE WITH WATERPROOF STRIPS – Should peel off covered silicon on the surface around soldering line area, if you want to connect WATERPROOF LED strip light.
- MONEY-BACK GUARANTEE – The led connectors are sold with a full 30 days money-back guarantee. If you’re unsatisfied with this item for any reason, we’ll refund your purchase price immediately.
In stock
Additional information
| Weight | 0.04 kg |
|---|---|
| brand | Alightings |
| dimensions | 2 x 1.3 x 0.7 cm; 40 Grams |
