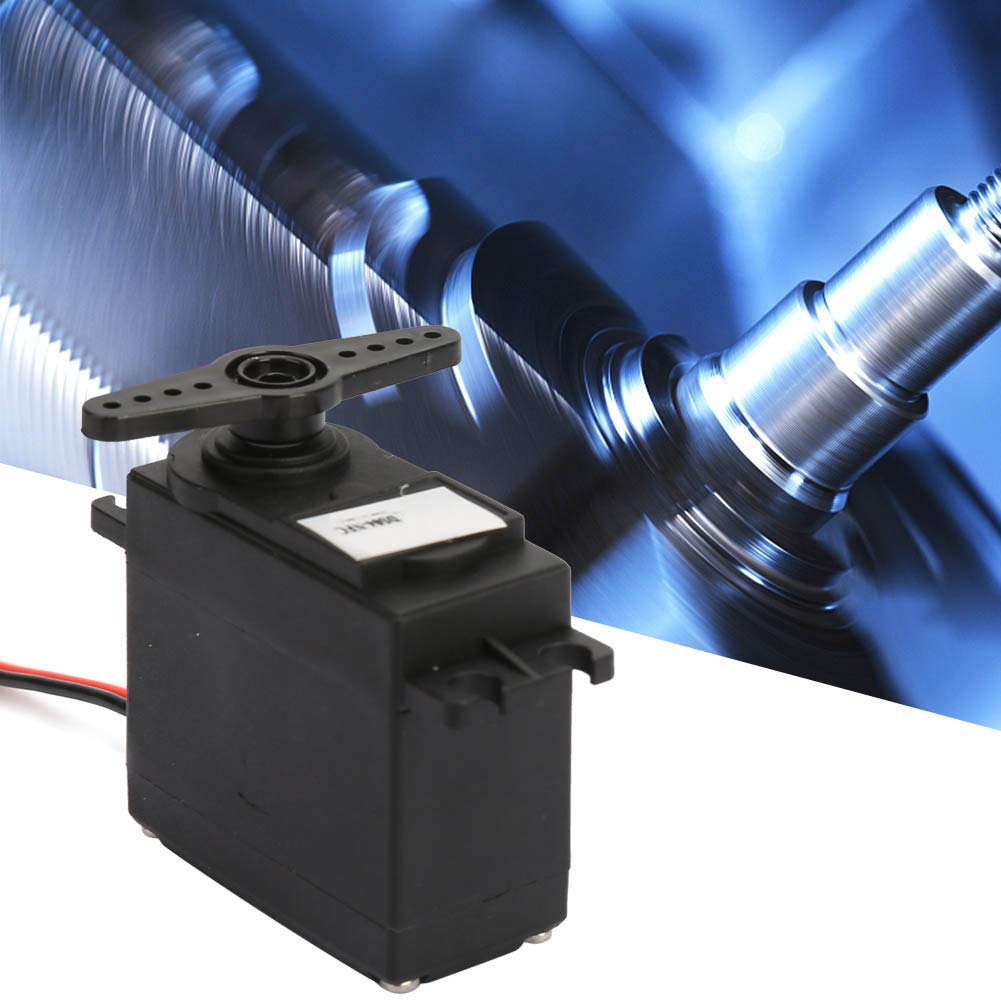

Specification: Condition: 100% Brand New Item Type: 360 Degree Continuous Rotation Servo Motor Material: Metal + Plastic Color: Black Product Size: Approx. 40.8*20*39.5mm / 1.6*0.8*1.6inch Weight: Approx. 52g / 1.8oz Torque: 5.5kg/cm (at 4.8V) Uses: Aircraft models, Car models, Robots, etc. Working Voltage: 4.8V-6V Operating Temperature: 0°C – 60°C Current Usage: <1000mA Wiring Method: As can be seen from the figure, the steering gear has three lines: red line, black line, and white line. 1. The red line is the positive pole of the power supply, connected to the positive pole of the 5V-6V DC power supply. 2. Black wire is connected to the negative pole of the power supply. 3. White line signal input, which is the 50HZ signal input line mentioned above. Package list: 1 x 360 Degree Continuous Rotation Servo Motor 4 x Rocker Arm 4 x Rocker Arm Cap 4 x Rat-tail Screw 4 x Flat Tail Screw 1 x Black Flush Tail Screw Notes: 1. The actual product color may deviate from the photo due to light. 2. There may be a slight deviation in the measurement of product.
Part number:- Hopcde96pnam71w4334
Item Weight:- 52 g
Product Dimensions:- 4.1 x 4 x 2 cm; 52 Grams
Item model number:- Hopc-GS19687RY4-66d14
Material:- Plastic
Voltage:- 6 Volts
Item Package Quantity:- 1
Special Features:- default
Batteries Required?:- No
Date First Available:- 30 Dec. 2020
Brand:- Hopcd
Voltage:- 6 Volts
Material:- Plastic
Item weight:- 52 Grams
