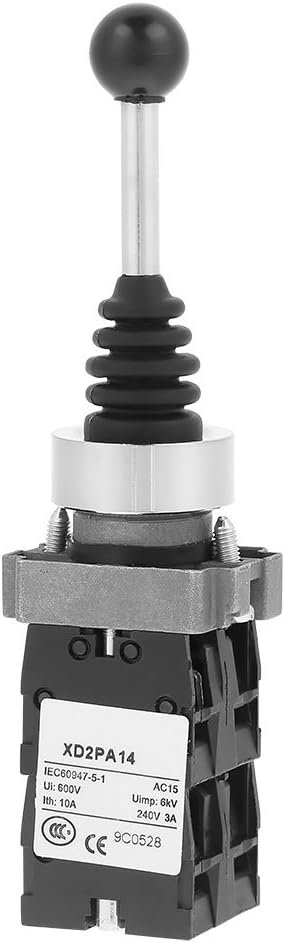

4-Position Switch,XD2PA14 4NO Locked Latching Joy Stick Joystick Switch

$18.99

  • 【Instructions】The joystick switch is a latching switch that has 4 normally open contacts
  • 【Durable and good performance】Made of high quality material, this switch is durable and has good performance

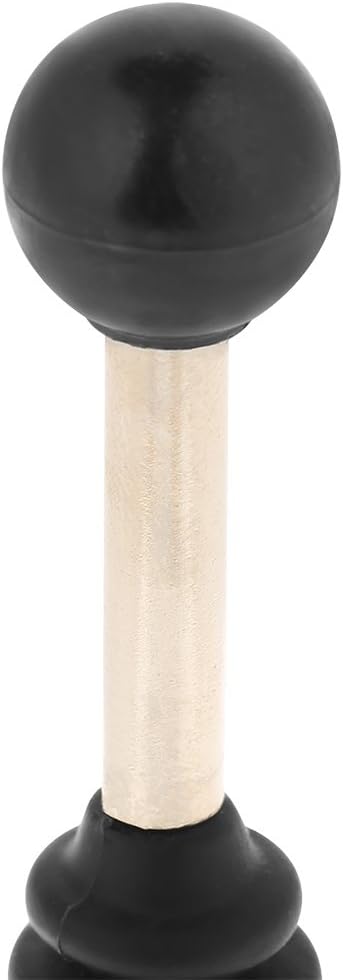

  • 【Waterproof, oil proof, dustproof】Rubber sleeve cover on stick is resistant to water, oil and dust
  • 【Widely used】Widely used for industrial control AC 50Hz and DC circuits
  • 【Main use】It can control magnetic starter, contactor, relay and other electrical circuits

In stock

— OR  —

— OR  —

  • International Express shipping available
  • 30 day easy returns
Guaranteed Safe Checkout

Features:

Specifications:

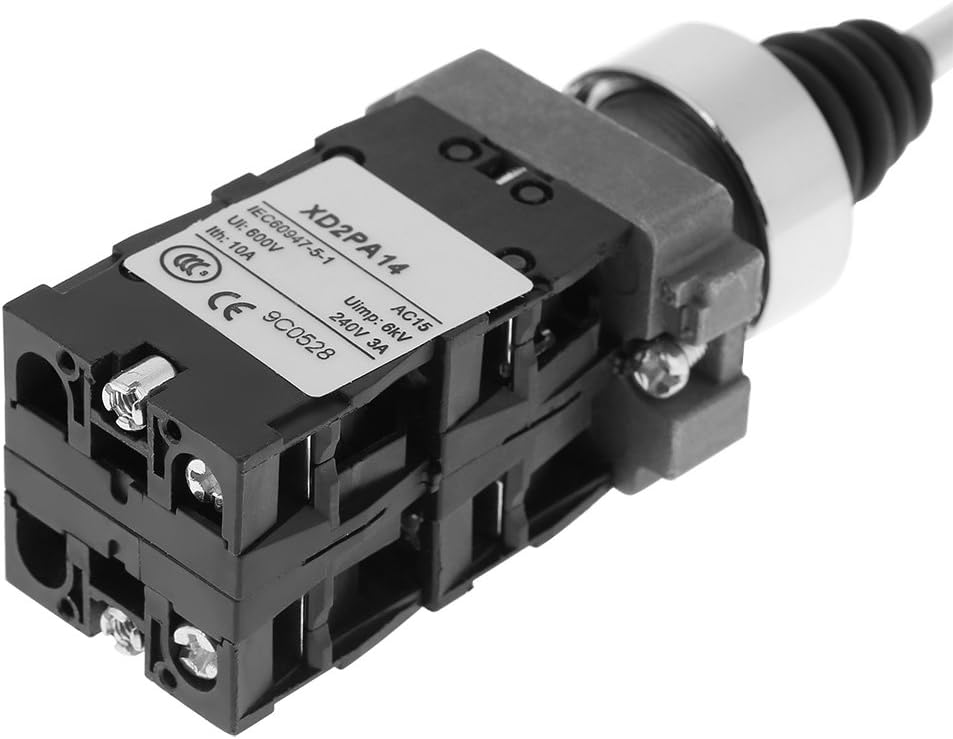

Model: XD2PA14
Type: 4-position latching
Contact: 4NO
Rated Voltage: 0~380V AC (50Hz); 0~220V DC
Mounting Hole Diameter: 22mm
Rated Isolation Voltage(Ui): 600V
Rated Impulse Withstand Voltage(Uimp): 6Kv
Thermal Current Rating (Ith): 10A
Operating Temperature: -25~+55℃ (no ice)
Operating Humidity: 45~85%RH (no condensation)
Contact Resistance: ≤50mΩ
Isolation Resistance: ≥100Ω
Max. Withstand Voltage: 3000V, AC 50Hz
Shock Resistance: >10m/s² (about 10G)
Electrical Life: >3,000,000times

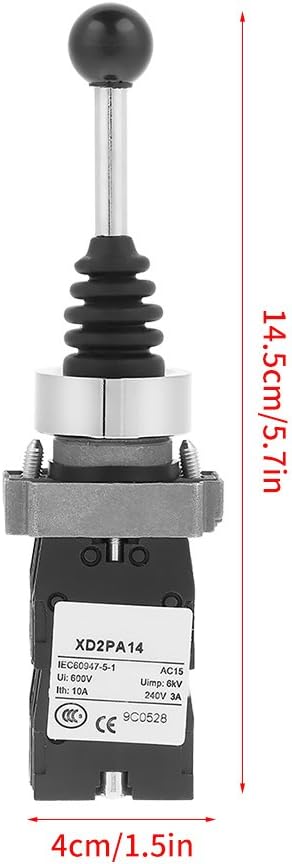

Mechanical Life: 1,000, 000times Size: 14.5*4cm/5.7*1.6in
Weight: 151g(approx.)

Package Includes:
1 x Switch

Additional information

Weight 0.12 kg
