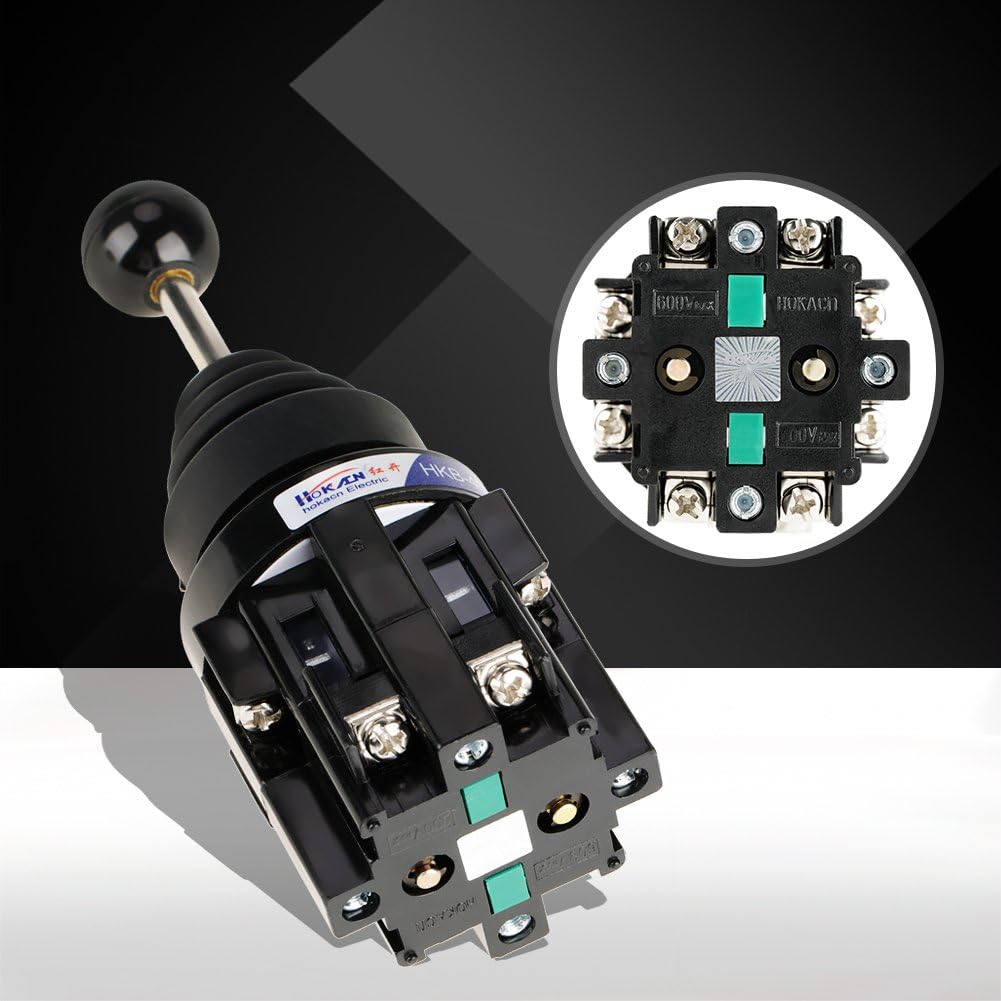

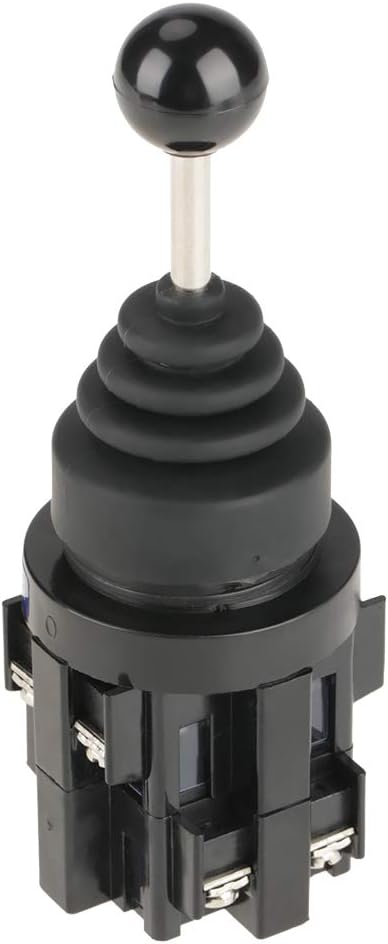

Features: The joystick switch is a momentary switch that has 4 normally open contacts. The stick will return to its original position once released. Rubber sleeve cover on stick is resistant to water, oil and dust. Widely used for industrial control AC 50Hz and DC circuits. It can control magnetic starter, contactor, relay and other electrical circuitsifications: Model: CS-402 Type: 4-position momentary Contact: 4NO Contact Rating: 150V/15A; 250V/10A; 440V/4A Angle: ±30° Electrical Life: ≥500,000 times Mechanical Life: ≥500,000 times Mounting Hole Diameter: 30mm Size: 15×5.5cm/5.91×2.2in Weight: 205g(approx.)Package Includes: 1 × Switch
4NO 4-Position Momentary Joystick Switch CS-402 Return Momentary Joy Stick Switch
$45.99

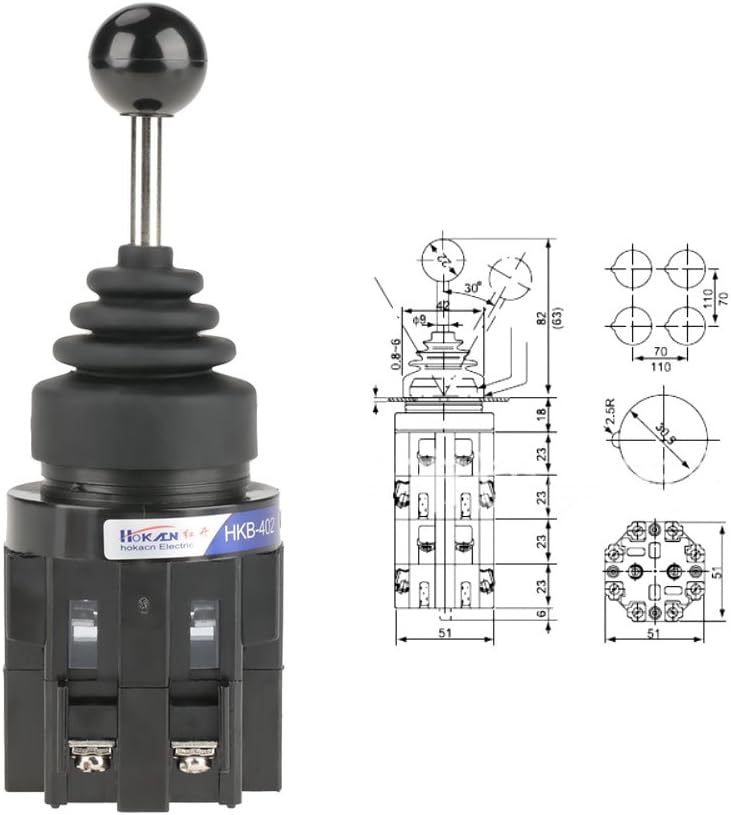

- ◇ PRODUCT NAME—Momentary Joystick Switch; Type: 4-position momentary; Contact: 4NO; Contact Rating: 150V/15A; 250V/10A; 440V/4A; Angle: ±30°; Electrical Life: ≥500,000 times; Mechanical Life: ≥500,000 times; Mounting Hole Diameter: 30mm
- ◇ AC 50Hz AND DC CIRCUITS CONTROLLING—The momentary joystick switch is widely used for industrial AC 50Hz and DC circuits controlling, can also control magnetic starter, contactor, relay and other electrical circuits

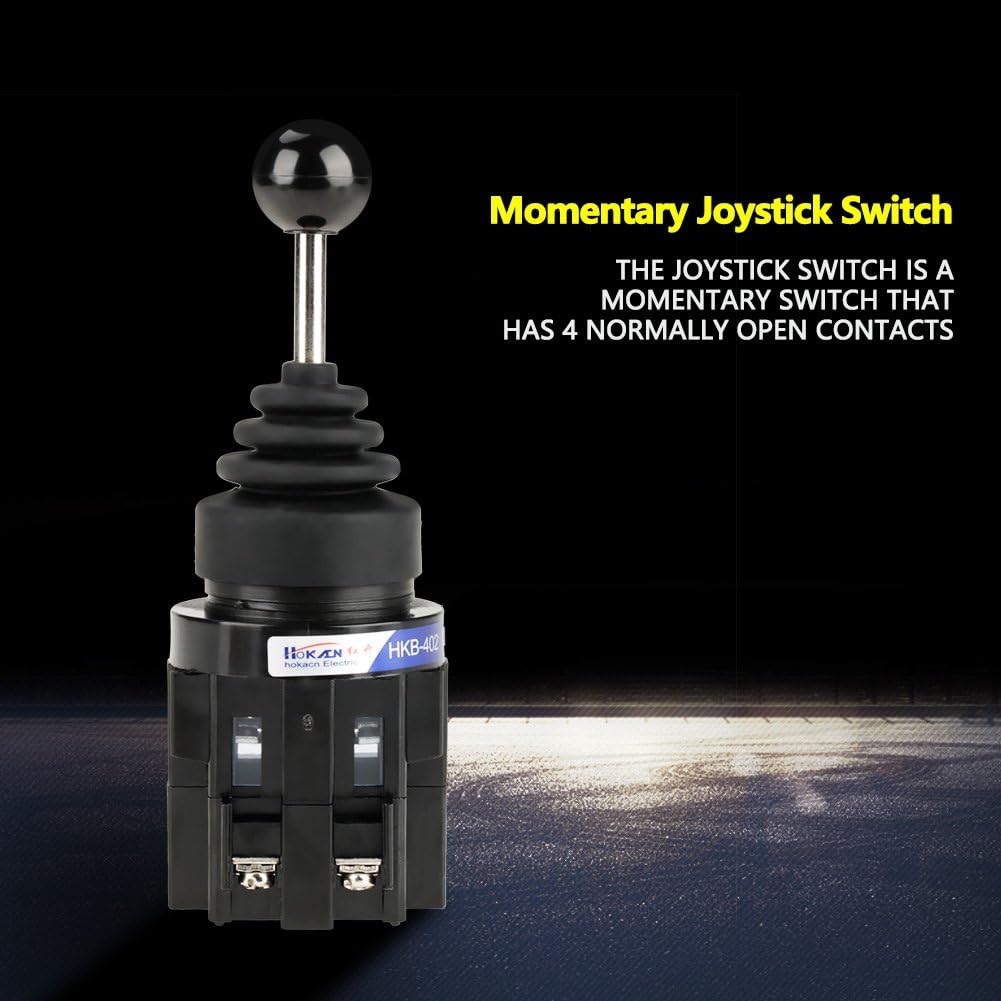

- ◇ 4 NORMALLY OPEN CONTACTS—The momentary joystick switch is a momentary switch that has 4 normally open contacts and will return to its original position once released
- ◇ PHYSICAL ADVANTAGES—Made of high quality material, the rubber sleeve cover on stick is of water resistance, oil resistance and dust resistance, with long service life
- ◇ LONG MECHANICAL LIFE—The momentary joystick switch is of more than 500,000 times mechanical life and over 500,000 times electrical life, durable and practical in daily usage
In stock
Additional information
| Weight | 0.1 kg |
|---|---|
| brand | YWBL-WH |
| dimensions | 5 x 7 x 8 cm; 100 Grams |
