Keenso- HUD short for head up display. The car HUD display displays driving datas on the front windshield, such as speed, RPM, fuel consumption, water temperature, voltage; avoiding drivers become dangerous because of watching the instrument while driving, making drivers can read the driving information instantly and can always keep the best state on the way with HUD. You are worth it!

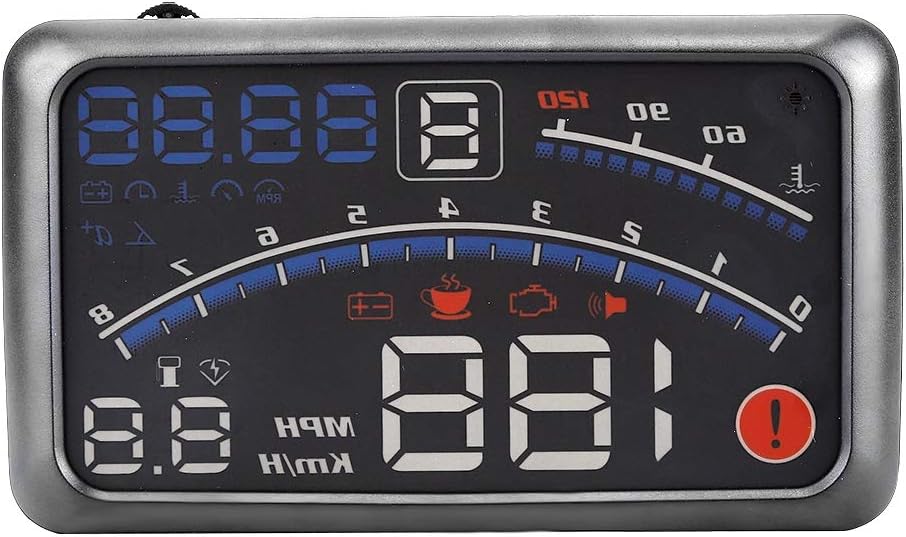

Main display information:
1htness sensor
2r temperature icon
3r temperature scale
4ne RPM scale
5 speed alarm
6 display
7i-function value
8 for engine RPM,inlet pressure,water temperature,clock,voltage,ignition angle,acceleration time for 100 Kilometers
9ttle position and fuel consumption
10i-function value
11er mark,engine fault,fatigue alarm,voltage alarm,data transfer
12d unit
13s and SMS alerts(this function is not opened now)
HUD installation:
1. Know your vehicle brand,HUD work for cars with OBDII agreement or EU OBD agreement. Open the engine hood and find the sticker below it (see the below picture 1), if it has words like OBDII CERTIFIED, then it can be installed.

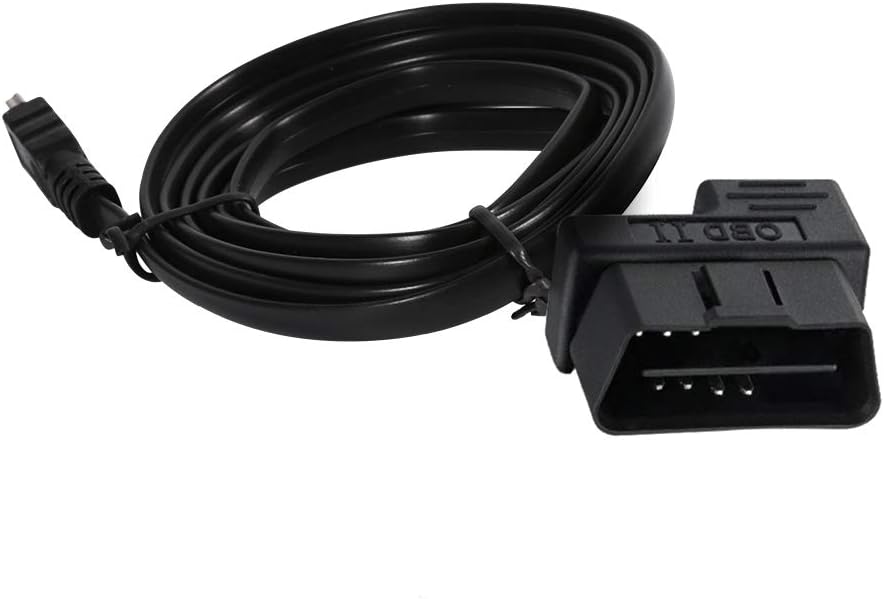

2. Find out the 16 pin diagnostic link (see the below picture 2) of the vehicle and connect it well with OBDII connecting line.
Specification:
Environment temperature: -40c- + 80c atmospheric pressure 86-106KPa
Relative Humidity: 10% -95% environmental noise <= 60dB (A)
Alarm sound level: "= 30dB (A)
Working voltage: 9V ~ 16Vdc (12Vdc / 400mA)
HUD size: 150*85*14(mm)
HUD Weight: 280g

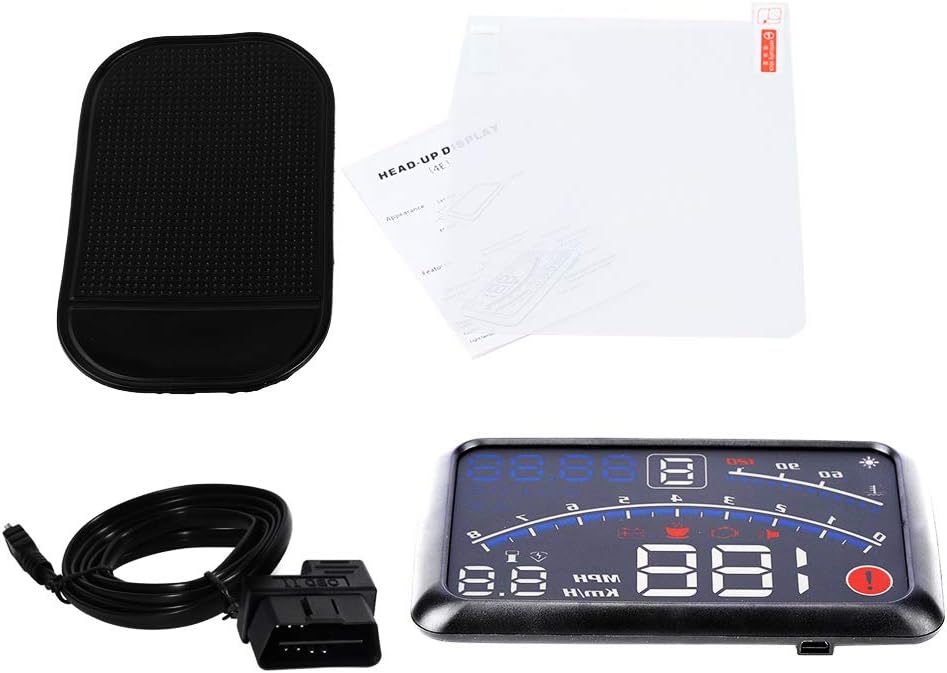

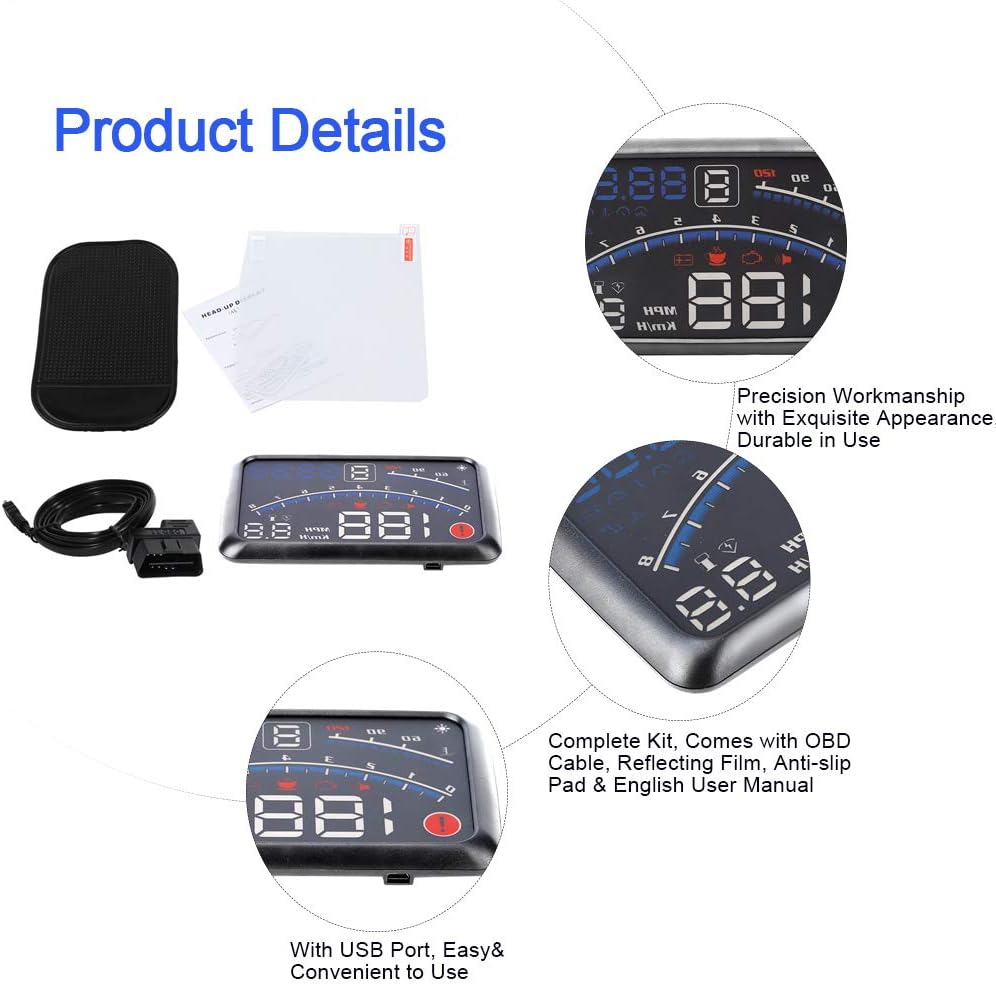

Package included:
1 x HUD
1 x OBD Cable
1 x Reflecting Film
1 x Anti-slip Pad
1 x English User Manual
