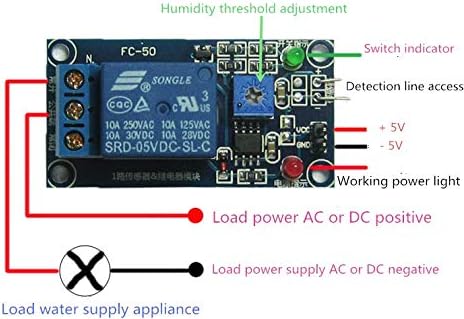

Specification: Adjust the humidity and threshold of the soil by the tensiometer. Automatically vegetable garden, flower garden can be sprayed, family pot soil moisture control. A wide variety of electronic tests can be used. Electrical parameters: Power supply voltage: 5VDC Input current: ? 100 ma Load: 250V 10A AC or DC30V 10A (current below this range can be used) Can withstand load of 1500W use: 1. The sensor is adapted to detect soil moisture. 2. Module’s blue potentiometer adjusts the humidity threshold of the soil, clockwise adjustment has high humidity and counterclock is slow. 3. With the time delay function, when adjusting the humidity value, each wait time of adjustment is about 5 to 8 seconds each time. Regarding the change of the relay, the green LED has a corresponding change and until to meet the requirements. Package Contents: 1 x Module

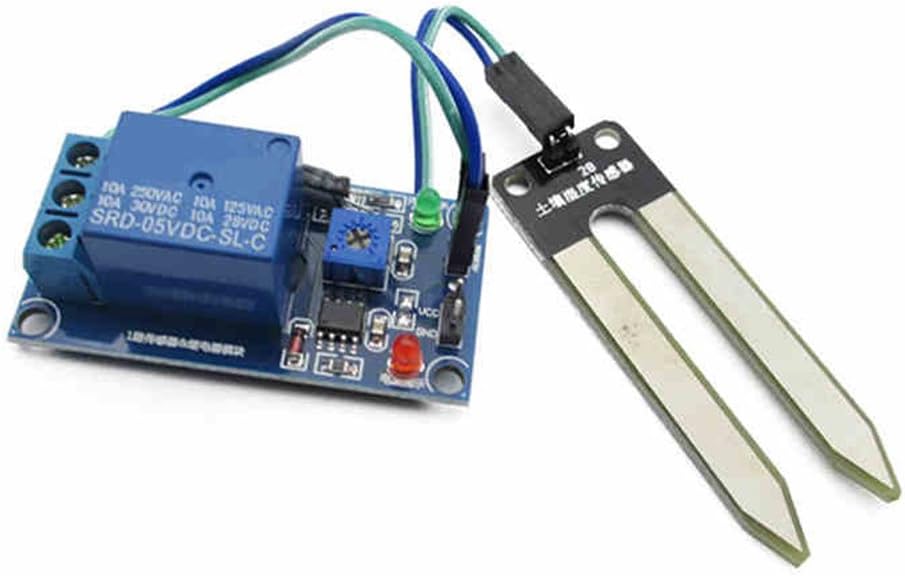

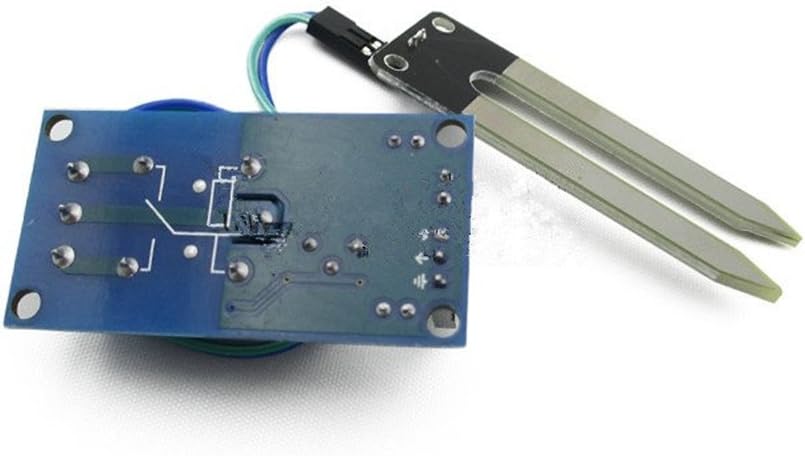

5V Soil Moisture Sensor Controller Module Detection Water Sensor Automatically Watering
$25.99
- Surface nickel,and expand the detection range. It can improve conductivity, preventing problems of rusting in contact with the soil, and prolongs the service life.
- It can be controlled the soil moistureover a wide range, and adjust the threshold value. If the humidity is low and the relay starts to inhale from the set value, if it is higher, the relay is turned off and changed.
- With a delay function, it is indicated as 3 to 5 seconds delay. When the humidity is detected as a critical state,the relay will not flicker, just strobe.
- Because the different production time, the color of appearance may be changed, but it does not affect functional use, please kindly understand it.
In stock
Additional information
| Weight | 0.02 kg |
|---|---|
| brand | LianShi |

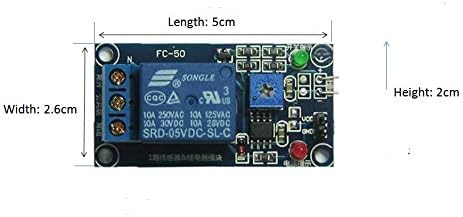

| dimensions | 10.8 x 6.6 x 2.2 cm; 20 Grams |
