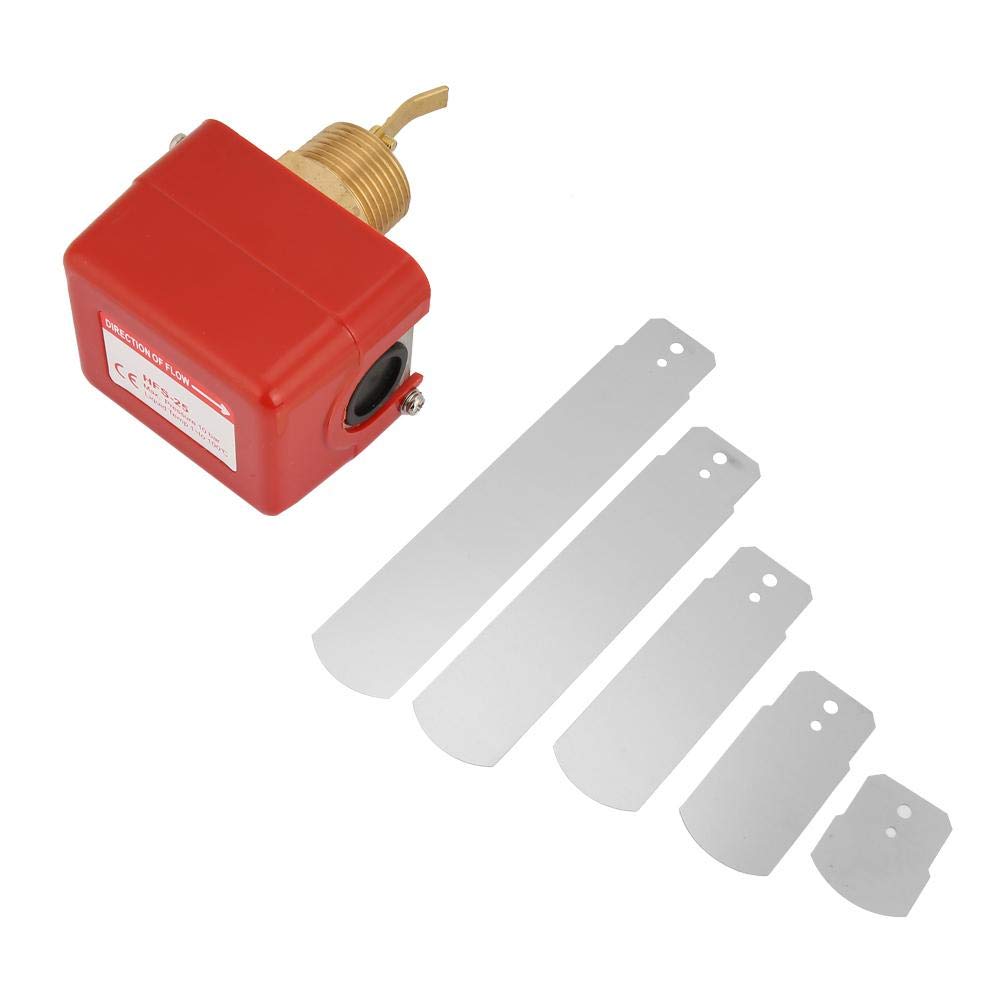

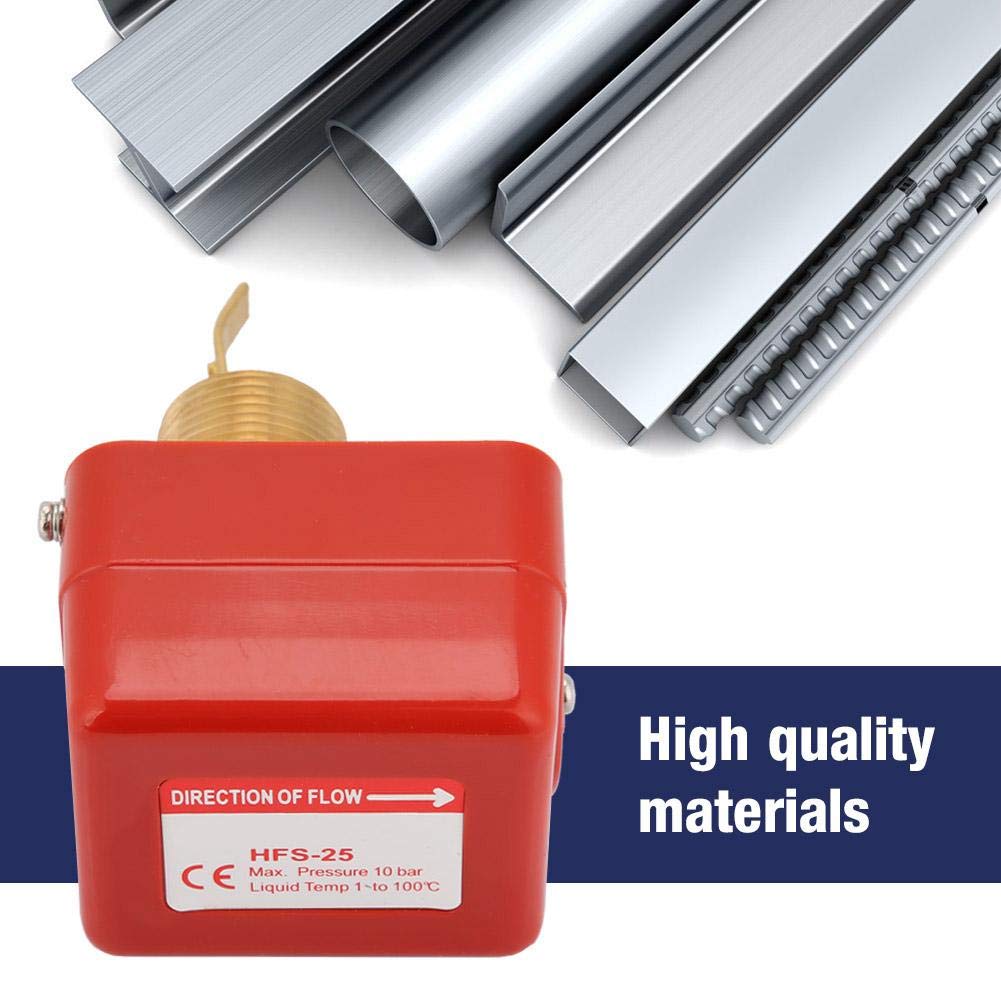

Specification: Model:HFS-25 Voltage:6-380V Control mode:Paddle Switch type:SPDT Material:304 stainless steel body, copper connector, phosphor bronze bellows Connector:1″/25mm Maxing pressure:1.0MPa Ambient temperature:0~60℃ Liquid temperature:-10~100℃(Fluid without icing) Contact life:1000000 times Microswitch Voltage:220VAC Microswitch Current:15A Weight: Approx.416g/14.7ozPackage List: 1×Water Flow Switch 5×Paddle 1×User manualInstallation method: 1 the flow switch 2 switch has been set at minimum flow rate. 3s the target to check whether the micro switch can work normally. 4r the installation, please press the lever of the flow switch several times to check. If there is no “click” sound, turn the adjusting screw counterclockwise until there is “click” sound. 5 adjustment screw of lacquer seal is only used for the first time to adjust the state of flow switch. 6rve three operating cycles to ensure that the switch and the system to which it is connected are operating properly and cover the switch enclosure promptly: 1 is absolutely forbidden to impact the wrench on the switch base plate, which will lead to the deformation and failure of the flow switch. 2 wiring or debugging,cut off the power supply. 3 wiring,it is absolutely forbidden to adjust any screws other than micro switch terminals and grounding screws connecting the wire carefully. 4ial grounding screws must be used for wiring, and installation screws cannot be removed. 5 blade of the flow switch cannot contact with the inner wall of the pipe and other throttles in the pipe, otherwise the switch cannot be reset normally.

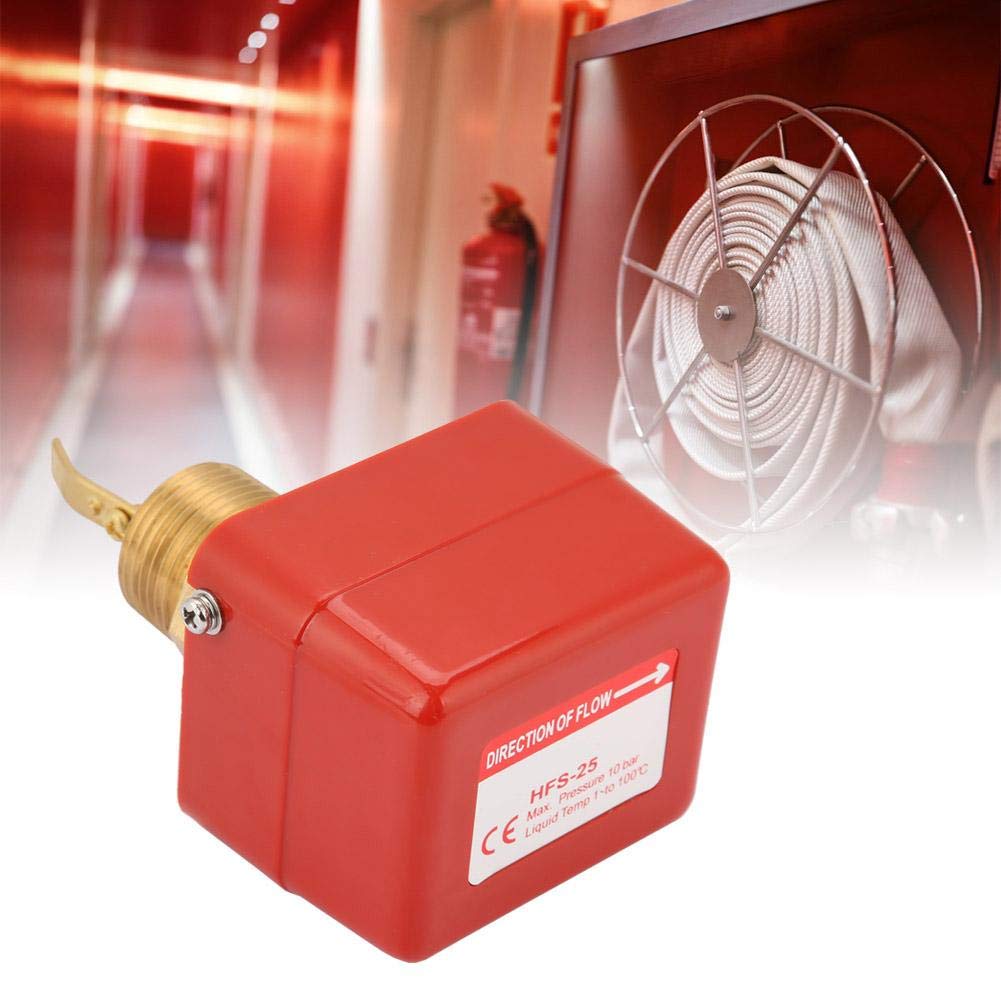

6-380V 1″ Paddle Control Water Flow Switch,Partial Stainless Steel Type Flow Switch 1.0MPa SPDT Contacts
$59.99
- Adjustable flow control value and stable action point. Protection class IP54, micro switch contact life up to 100,000 times.
- This product is used to measure the fluid dynamics of fluids passing through pipes such as water, ethylene diluents, glycols and other liquids that do not corrode copper.
- Water flow switch is suitable for water treatment systems, central air conditioning, water cooling equipment, fire protection systems and other fields.
- Flow switches are typically used in locations that require interlocking or “cut” protection.
- When the flow exceeds the set value, the fluid drives the blades and the microswitch, and the SPDT contact can connect the circuit and disconnect other circuits.
In stock
Additional information
| Weight | 0.42 kg |
|---|---|
| brand | YWBL-WH |
| dimensions | 8.5 x 6.2 x 12.5 cm; 420 Grams |
