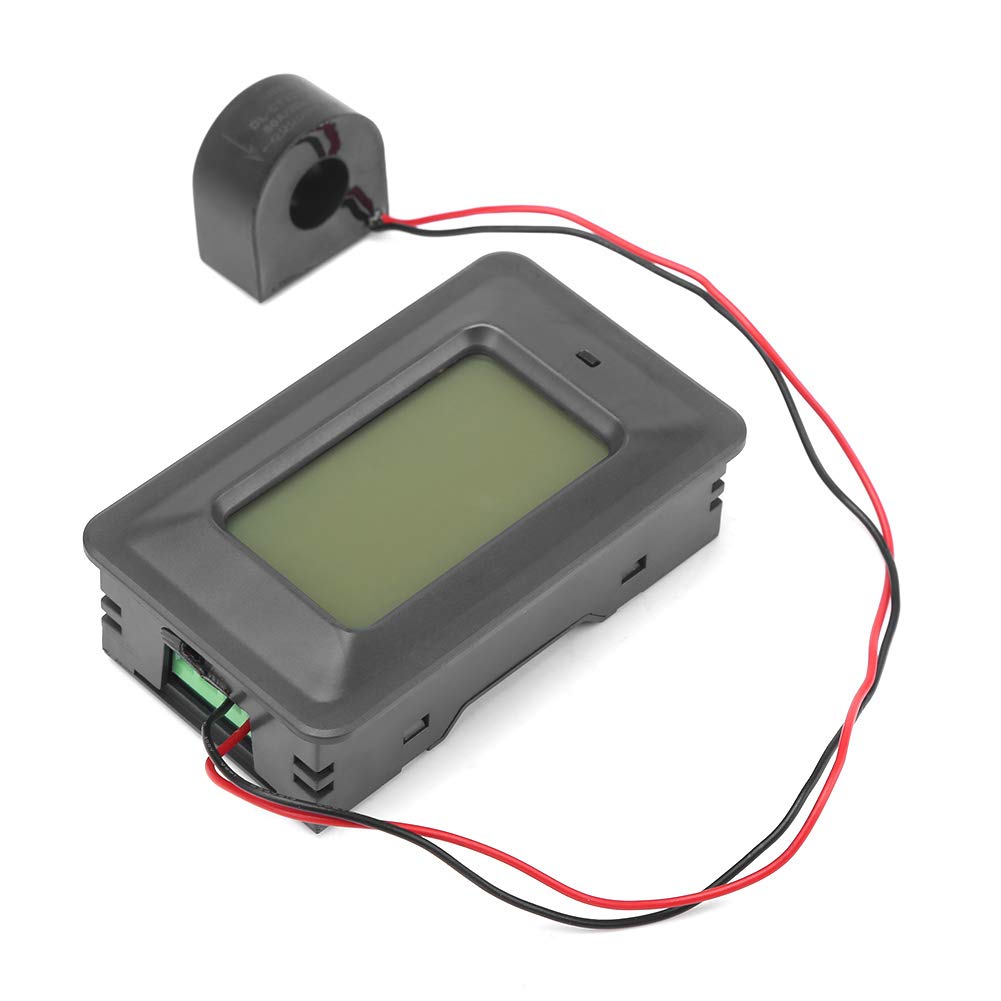

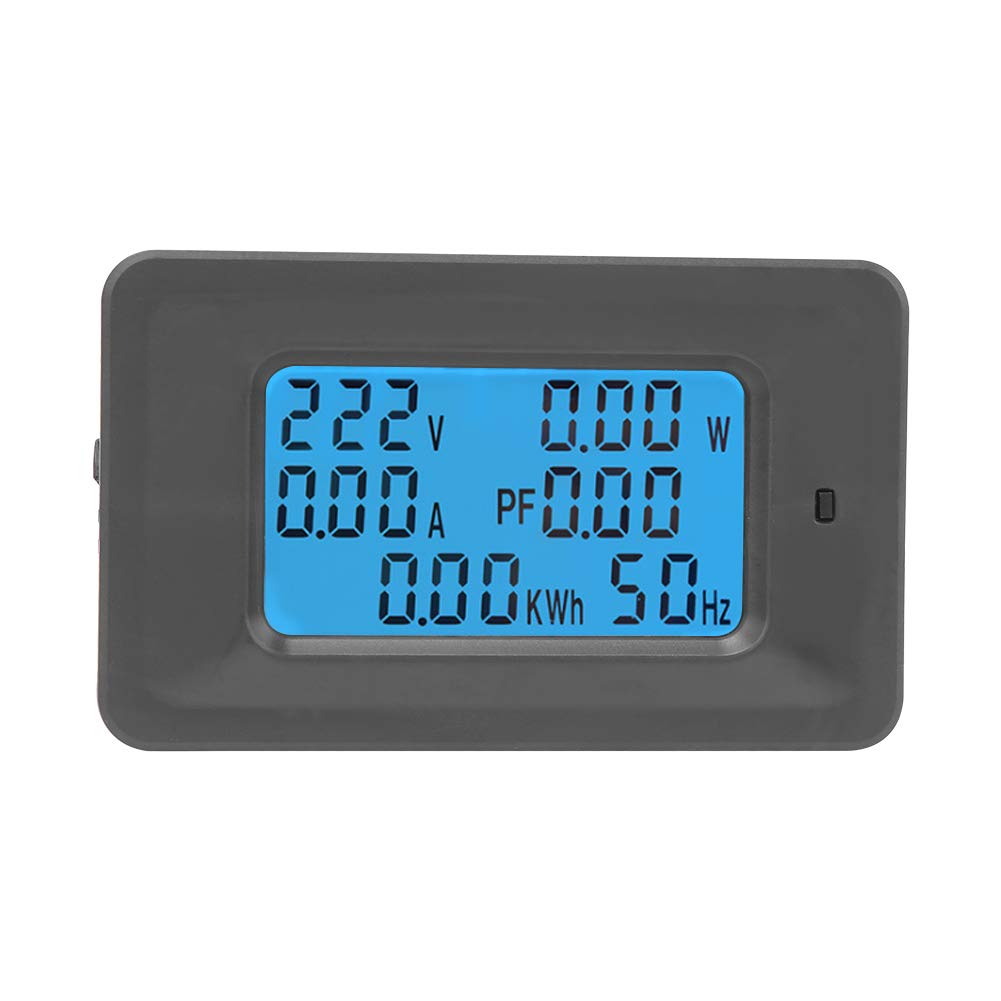

6 in 1 Digital LCD Display Meter Voltage 110V to 250V Current 100A Amperage Ammeter Voltmeter Multimeter Power Energy Monitor Panel with Mutual Inductor

Specifications: Model: P06S-100 Name: 6 in 1 Voltage Meter Max. Power: 22000W Rated Power: 22000W Standby Power: ＜1W Max. Current: 100A Rated Power: 100A Voltage: 110~250V Voltage Accuracy: ±1% Current Accuracy: ±2% Power Accuracy: ±2% Size: Approx. 90 x 55 x 26mm / 3.54 x 2.16 x 1.02inch Inner diameter of CT: Approx. 12.68mm / 0.5inch Quantity: 1pc Weight: 106gInstructions of Button: 1. Click button to turn on or off background light. 2 the button for 3 seconds to get overload power. 2.1 Go to the page of setting overload power(factory default is 4.4KW). 2.2 Flicker at highest position; click once to add 1; hold the button for 2 seconds for displacement; the maximum set value is 99.9KW. 2.3No operation on the button for 5 seconds, it will exit and save data. 3 the button for 5 seconds, the system will reset, accumulated electric quantity is cleared, and the overload power is reset to defaultions: 1 sum of load power of the electric appliance connected with the product should not exceed rated power, or the product will be damaged, even resulting in fires. 2 product doesn’t have waterproof function, so please use it under dry environment. Prevent splash water when using it near a bathroom, a kitchen, a fishbowl, etc. Keep it away from children and fire; do not plug any foreign matter rather than a wire in the connection hole; please fasten the screw. 3 not disassemble the product without permissionage Included: 1 x Voltage Meter 1 x Mutual Inductor (Other iems in the picture are NOT included)
