Imported precision components, conversion efficiency up to 96%, stable performance. Large input voltage, built-in overcurrent, over voltage, over temperature, short circuit and other automatic protection functions. Sealed with high quality heat conductive silicone, IP68 waterproof, dustproof, anti-shock. Die-cast aluminum housing, compact size, convenient to install. Quality assurance, service life up to 100,000 hours.
Specification:

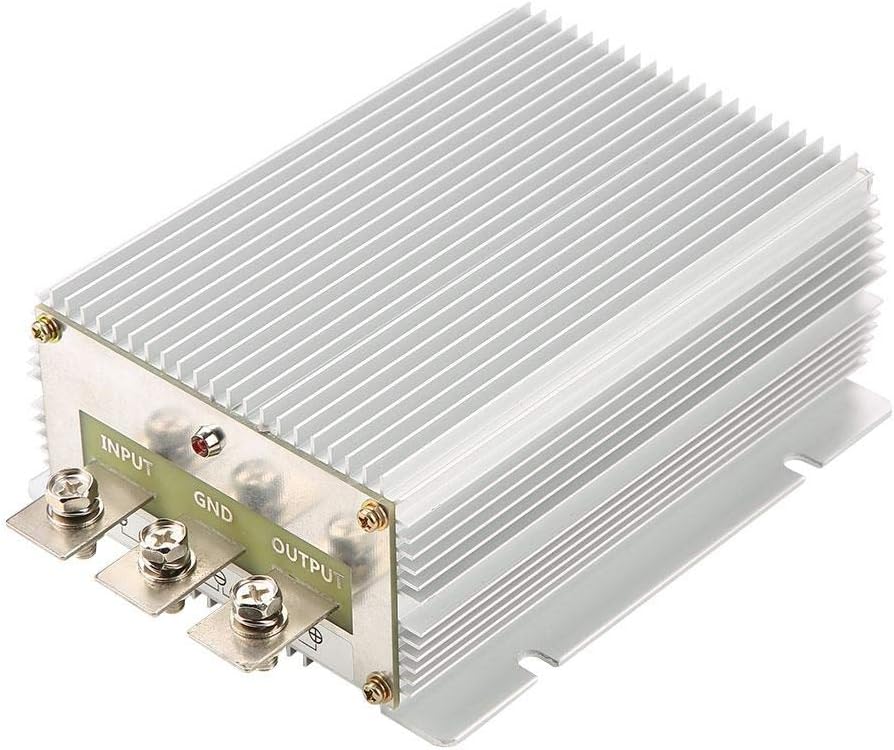

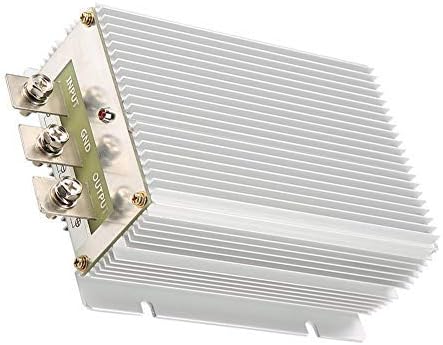

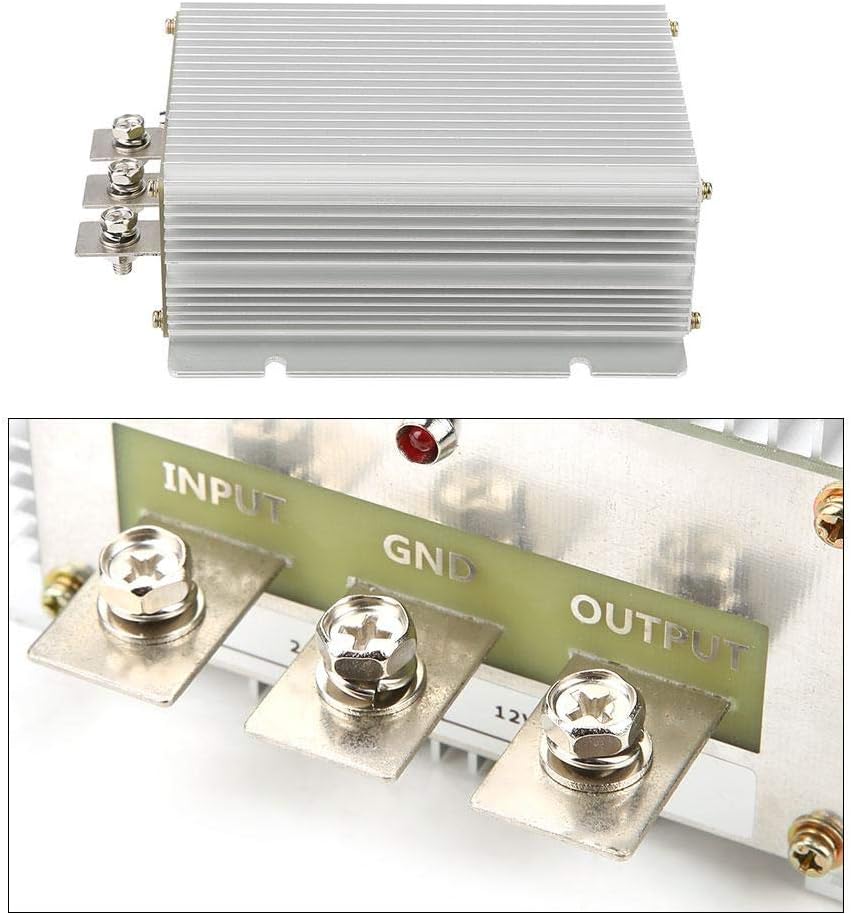

Model: WG-24S1260
Input voltage: DC 24 V.
Input voltage range: DC 18-36V.
Conversion efficiency: 96%.
Output voltage: 12 V.
Output current: 60 A.
Rated output power: 720 W.
Output peak power: 130%.
Voltage regulation ratio:
Load control ratio:
No load current:
Ripple:
Working temperature: -35 ~ 80 ℃.
Waterproof rating: IP68.
Item size: 150 x 127 x 63 mm / 5.9 x 5 x 2.5 inches.
Package weight: approx. 1490 g / 52.5 oz.
Package contents:
1 x DC DC converter power supply.
Note:
1. Due to the difference between monitors and light effects, the pictures may not reflect the actual colour of the item.
