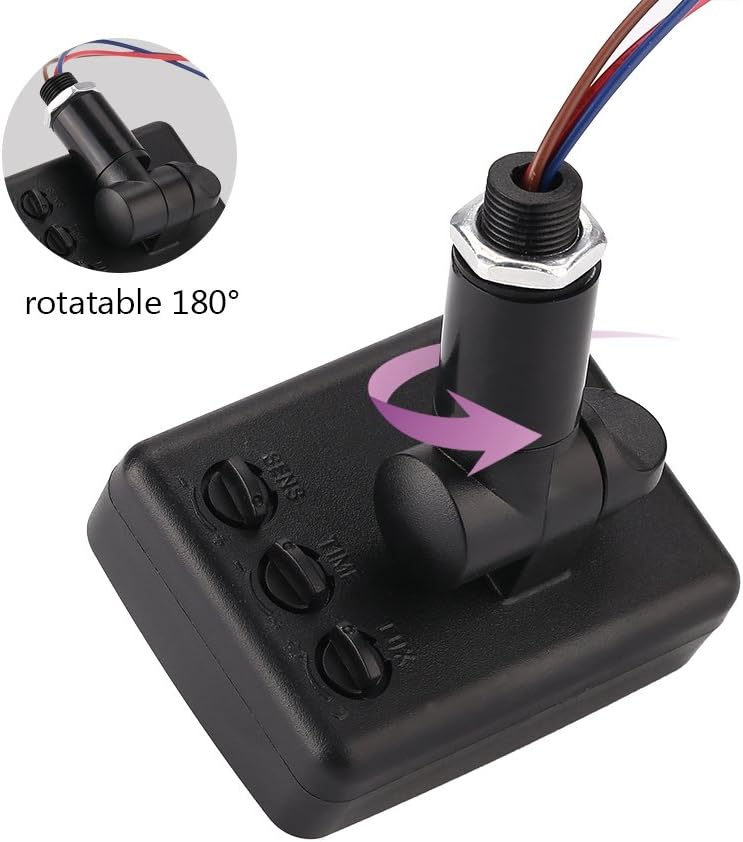

Specifications: Condition: 100% Brand New Material: ABS Plastic Sensing Angle: 180° Voltage: AC 90-250V Sensing Distance: 6~8m(19.68~26.24ft)(25℃） Delay Time: 8s~6mins(Adjustable) Environmental Lux: 2~2000lux(Adjustable) Operating Temperature: -10℃~+40℃ Humidity: ＜93% RH Installation Height: 1.8~2.5m Installation Mode: Opening Hole(12mm) Size: Approx. 9*7*6.5cm/3.54*2.76*2.56in Weight: Approx. 59g Wire Connection: N-Blue(Connect Neutral Line) L-Brown(Connect Live Line) Output-Red(Sensor Output Line) Red and brown line for input power Blue and red connect load(lamp) Package Included: 1 * Automatic PIR Motion Sensor SwitchHow to Adjust:LUX (Regulate the day or night operating mode) A. When rotated to the sun icon, it will operate in a whole day. B. When rotated to the moon icon, it will operate only in night time Used to regulate the sensor delay time(8±2sec~6±1min) The delay time refers to the lighting time after you leaving the sensing area It is used to adjust the sensor’s sensitivity and there is no need to regulate in common circumstance.

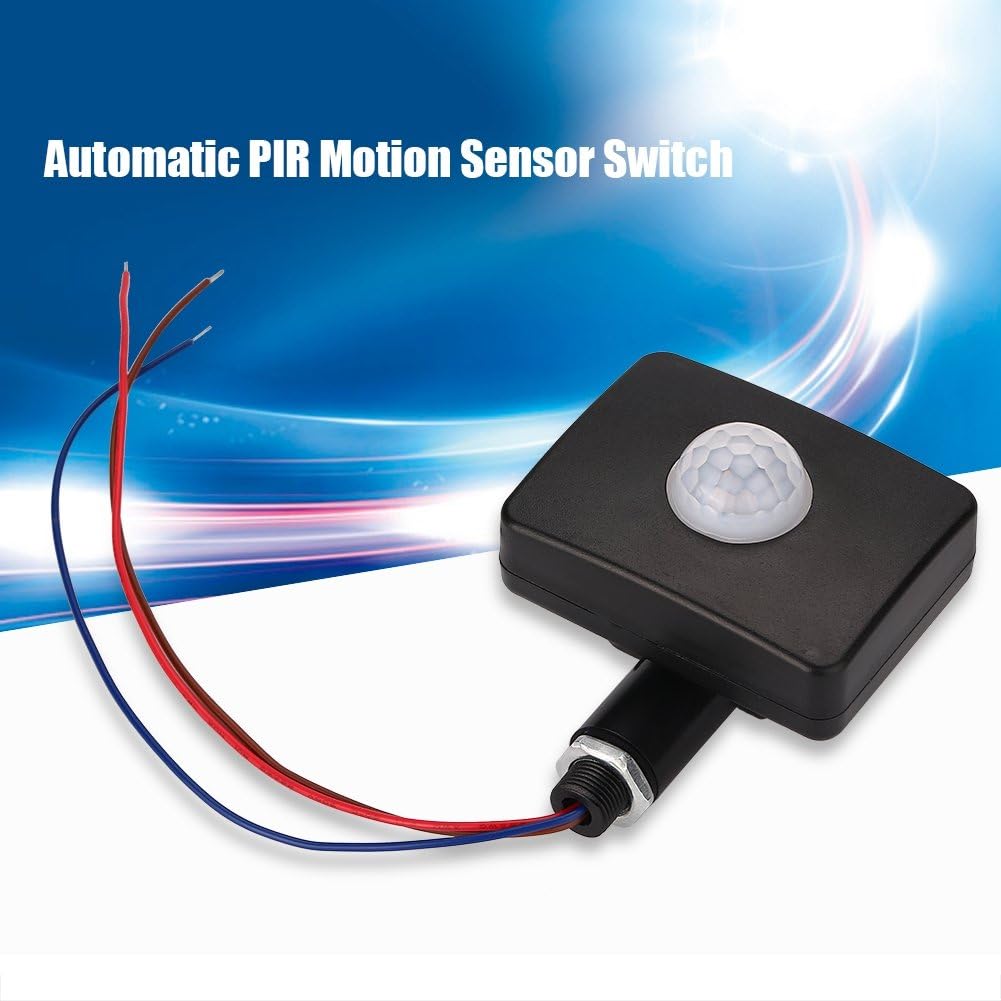

90~250V PIR Body Motion Infrared Sensor Light Bulb Switch 180 Degree Rotatable Automatic On/Off Intelligent Switch for Home Garden Lamp
$53.99

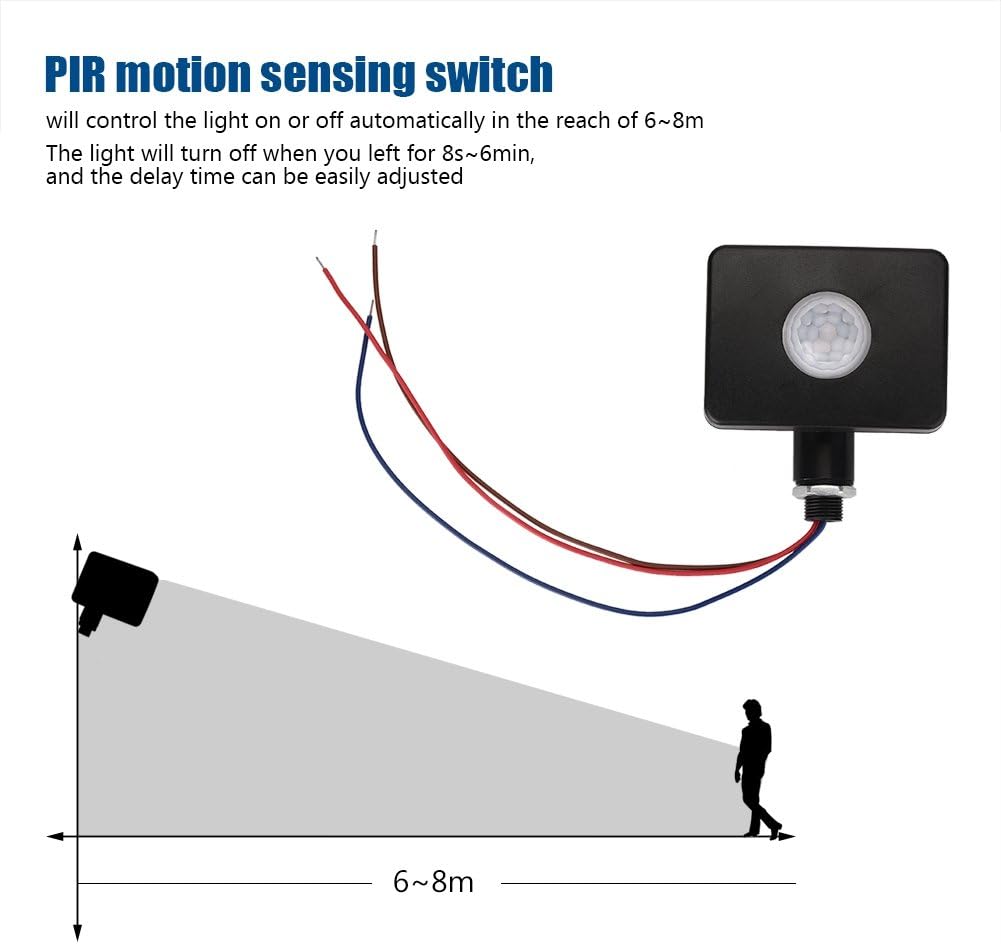

- PIR Motion Sensor–PIR motion sensing switch will control the light on or off automatically in the reach of 6~8m so that when you enter the sensing area, the light will turn on and it will turn off after your leaving.
- Adjustable Delay Time–This is a brand new and high quality automatic infrared PIR motion sensor switch. The light will turn off when you left for 8s~6min, and the delay time can be easily adjusted.
- 2 Modes Shift–It can shift between the whole day operating mode and only night time operating mode.
- Easy to Install–It’s easy to install and simple to use. You can use it garden, home, corridor, washroom, garage, etc.
- Widely Used–Widely used to control project light, flooding lamp, energy saving lamp, LED light, etc.
In stock
