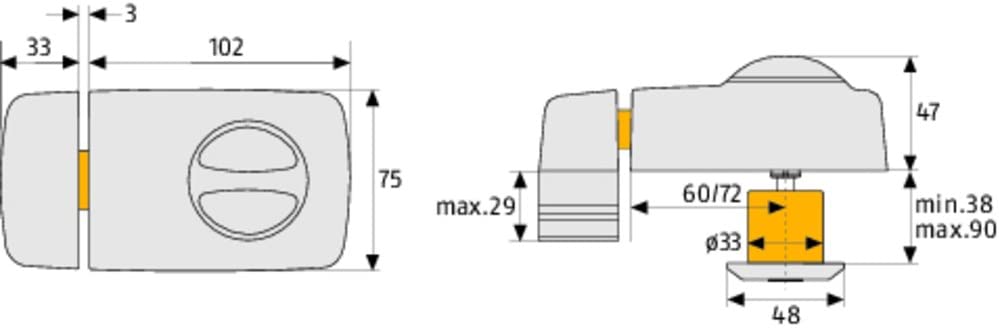

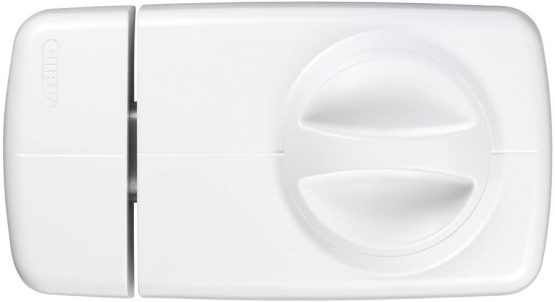

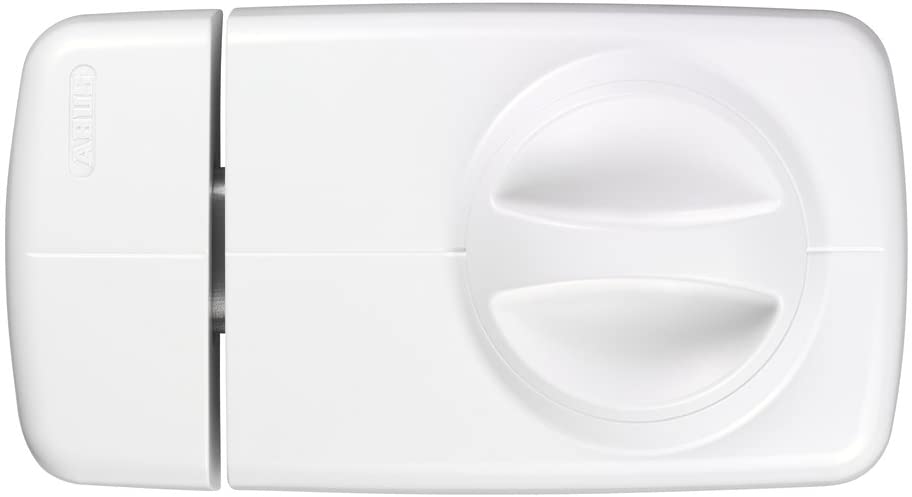

Elegant additional door lock 7010 W B/SB – bringing more security to your house/apartment doorFor entrance doors or front doors to secure the closing side. Possible use The additional door lock 7010 is suitable for inward opening rebated and flush doors, hinged DIN right or DIN left for fold thickness of 0-29 mm and door thickness of 38-90 mm. The backset can be 60 or 72 mm. The factory setting is the 72 mm setting and DIN right. In stable doors, the mounting position is either below or above the mortise. In less stable doors or with increased safety requirements, the installation of 2 units is recommended. There is then one sub-mounted and one mounted above the mortise. Please make sure that a comfortable operation is possible. Technology and Operation The pressure resistance of the additional door lock 7010 is more than 1 tonne. A two-turn closing stable oval bar of solid steel assures optimal locking. It is operated from outside by key, inside by knob. For total lock, close from the outside in two full turns, and from inside in one full turn. Your additional door lock 7010 is maintenance free and should not be cleaned with any aggressive cleaning agents. Design The lock box and lock case are plastic. The delivery comes complete with an EC550-cylinder in nickel pearl (with a high quality, dull nickel-plated surface), including three reversible keys. Door security The front door is often next to windows and patio doors – a popular entry path for thieves and burglars. Almost all doors can be secured with intrusion-resistant elements, so you do not have to directly install a front door. The additional door lock 7010 is classified in Level 9 of the ABUS Global Protection Standard. SpecificationsWidth lock box: 3.3 cmWidth: 10.2 cmColour: whiteHousing: PlasticHeight: 7.5 cmh: 4.7 cm.
