Use and application The floating glass break detector GBM7300 can optionally be connected to the ABUS window handles with alarm FG300A and Privest- and Secvest- radio opening detector. Technology: maximum switching voltage 15V DC, maximum switching current 15mAno power supply requiredTemperature range from -15°C to +50°CmblyThe detector is glued either with a double-sided foil or with a two-component adhesive (suitable for glass and metal) to the previously cleaned glass sheet. The end of the cable is connected according to installation instructions with the alarm window handle or the radio opening detector. Installation using standard double-sided tape or silicone is not possible as this would dampen vibrations and interfere with optimum transmission to the piezo-detector Colourwhite.

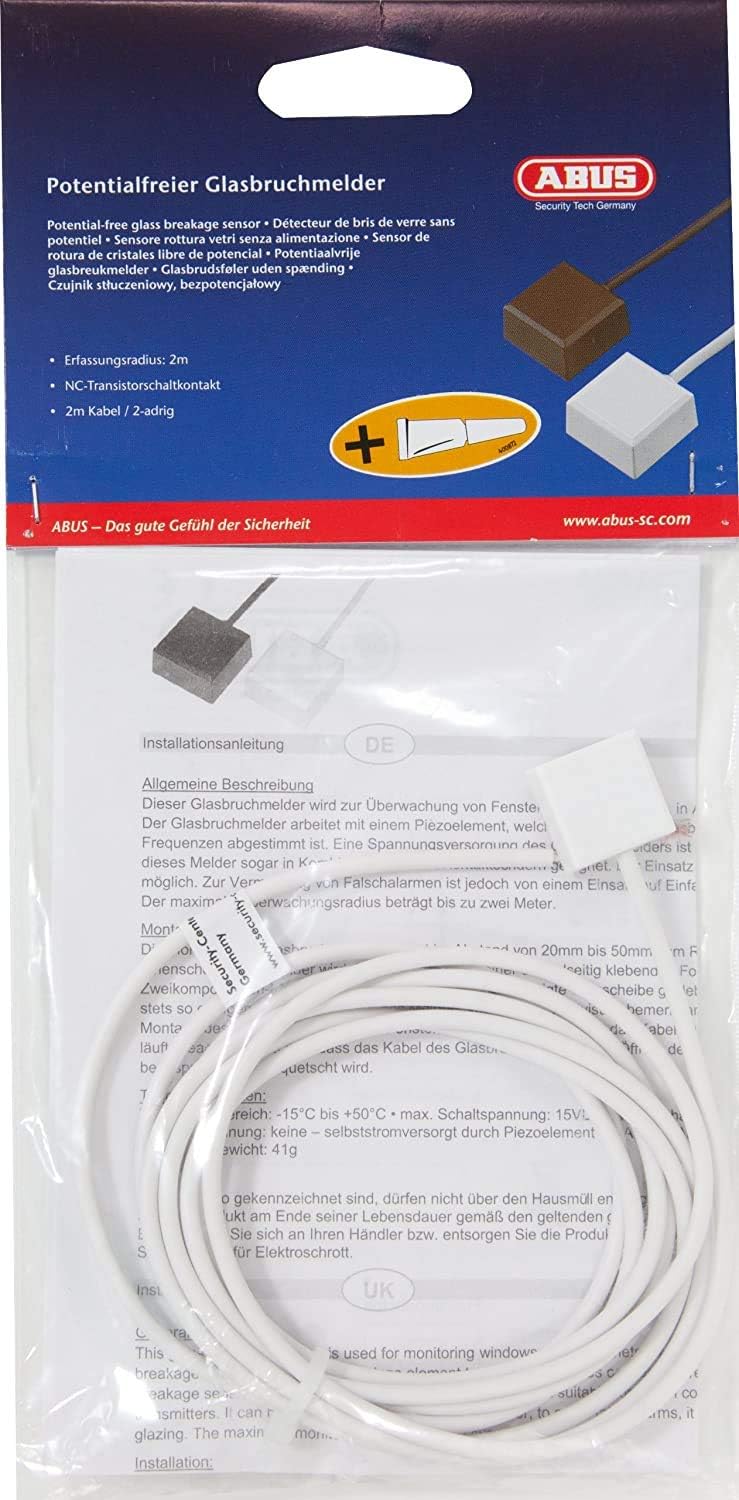

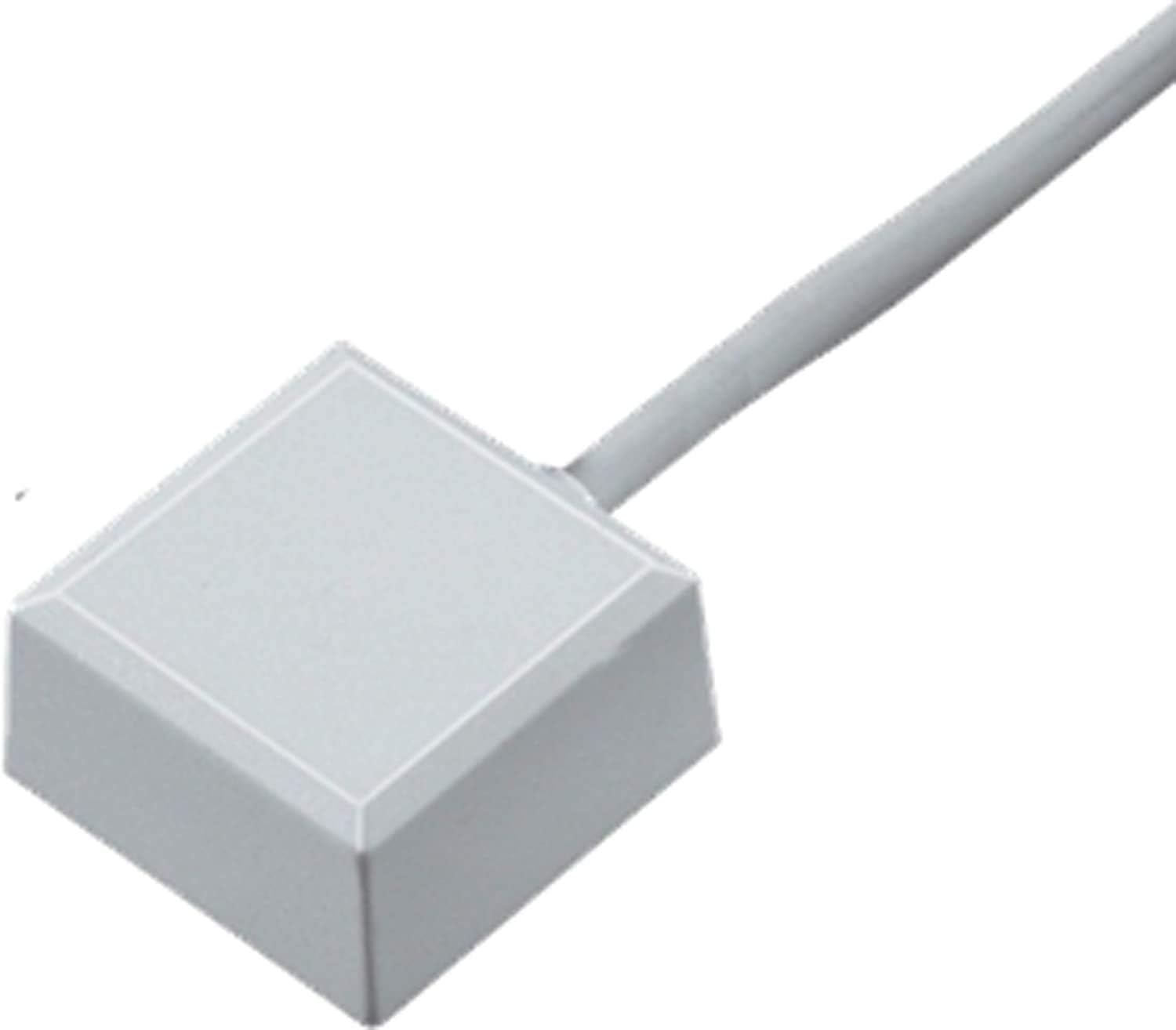

ABUS 569852 GBM7300 W SB Potential-Free Glass Breakage Sensor
$43.99
- Piezo component of the detector is tuned to the frequencies produced during glass breakage
- Suitable for radio contact transmitter, since no power is required for the glass break detector
- It is easy to mount the detector on the inner pane with the attached super glue
- Colour: white
In stock
Additional information
| Weight | 0.08 kg |
|---|---|
| brand | ABUS |
| dimensions | 16.5 x 11.5 x 2 cm; 80 Grams |
