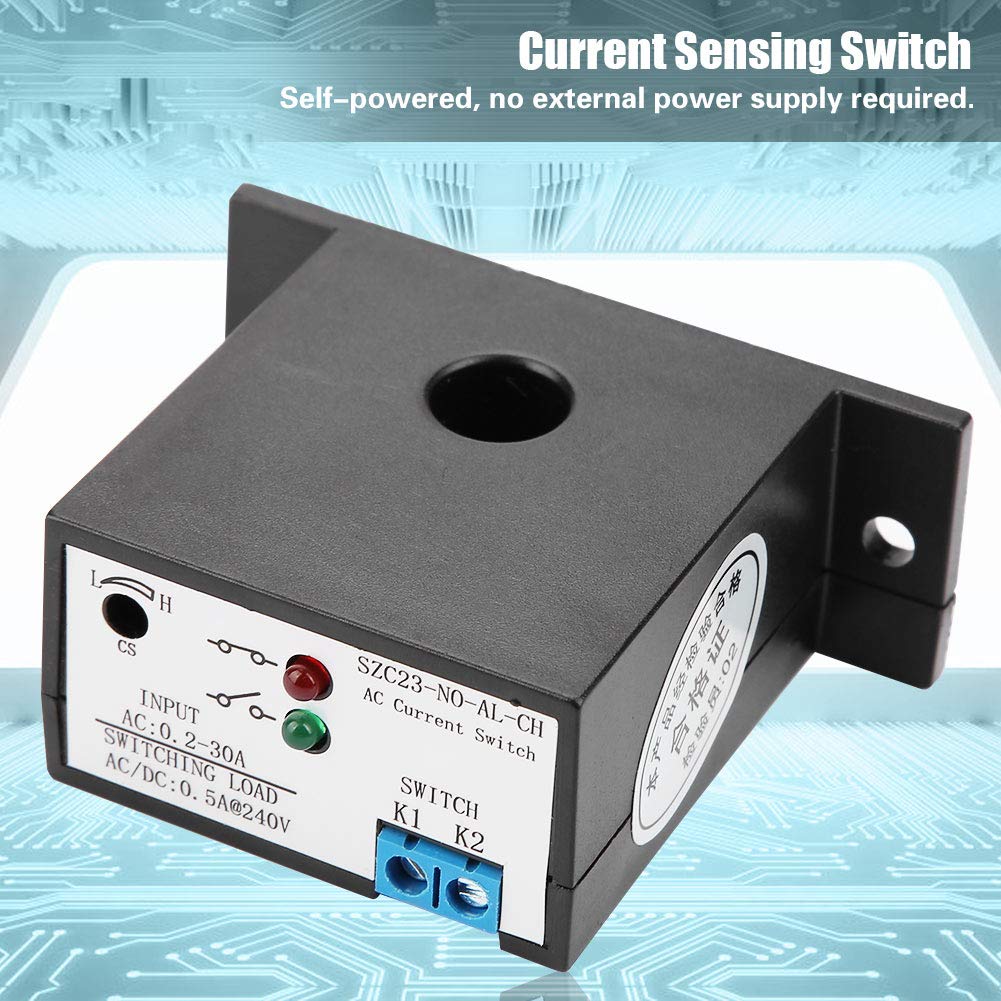

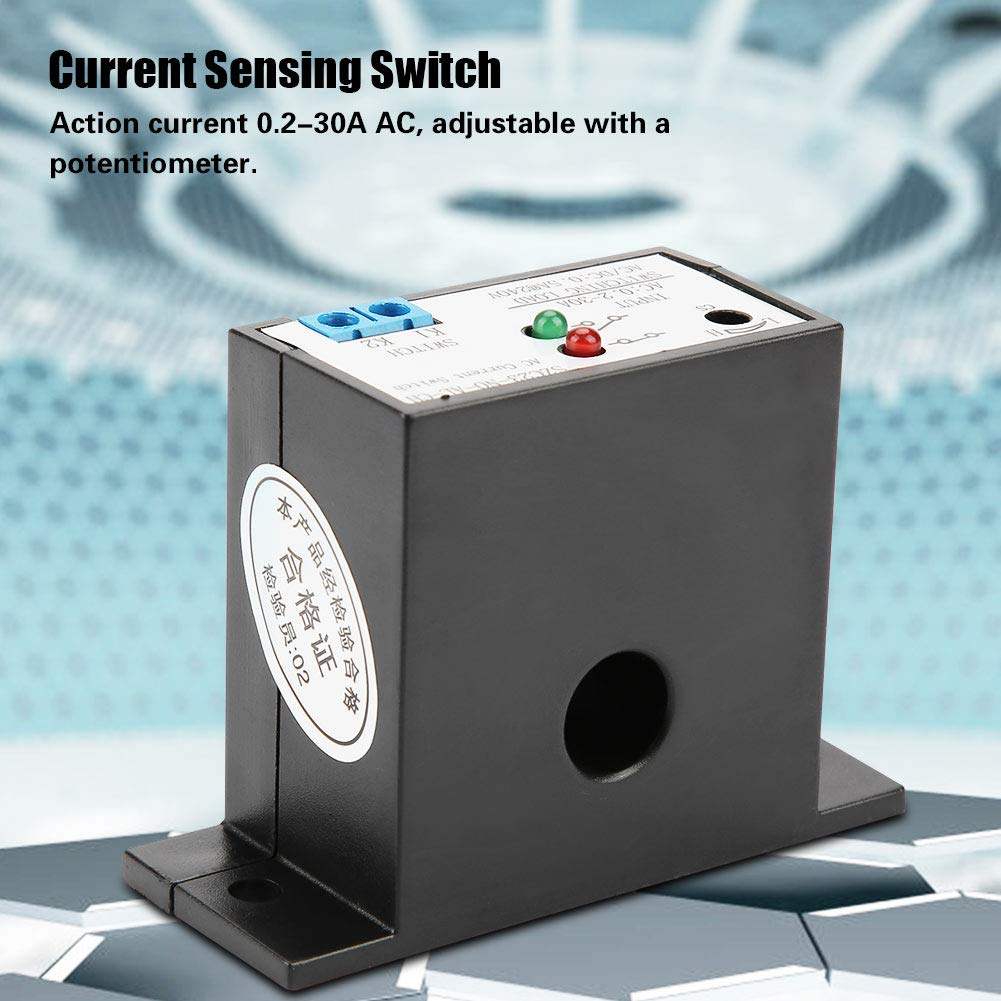

Features: 1. Self-powered, no external power supply required. 2. Action current 0.2-30A AC, adjustable with a potentiometer. 3. LED indicator can conveniently and intuitively indicate the working status of the switch. 4. High-power MOS tube contactless electronic switch. 5. The switch has no limit on the number of opening and closing, and the reaction speed reaches the ms level. 6. Straight-through structure design, isolation withstand voltage up to 2000V. 7. Hysteresis is less than 1% and can be used under strong magnetic conditions. 8. The outer casing is made of self-extinguishing material ABS. 9. Suitable for AC current measurement and monitoring, AC motor overload protection, electronic switch of automatic control system and so onification: Model: SZC23-NO-AL-CH Power supply: Not required Rated load: ≤ 0.5A@240V AC/DC Input current: 0.2-30A AC Switch on minimum: 0.5±0.2A Maximum overload: 100% Leakage current: ≤0.1A Accuracy: 1% Hysteresis: ≤1% Response time: ≤200ms Repeatability: 100% Working temperature: -20~60℃ Waterproof: IP30 Dimensions: 65*25*47mm / 2.56*0.98*1.85in Hole diameter: 10mm / 0.4in Package weight: Approx. 56g/2.0ozPackage list: 1 * Current Sensing SwitchNote: 1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item. 2. Please allow slight error due to manual measurement. Thanks for your understanding.

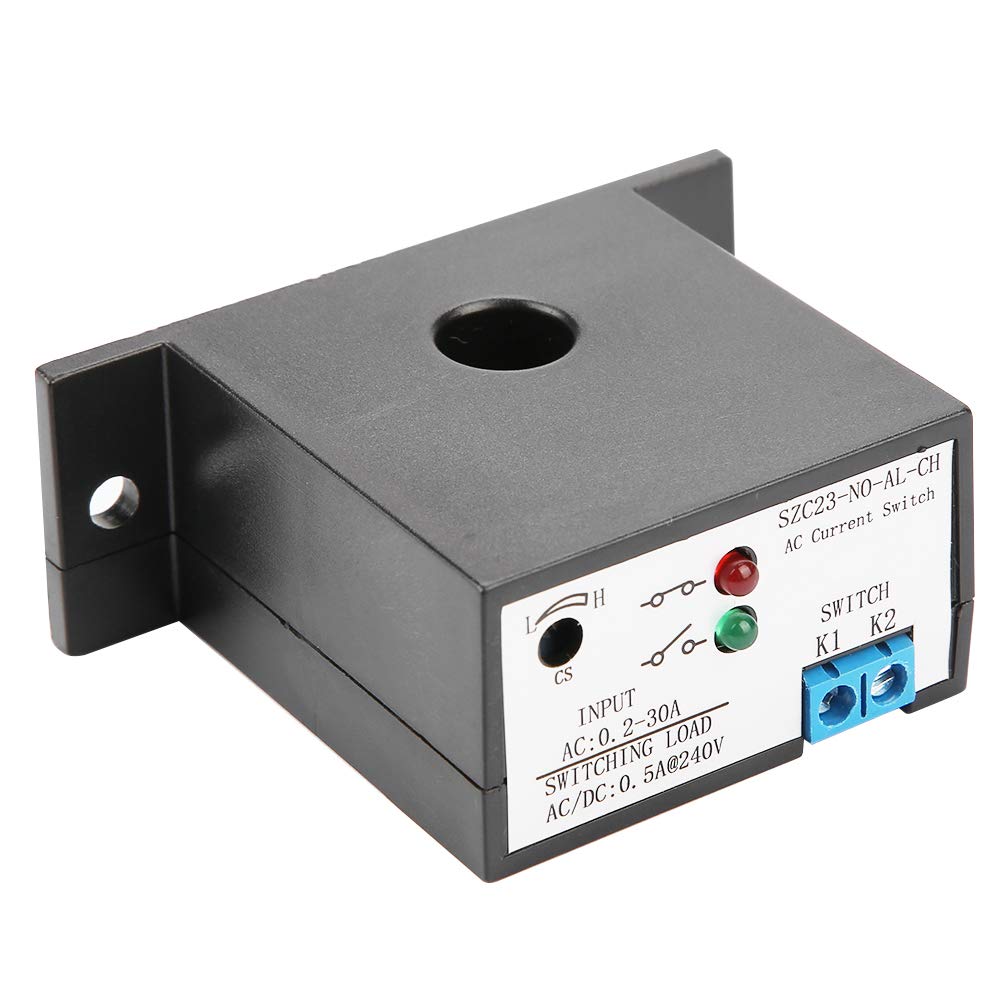

AC 0.2-30A Current Switch, SZC23-NO-AL-CH Adjustable LED Indicator Current Sensing Switch,Reaction Speed MS Level for AC Current Measurement and Monitoring,Normally Open
$45.99
- ★★★★★【SPECIFICATION】❶Model: SZC23-NO-AL-CH❷ Power supply: No ❸ rated load: ≤0.5A@240VAC /DC❹ Input current: 0.2-30AAC❺Minimum opening: 0.5±0.2A❻Maximum overload: 100%❼ leakage current: ≤0.1A❽ accuracy: 1%❾ hysteresis: ≤1%
- ★★★★★【EASY TO USE】-0.2-30A AC operating current, adjustable by potentiometer, LED indicator can conveniently and intuitively indicate the working status of the switch.
- ★★★★★【CURRENT SENSING RELAY】-High-power MOS tube non-contact electronic switch, the opening and closing of the switch is not limited, and the response speed reaches the ms level.
- ★★★★★ 【STRAIGHT-THROUGH STRUCTURE DESIGN】-Direct structure design, insulation resistance voltage up to 2000V, hysteresis less than 1%, can be used under strong magnetic conditions, the shell is made of ABS self-extinguishing material.
- ★★★★★【APPLICATION】-Suitable for AC current measurement and monitoring, AC motor overload protection, automatic control system electronic switches, etc., such as flashlights, buzzers, relays, single-chip computers and other charging equipment.
In stock
Additional information
| Weight | 0.12 kg |
|---|---|
| brand | Jectse |
| dimensions | 6.5 x 5 x 2.5 cm; 60 Grams |
