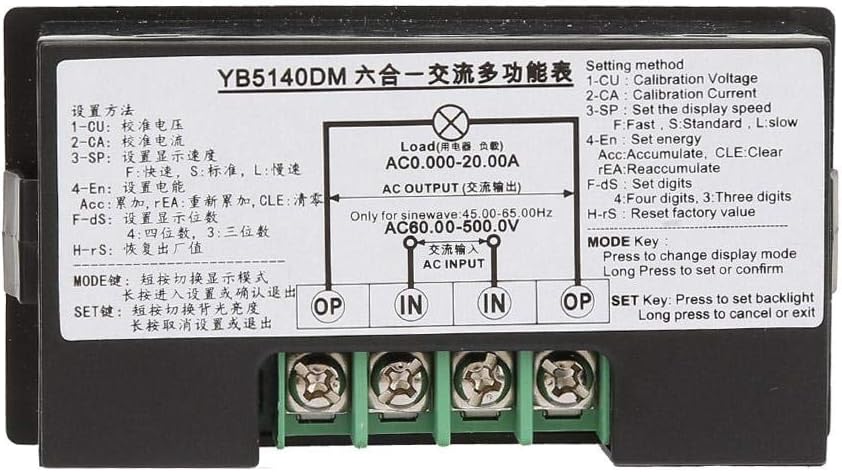

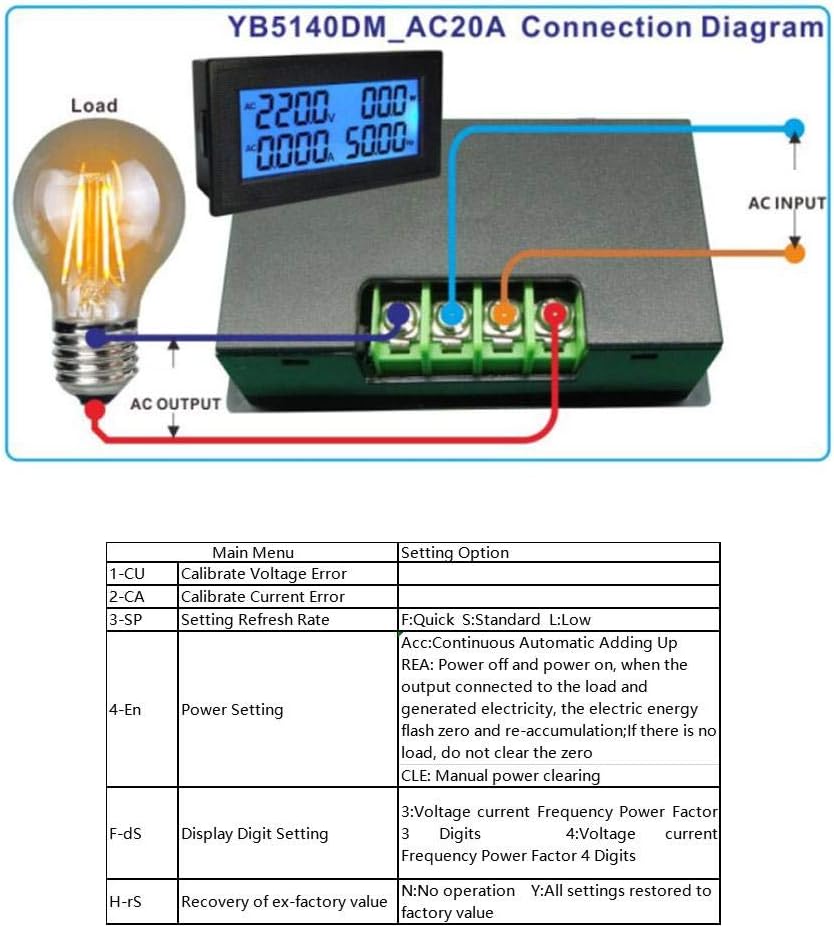

Specifications: Rotation temperature: -10 ~ 50 ℃ Working humidity: 10 ~ 80% Working air pressure: 80 ~ 106 kPa No direct sunlight Package list: 1 * multifunction meter Note: 1 different computers display colors differently, the color of the actual item may vary slightly from the above images. 2 two middle terminals are the input and the left and right terminals are the output. 3. Do not use when there is high frequency voltage.
AC 0 ~ 20A Voltmeter Digital Display 60 ~ 500V Multifunctional Current Meter Supply Voltage
₹4,351
- Measurement of electrical parameters: AC voltage, current, active power, frequency, power factor, electrical energy: 6 in 1
- Display type: LCD screen, blue back;single-screen multiple display, “7 kinds of display modes” is optional Blue adjustable backlight brightness: strong light, low light, not bright.
- Automatic calibration: The embedded button on the watch head is used to calibrate voltage, current error and other options. The update speed of display value is optional: fast, standard, slow, suitable for different working environment.
- The accuracy of the display can be adjusted: 3 bits, 4 bits;Applicable to different requirements, data storage function at shutdown. AC voltage, current, power and electrical energy are all designed by automatic decimal point shift.
- Simple connection of the instrument: no need to connect the power supplyent tests do not require any additional purchase of transformer or shunt. Instrument with back cover, safer to use, more convenient, more secure.
In stock
Additional information
| Weight | 0.05 kg |
|---|---|
| brand | SEAFRONT |
| dimensions | 7.8 x 4.1 x 2.6 cm; 60 Grams |
