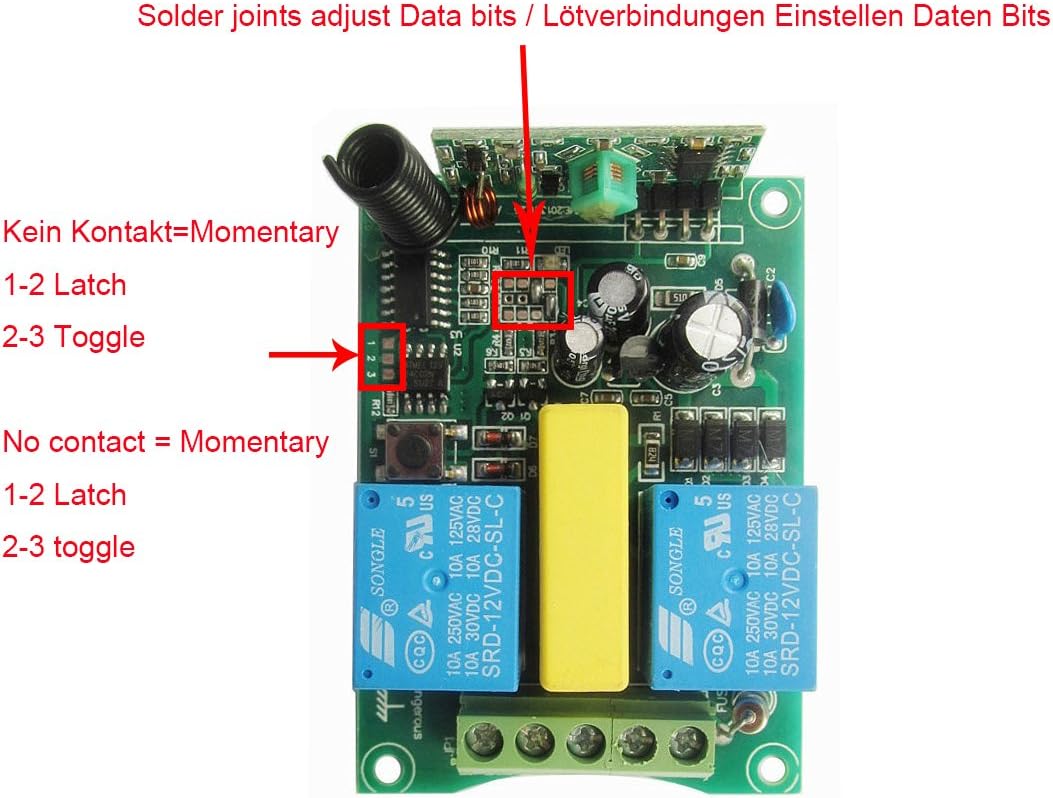

Delivery 1 x receiver with housing. 3 x remote control with battery (if you need extra remote control, please tell us). Parameters: Range: 50 m. Operating temperature: -10 °C to +70 °C. Operating voltage: 220 V. Maximum operating current: 10 A. Operating frequency: 433 MHz. Maximum load: 1000 W. Coding type: learning code. Control mode description: Toggle (1 button on/same button off). Latch (1 button on/another button off). Momentary (button function, relay attracts as long as a button pressed). Set control mode by soldering No contact = momentary. 1-2 latch. 2-3 toggles. Learning method: Press and hold the learning button for two seconds, and the light turns off, then press any button of the remote control, and light from the remote control flashes, it means that learning is successful.

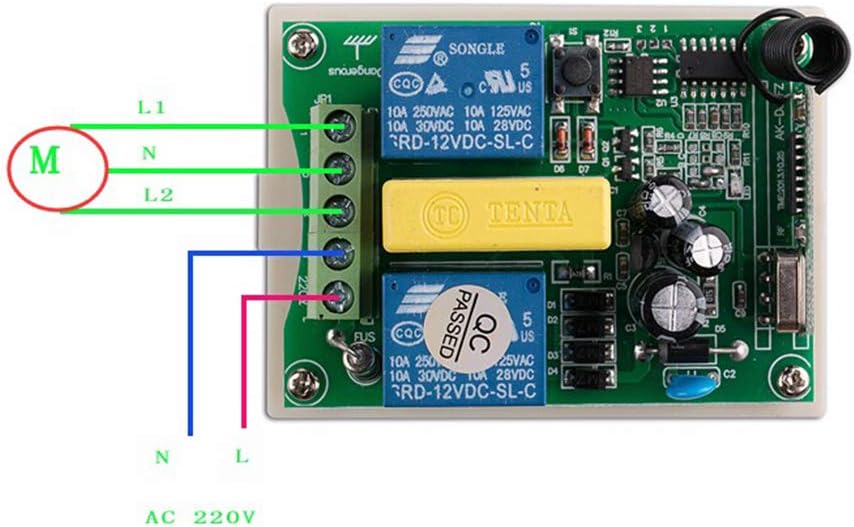

AC 220VAC RF 2 Channel Wireless Remote Control 1 x Receiver + 3 x Transmitter Hose Motor Garage Door Projection Screen Winch 3 Button Forward and Reverse Control of the Motor
$107.99
- Application: The wireless switch controls electrical appliances, such as heaters, ventilations, air conditioners, pumps, barriers, lighting, multi-channel electric doors and windows, ordinary electronic locking, switches, electric garage door, windows, lifting tools, industrial automation and control, all kinds of anti-theft alarm, security and other areas and radio display devices.
- Wireless control, easy to install. With learning button, you can easily delete or learn the code.
- The maximum power is up to 10A. You could switch the receiver on/off with transmitter (remote control) from any location within a reliable distance. The wireless radio signals can run through walls, floors and doors.
- Reliable control: the transmitter (encoding) and the receiver (decoding) use an 8-bit code. One/multiple transmitters can control one/multiple receivers simultaneously. If you use two or more receivers in the same place, you can set them with different codes.
- Range is approx. 20 – 50 m (maximum range of the sensor/signal under optimal conditions, or in open field/with free sight).
In stock
Additional information
| Weight | 0.18 kg |
|---|---|
| brand | Einaus |
| dimensions | 14.99 x 10.16 x 4.06 cm; 180 Grams |
