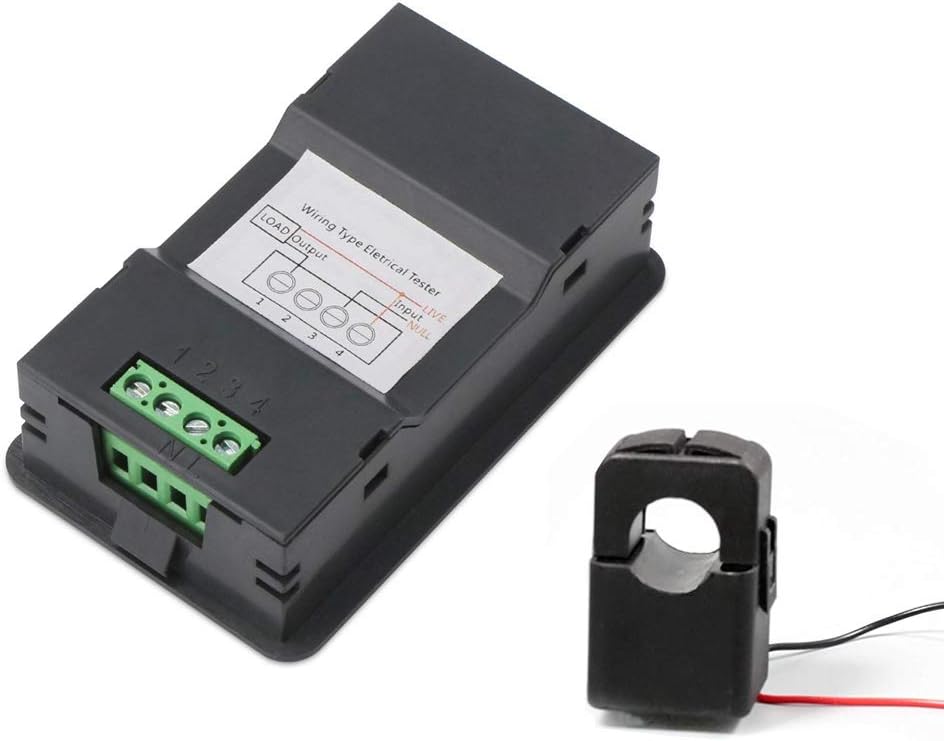

Key Feature This combo meter is designed to monitor AC power, it combines many functions in one. Voltage 110~250Vac Current 0.01-100A Energy 5-digits, 0.01~99999KWH Compatible frequency 50/60HZ Come with split-core current transformer (diameter 15mm), it is very easy to install. Backlight control, short press to turn on/off backlight Clear energy reading, press and hold down the key to clear the reading of kWh. Technical Specification Power Supply:110~250Vac (self-powered) Voltage Range:110V~250V Current Range:0.01~100A Resolution:1V, 0.01A, 0.01W, 0.01kWh Display Type:LCD with Blue backlight Dimensions:84mm*46mm*28mm Packing including: 1x 80 ~ 260V AC 100A Power Multimeter w/ Open-close structure Current Transformer
AC 6in1 Multifuction Voltmeter Ammeter Combo Meter 110~250V Voltage Amp 100A Power Watt Energy with Split Core Current Sensor
$52.99
- The meter can only measure the active power(real power). It doesn’t show Apparent power. If you measure power from a DC-AC inverter please make sure it’s PURE SINE WAVE. Otherwise the meter can be burnt or melted
- The blue backlight can be turned on/off manually. The CT can be either on Live line or Neutral Line.
- Voltage test range: One-Phase 80~260V AC Power, 50/60HZ; Current test range: 0~100A;

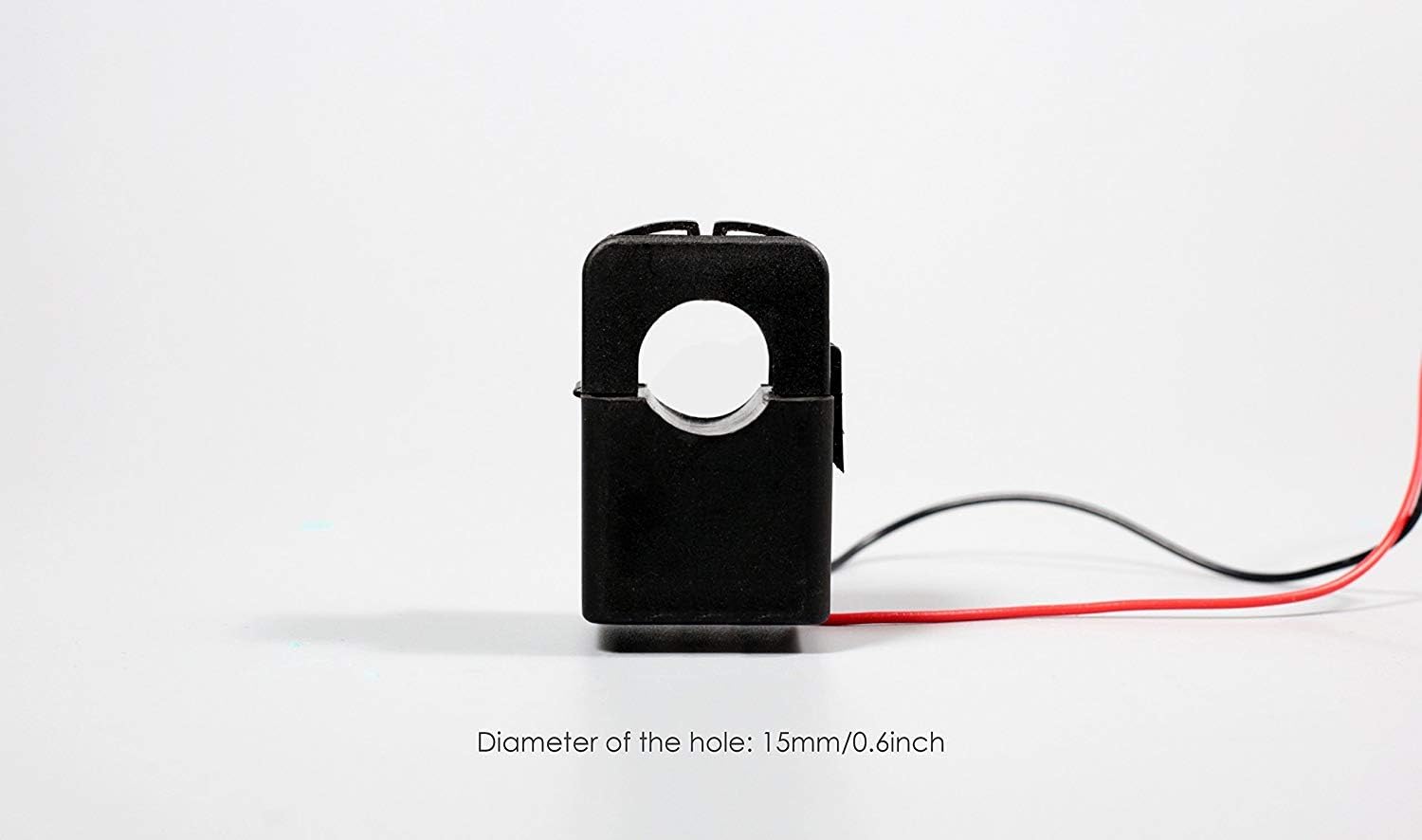

- Store energy data when power off(can be reset). w/ Open-close structure Current Transformer. Inner diameter of the CT: 15mm/0.6”

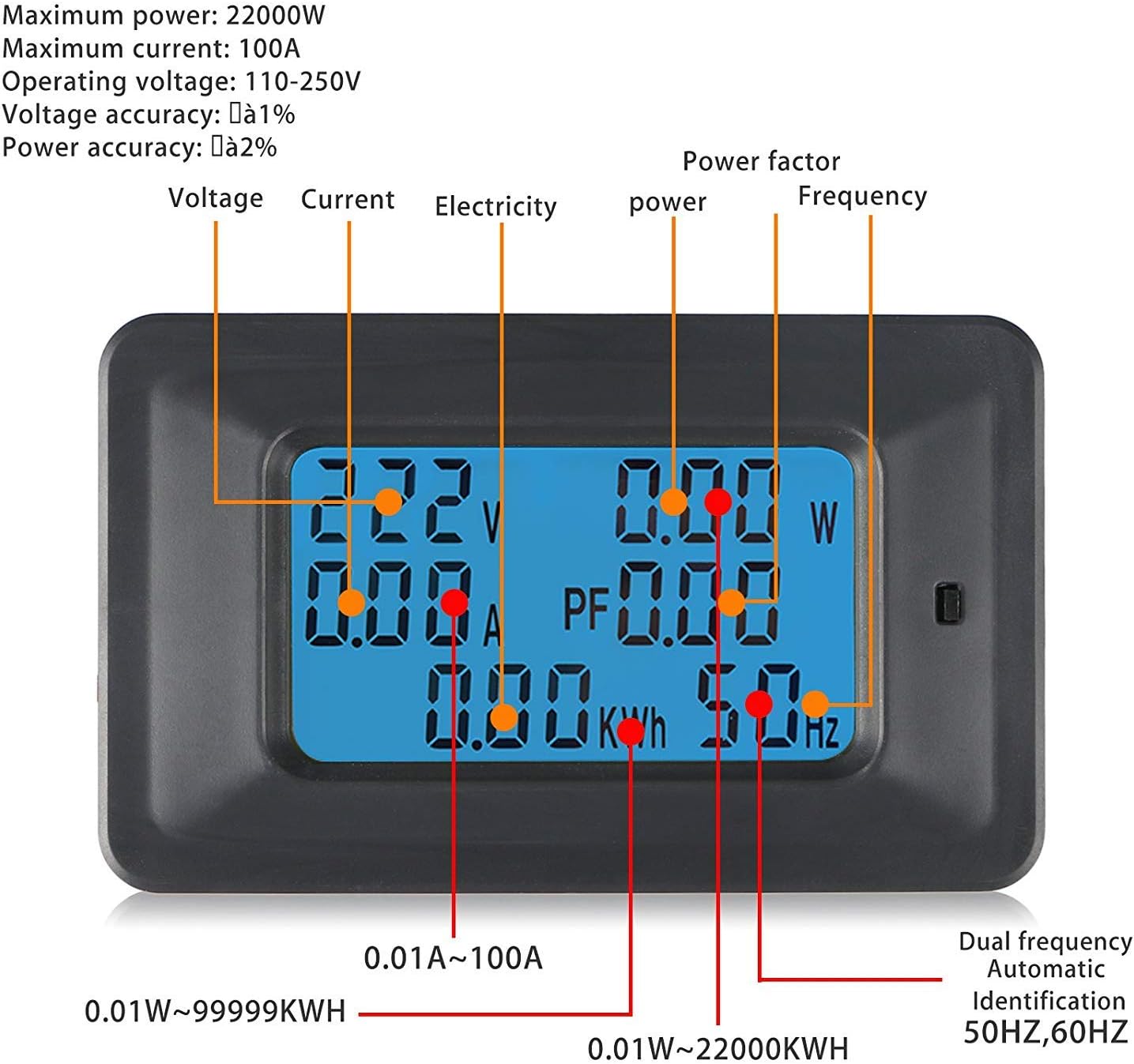

- Large-screen LCD (display voltage, current, active power, energy at the same time).
In stock
Additional information
| Weight | 0.188 kg |
|---|---|
| brand | AILI |
| dimensions | 12.5 x 9.7 x 3.4 cm; 188 Grams |
