Features:
1. Adopt microelectronics and digital processing technology to measure electric energy, accurate and reliable.
2. Internal integrated circuit is manufactured with precision SMT technology, with good electromagnetic interference resistance and stable performance.
3. This energy meter can measure positive active energy in electric energy measurement, which is clearly displayed by LCD backlight screen.
4. Two rows of LED display: The upper row shows temporary power consumption meter and can be cleared. The lower row shows total power consumption and cannot be cleared.
Specification:
Model: DDS015
Rated voltage: 230V AC
Rated current: 5-80 A
Load capacity: 0.05Ib to Imax (direct access type)
Data display: LCD display
Power indication: Green light
Electric energy pulse indication: Red light (When there is a sampling signal, it lights for about 80ms)
Mounting method: 35mm DIN rail
Working environment: -25℃~55℃, ≤95%RH
Size: 35*65*100mm / 1.38*2.56*3.94in
Package weight: Approx. 158g/5.6oz
Package list:
1 * Energy Meter
Note:
1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.
2. Please allow slight error due to manual measurement. Thanks for your understanding.

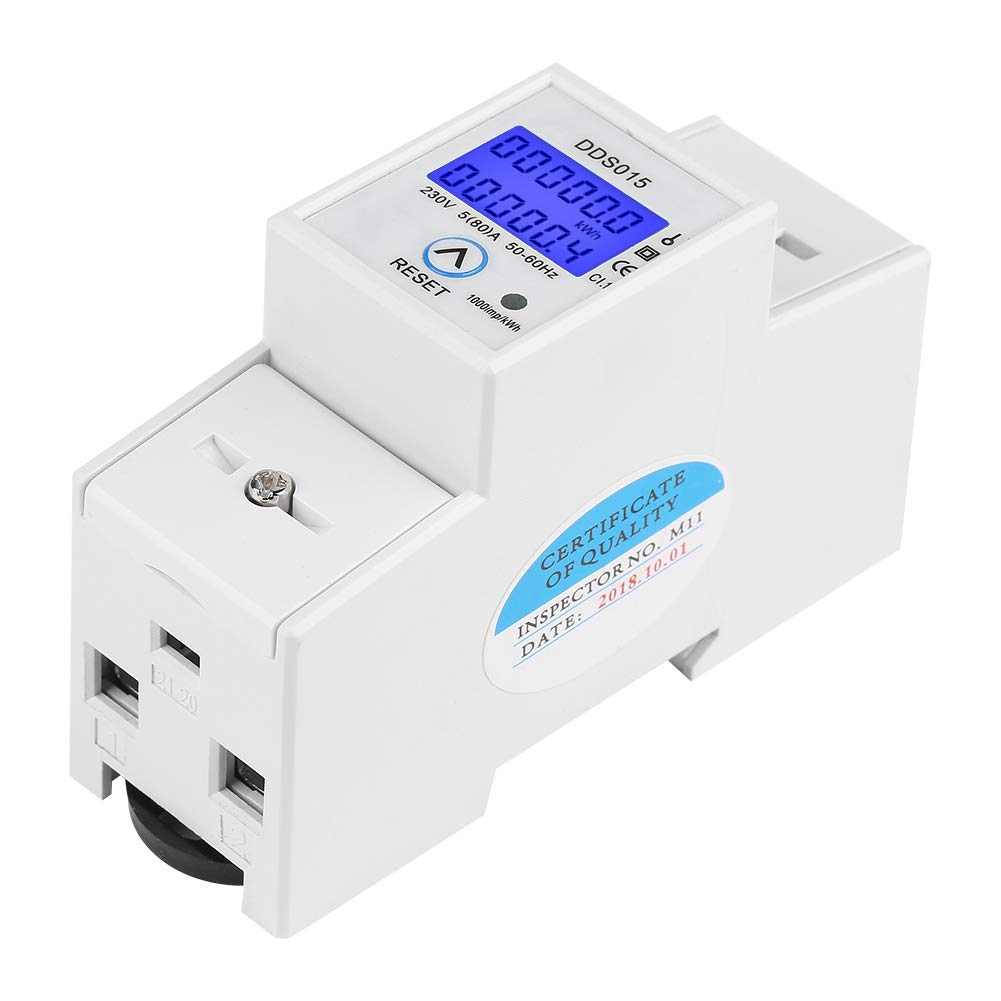

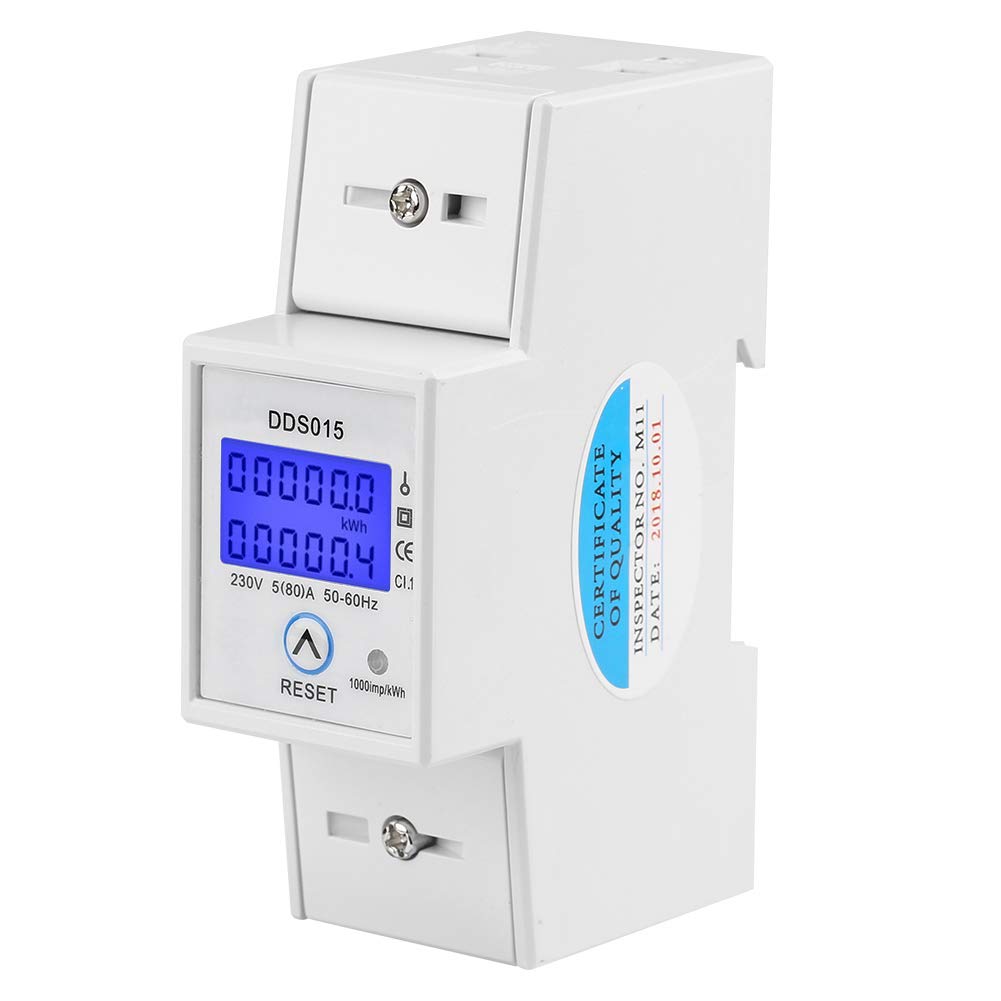

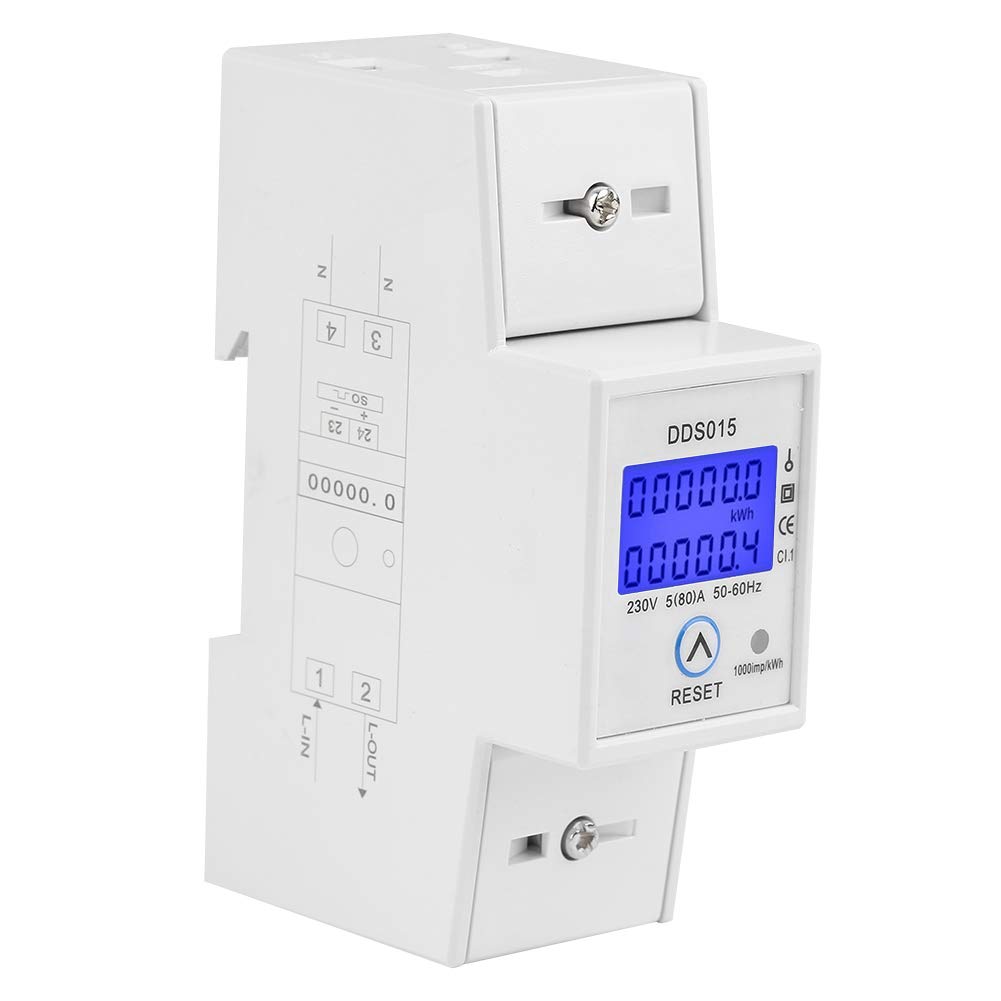

AC230V Digital LCD Display DIN-Rail Electric Energy Meter, 50Hz Electronic KWh Backlight Meter 5-80A
$57.99
- 【Reliable Electric Meter】: The DIN-Rail Electric Meter adopts microelectronics and digital processing technology to measure electric energy, which is accurate and reliable.
- 【Interference Resistance】: The integrated circuit of Electric Meter is manufactured with precision SMT technology, ensures the Electric Meter has good electromagnetic interference resistance and stable performance.
- 【Backlight Display Meter】: This Electric Energy Meter can measure positive active energy in electric energy measurement, which can be clearly displayed by LCD backlight screen.
- 【Circularly Displays Meter】: The LCD display screen of the Electric Meter will circularly displays voltage, current, power and energy KWh.
- 【Light Weight LCD Meter】: The Electric Energy Meter has small size and light weight, with 35mm DIN rail mounting.
In stock
Additional information
| Weight | 0.15 kg |
|---|---|
| brand | Oumefar |
| dimensions | 10 x 6.5 x 3.5 cm; 158 Grams |
