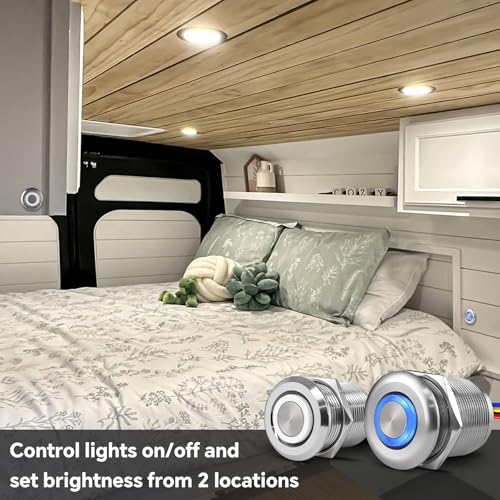

Easy set up light on/off and dimming control from multiple positions with this three way dimmer switch kit. Durable CNC milled aluminum enclosure, compact size and easy to integrate into switch panel. It is great for RV boat truck camper van trailer yacht, etc applications or any 12VDC / 24VDC circuit for lighting dimming control.
Features:
Physical Push Button – The dimmer adopt mechanical push button switch. It is easy to operate, no malfunction, much reliable and stable than touch switch
Brightness Memory – It saves the last brightness set and on/off status. It will automatically keep the same status as last time setting when power comes back
Stepless Dimming – High efficiency pulse width modulation (PWM) dimming with a 5% – 100% dimmable range, flicker-free and noise-free smooth controls
Flexible DIY Installation – Small size easily integrate into OEM dashboard panel, cabinet, or any custom switch board, and recessed mounted in furniture
Parameters:
Enclosure Material: CNC milled aluminum
Faceplate: Full aluminum
Operation Voltage: DC12V, DC24V
Output Current: Max 6A@12VDC, Max 3A@24V
Compatible: incandescent, halogen, LED strip light or dimmable LEDs
Dimming Type: Pulse Width Modulation (PWM)
Memory Function: Save the last brightness and on/off setting
Dimmer Type: Push button, both support on/off/dimming control
Backlight: Only master dimmer, on off switchable
Finish Color: Black
Master Button Size: 1” x 1” (25mm x 25 mm)
Slave Button Size: 1 x 7/8” (25mm x 22 mm)
Installation Depth: 1” (25mm)
Drill Hole: Master dimmer 7/8” (22mm), Slave dimmer 3/4”(19mm)
IP rating: IP 64
