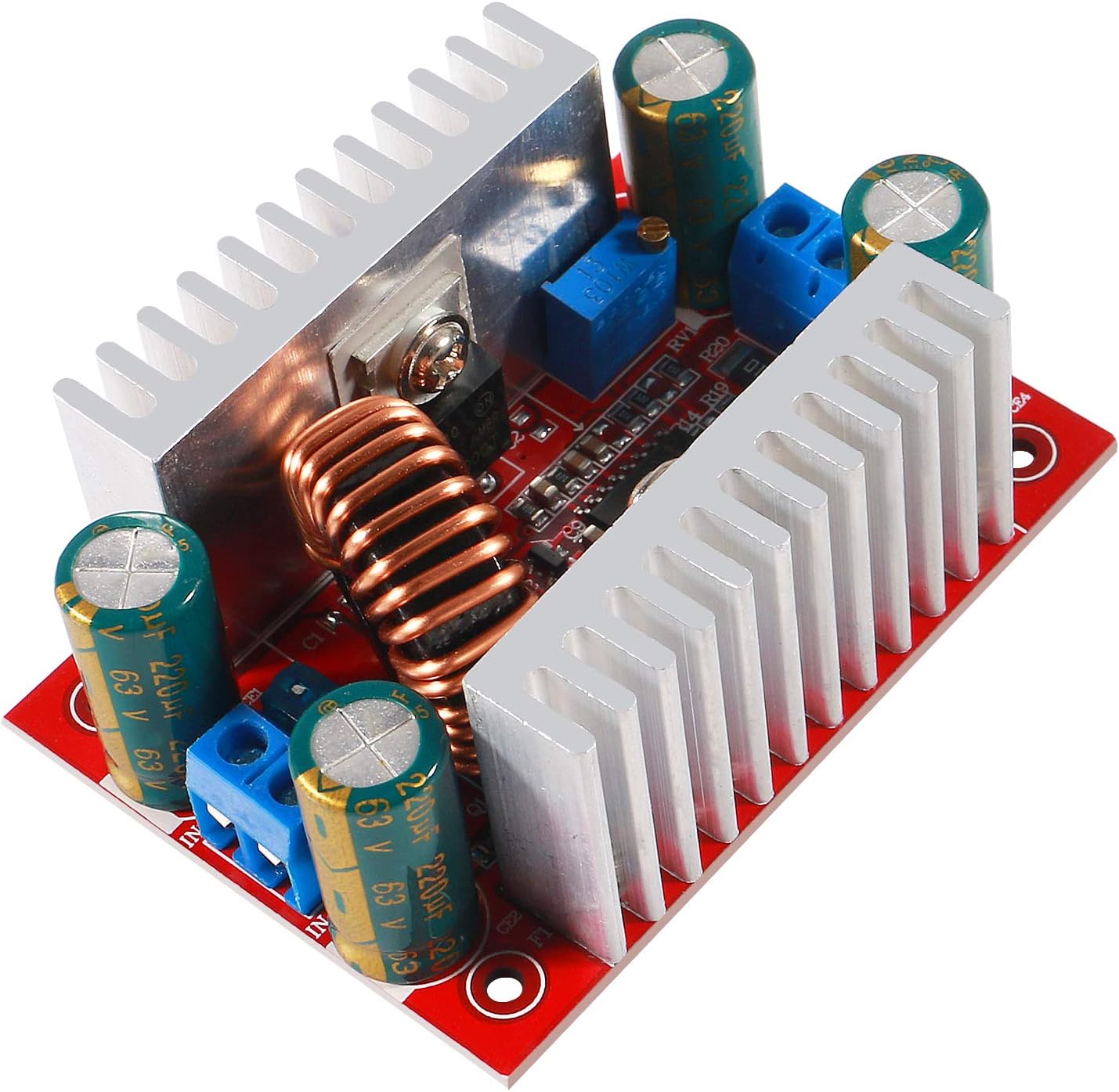

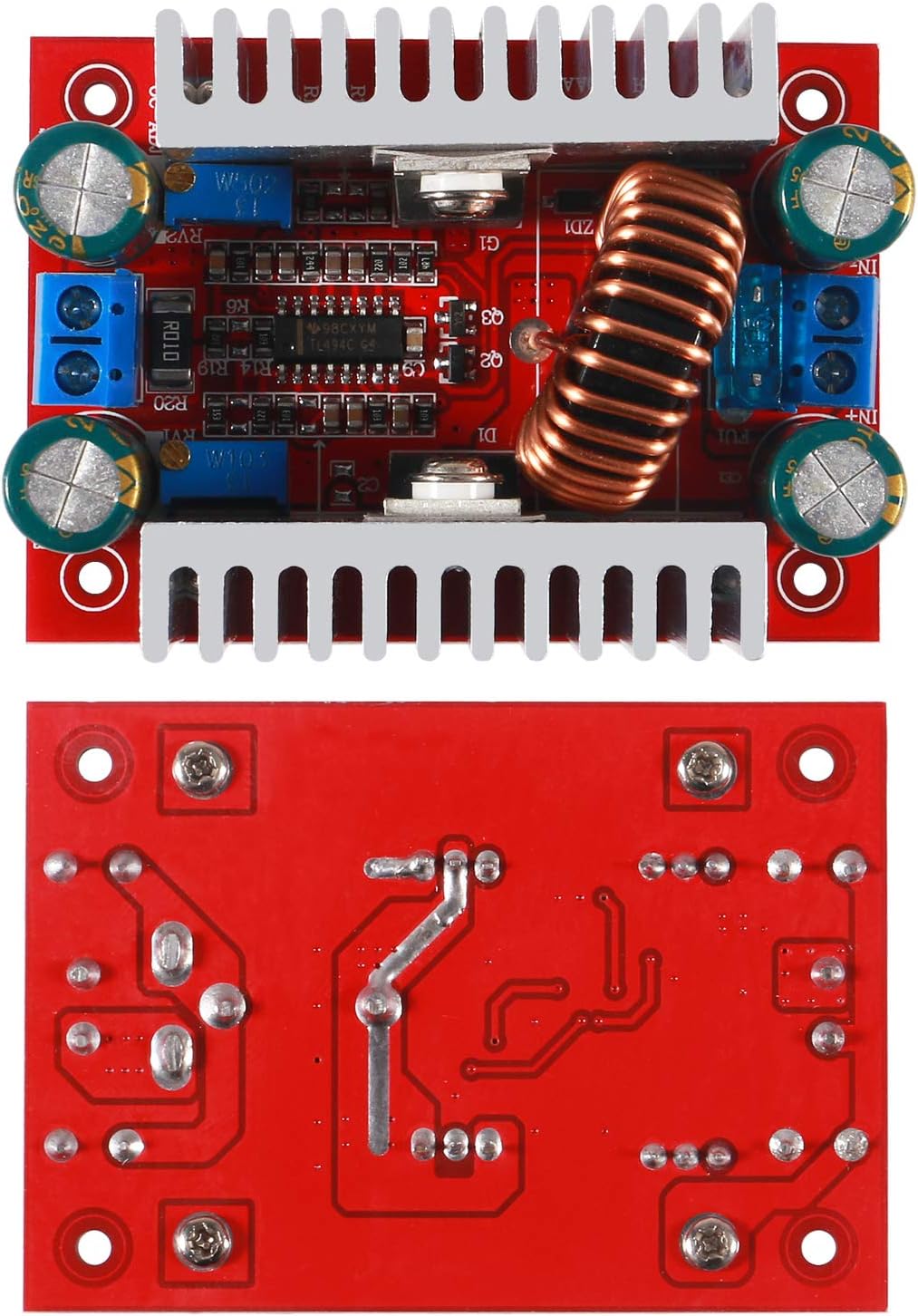

400W 15A : DC 400W 15A Step-up Boost Converter Constant Current Power Supply 8.5-50V to 10-60V
Module name :400W boost constant current module; Module properties: non-isolated step-up module (BOOST); Input voltage: DC8.5V-50V; Input current: 15A (MAX) exceeds 8A please enhance heat dissipation.
High performance: Output voltage: 10-60V continuously adjustable; Constant range: 0.2-12A;Operating frequency: 150KHz;Conversion efficiency: up to 96%; Overcurrent protection: yes; Input reverse polarity protection: no.
WIDE APPLICATION:
widely used for electric equipment, digital products, laptop and more. It can also be used as a driver for high power LED lights or voltage regulator for solar panels
Specifications:
Type: Non-isolated boost module
Input Voltage: DC8.5V to 50V
Output Voltage: DC10V to 60V (continuously adjustable, default 19V)
Max. Input Current: 15A (please enhance heat dissipation if more than 8A)
Max. Output Current: 12A (related to the input and output voltage difference, the greater voltage difference is, the smaller output current will be. please enhance heat dissipation when current is over 7A)
Quiescent Current: 10mA(will increase when convert 12V to 20V)
Constant Current Range: 0.2A to 12A
Output Power = Input Voltage*Current
Operating Temperature: -40° to 85°(if temperature is too high, please enhance heat dissipation)

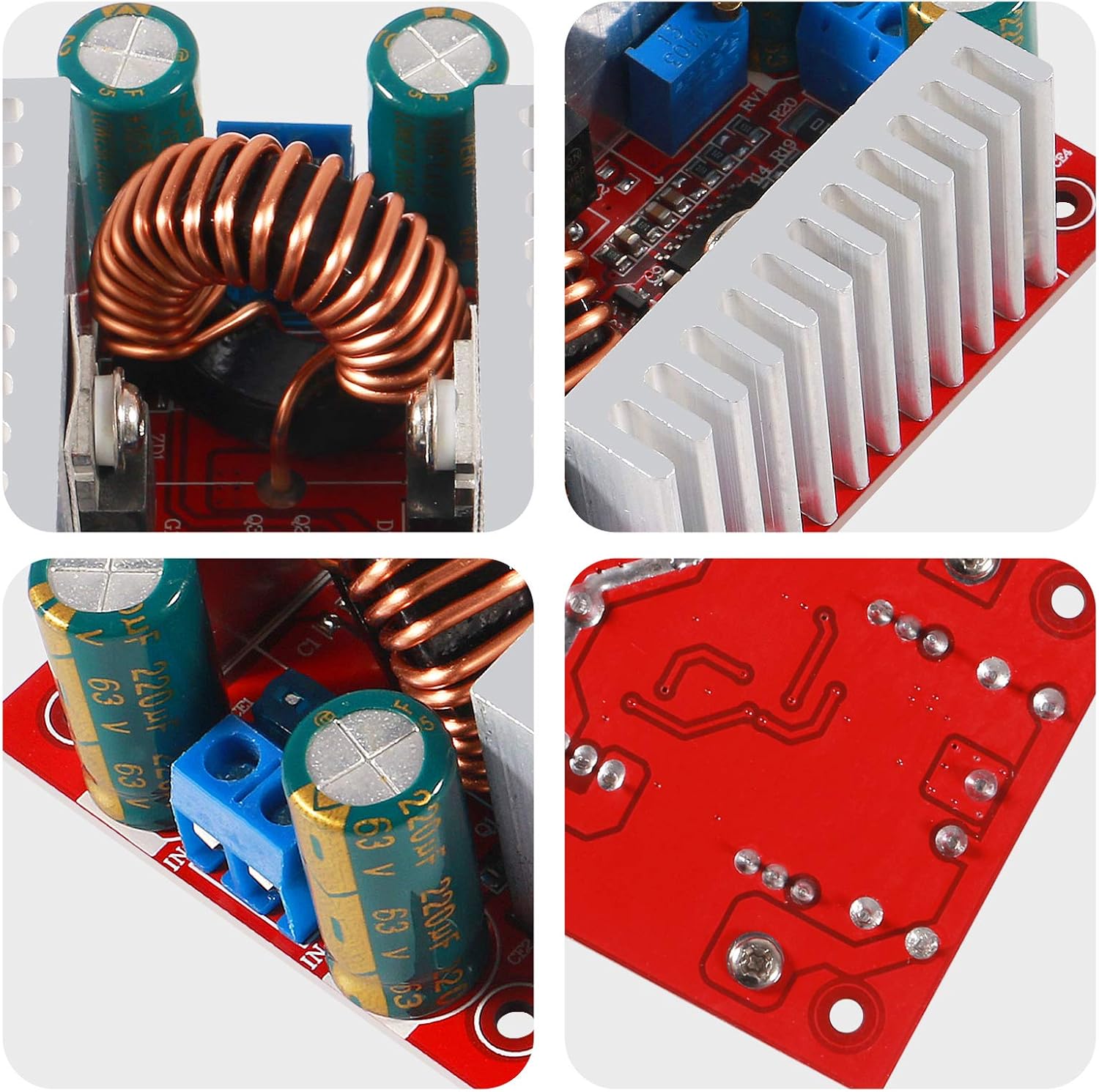

Input and output are designed with screw terminals for convenient wire connection and disconnection.
Package Includes:
2 x Boost Module
