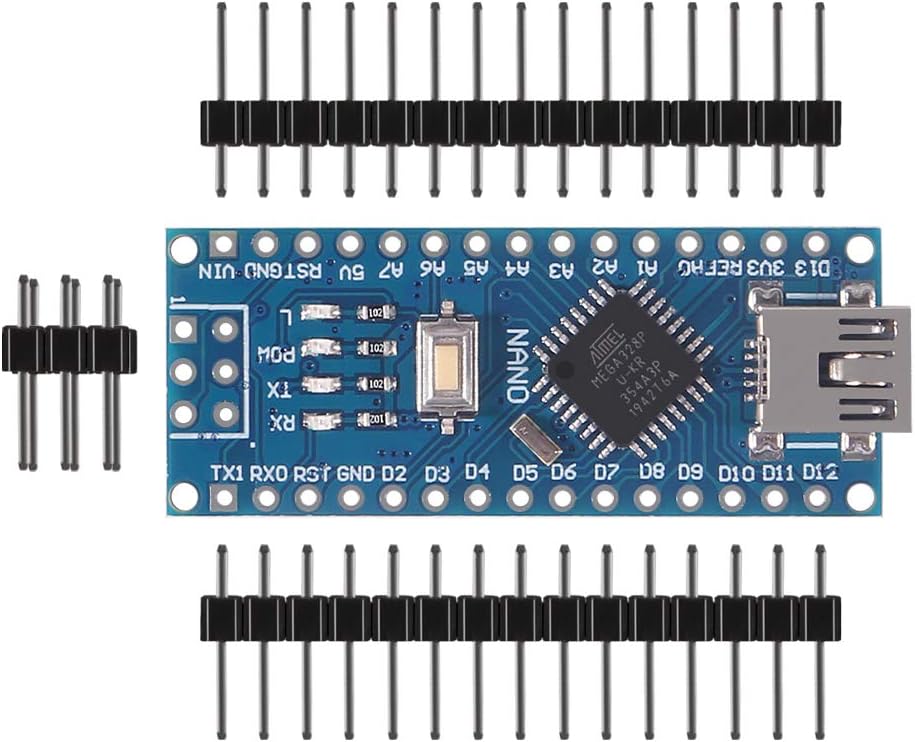

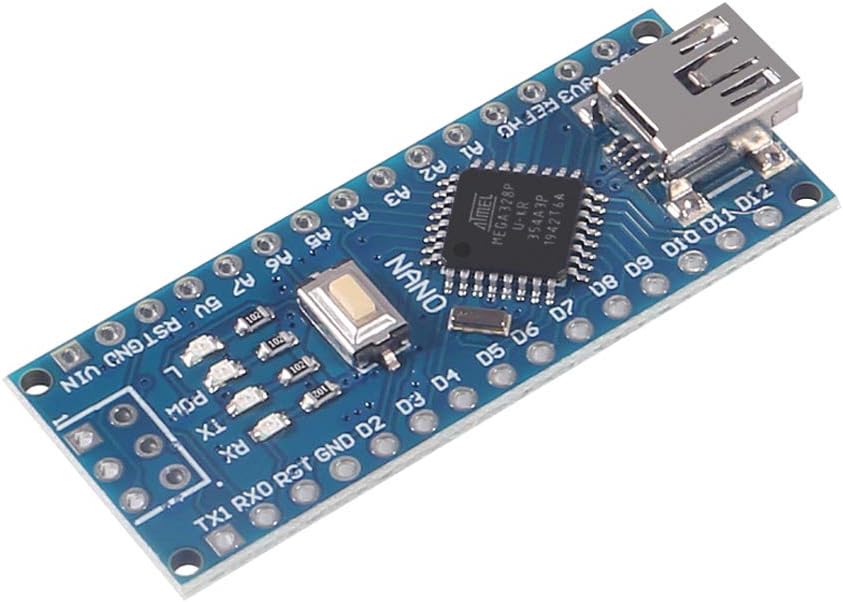

The Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.x).
It has more or less the same functionality of the official Arduino/Genuino UNO, but in a different package.
It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one.
Feature:
Microcontroller: ATmega328A
Operating Voltage (logic level)：5 V
Input Voltage (recommended)：7-12 V
Input Voltage (limits)：6-20 V
Digital I/O Pins：14 (of which 6 provide PWM output)
Analog Input Pins：8
DC Current per I/O Pin：40 mA (I/O Pins)
Flash Memory：16 KB (ATmega168) or 32 KB (ATmega328) of which 2 KB used by bootloader
SRAM：2 KB (ATmega328)
EEPROM：1 KB (ATmega328)
Clock Speed：16 MHz
Package Include :

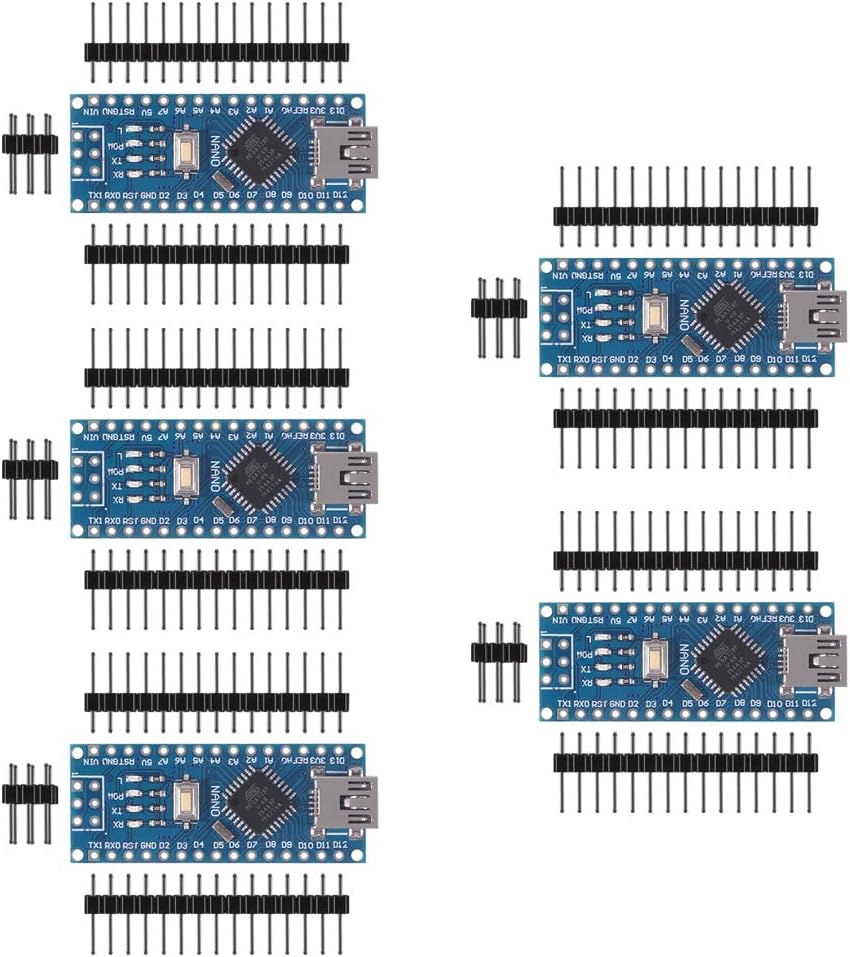

5 X Nano Board
AITRIP 5PCS for Arduino Mini Nano V3.0 ATmega328P 5V 16M Micro Controller Board Module for ArduinoIDE
$90.99
- Make sure this fits by entering your model number.
- The Nano is using the chips ATmega328P and CH340, Replace FT232RL.
- It is a smallest, complete, and breadboard friendly board. It has everything that Diecimila/Duemilanove has (electrically) with more analog input pins and onboard +5V AREF jumper.
- Nano’s got the breadboard-ability of the Boarduino and the Mini+USB with smaller footprint than either, so users have more breadboard space. It’s got a pin layout that works well with the Mini or the Basic Stamp (TX, RX, ATN, GND on one top, power and ground on the other).
- The Nano can be powered via the Mini-B USB connection, 7-12V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.
- The Nano can be powered via the Mini-B USB connection, 7-12V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source
In stock
Additional information
| Weight | 0.03 kg |
|---|---|
| brand | AITRIP |

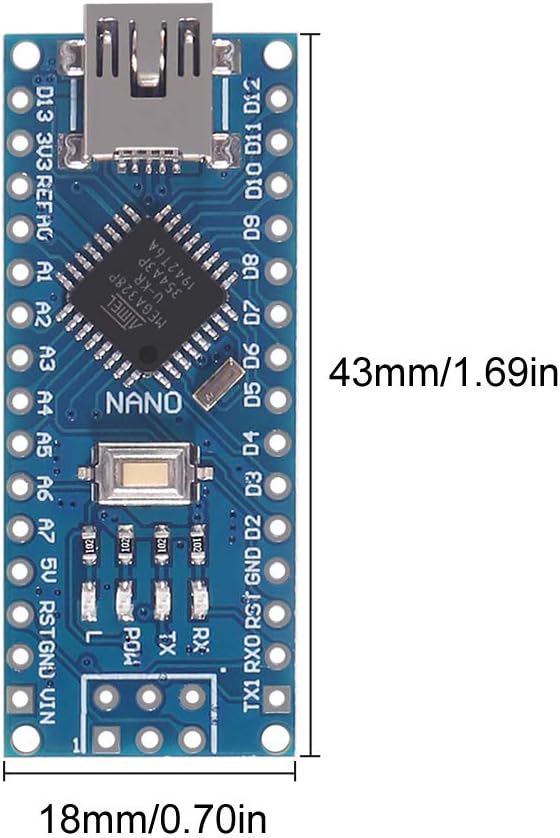

| dimensions | 7 x 5 x 2 cm; 20 Grams |
