Features:

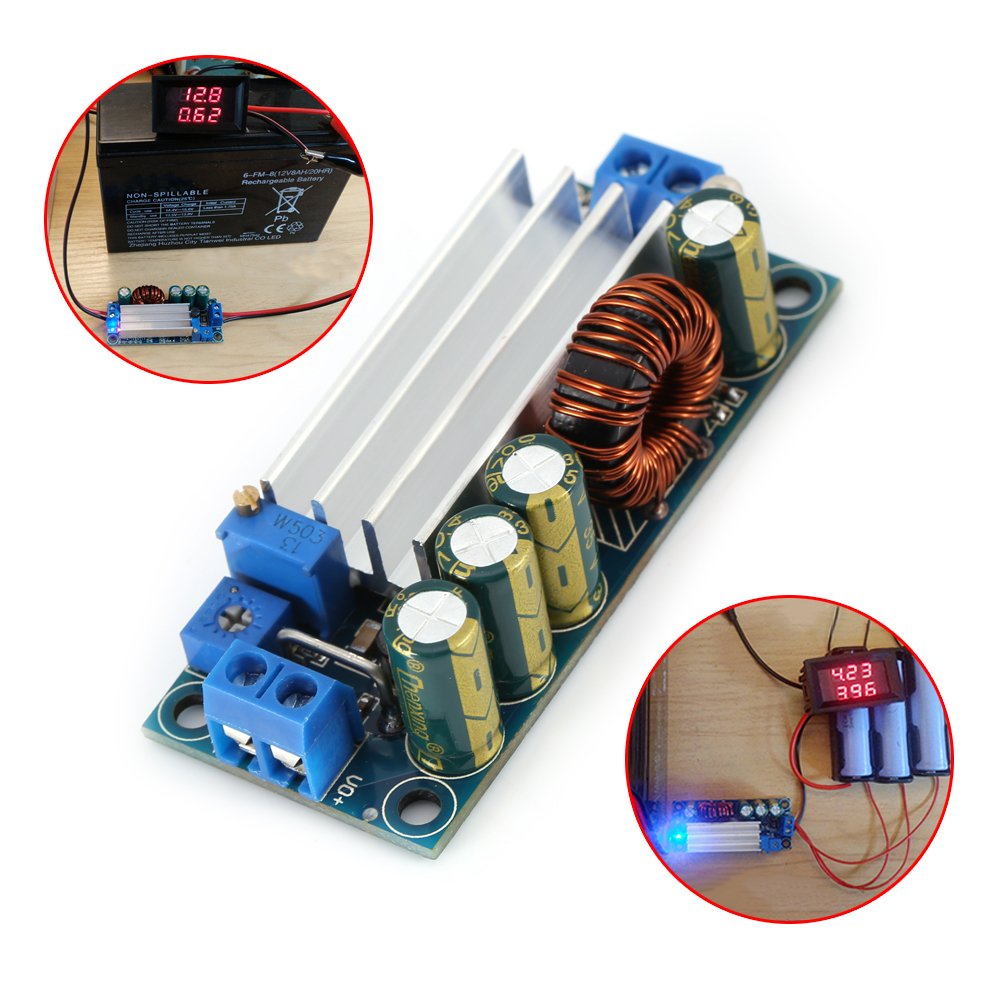

This boost/buck module can step up or step down voltage and maintain a stable output voltage.

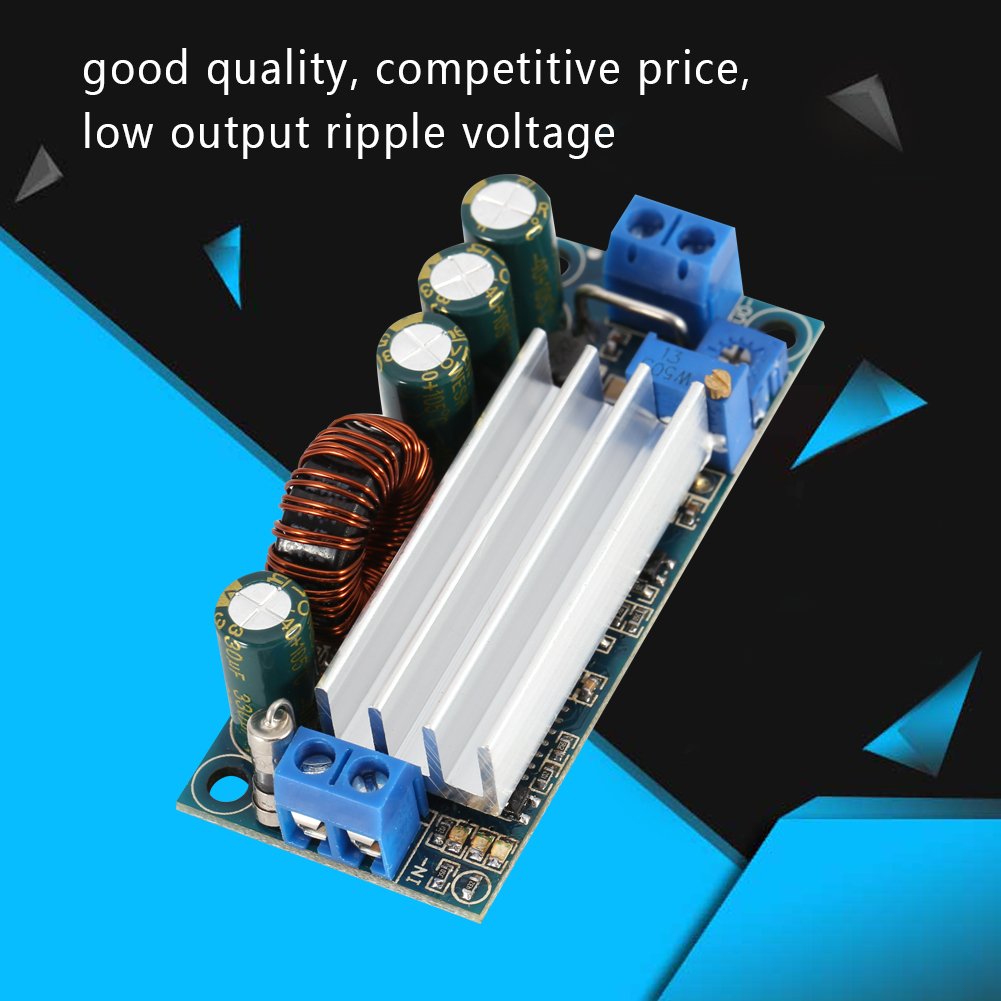

It has quite low output ripple voltage, for example, 20mV when output is 12V 3A, which is great for powering speaker, audio amplifier, artificial circuit, etc.
Input 5V to 30V and it can charge storage battery, lithium battery, AA rechargeable battery, or adjust constant current LED brightness.
Specifications:
Input Voltage: 5V~30V Output Voltage: 0.5V~30V Output Current: 3A (or 4A if enhance heat dissipation) Output Power: 35W (or 60W if enhance heat dissipation) Output Ripple Voltage: 20mV (at 12V 3A output) Conversion Efficiency: 87~91%(step up); 87~89%(step down)
Input Over-current Protection: 10A fuse
Input Anti-reverse Protection: High efficiency MOS

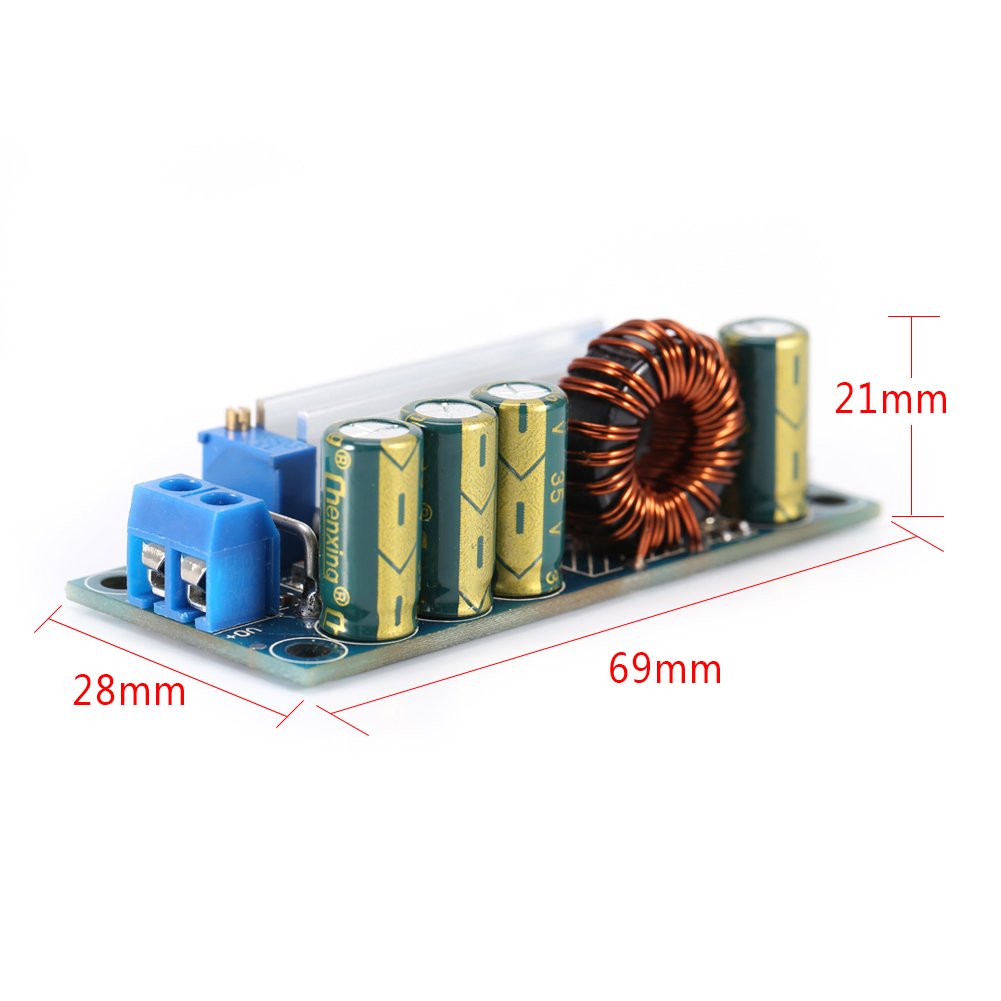

Input Under-voltage Protection: Yes Output Over-current Protection: Yes Frequency: 180kHz Size: 69*28*21mm / 2.71*1.1*0.82″
Package Includes:
1 x Module
