Product description: Professional RC Watt Meter is an excellent addition to your RC hobby, DC circuits, Solar system, Boat/RV & Battery Backup systems! This isn’t just a watt meter-it’s the All-In-One Meter! A power meter, a volt meter, an amp-hour meter, ammeter and energy meter. Everything all in one unit! This is the perfect troubleshooting tool. This all-in-one watt meter is indispensable for analyzing, testing and troubleshooting any DIY DC power projectifications: Color:Blue Voltage:8V-60V 0.01V (Resolution). Current:0-100 A peak 0.01A (Resolution). Power:0-6554 W 0.1W (Resolution). Charge:0-65 Ah 0.001Ah (Resolution). Energy:0-6554 wh 0.1 Wh (Resolution). Measurement Update period:400mS. Signal Sampling Rate:sample/s. Data Queue Sequence time: 2 seconds. In Circuit Resistance:0.001 Ohms. Operation Current: Approx.36 mA. Size:8.3cm x 4.7cm x 2cm – 3.27inch x 1.85inch x 0.79inchPackage Included: 1Pcs x Watt Meter
Akozon Voltmeter Ammeter DC Power Analyser 0-100A Battery Monitor Meter 8-60V High Precision Watt Volt Amp Energy Meter Analyzer Tool LCD Display for Cars RV Solar System
$63.99
- 【Application】: This watt meter is used to measure energy (AH), power (W), current (A) and voltage (V)se note that the voltage of the product is 8-60V. If it is lower than 8V, an external power supply is required to power the integrated circuit.
- 【Accurate Measure】: Measures peak Amps, peak Watt (except for Doc Wattson) and voltage minimum m (sag)

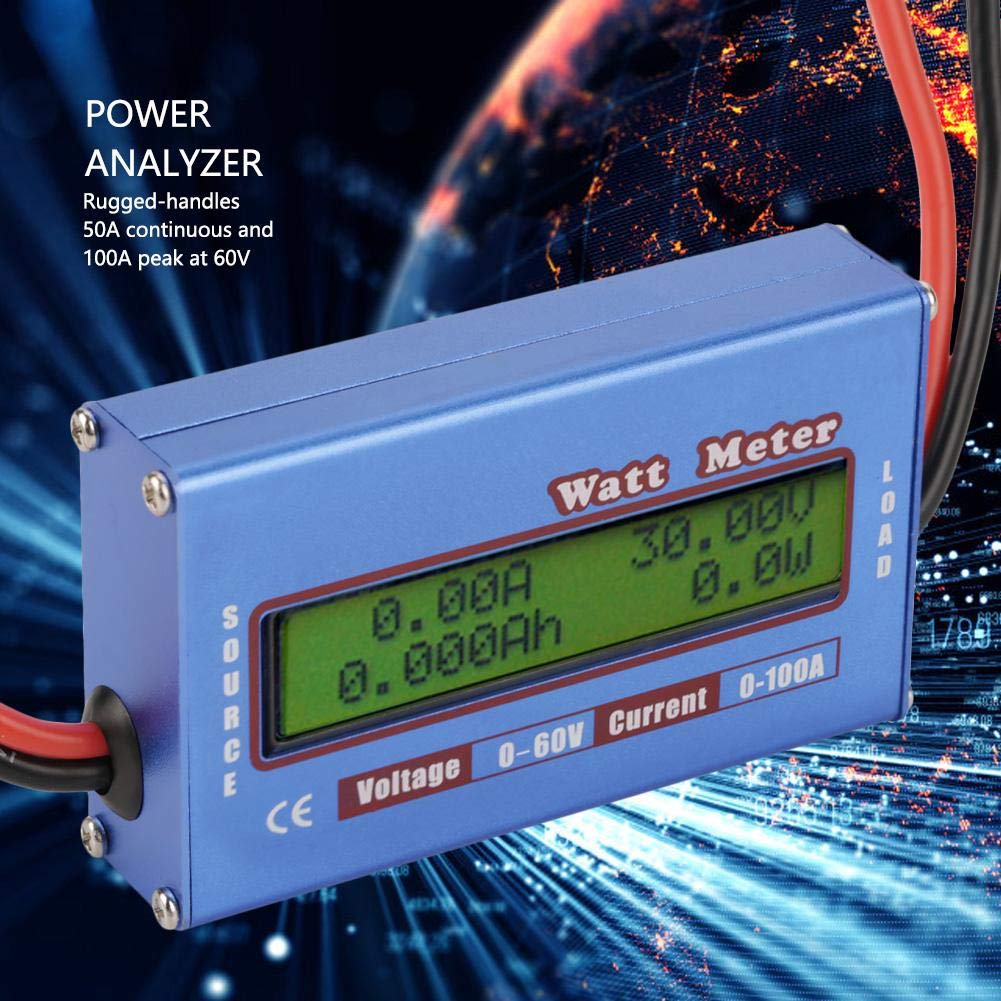

- 【Sturdy and Durable】: Rugged-handles 50A continuous and 100A peak at 60V. Precision Alu-Chrom current sensing resistor, with only 0.001 ohms resistance and circuitry that draws only 7 mA

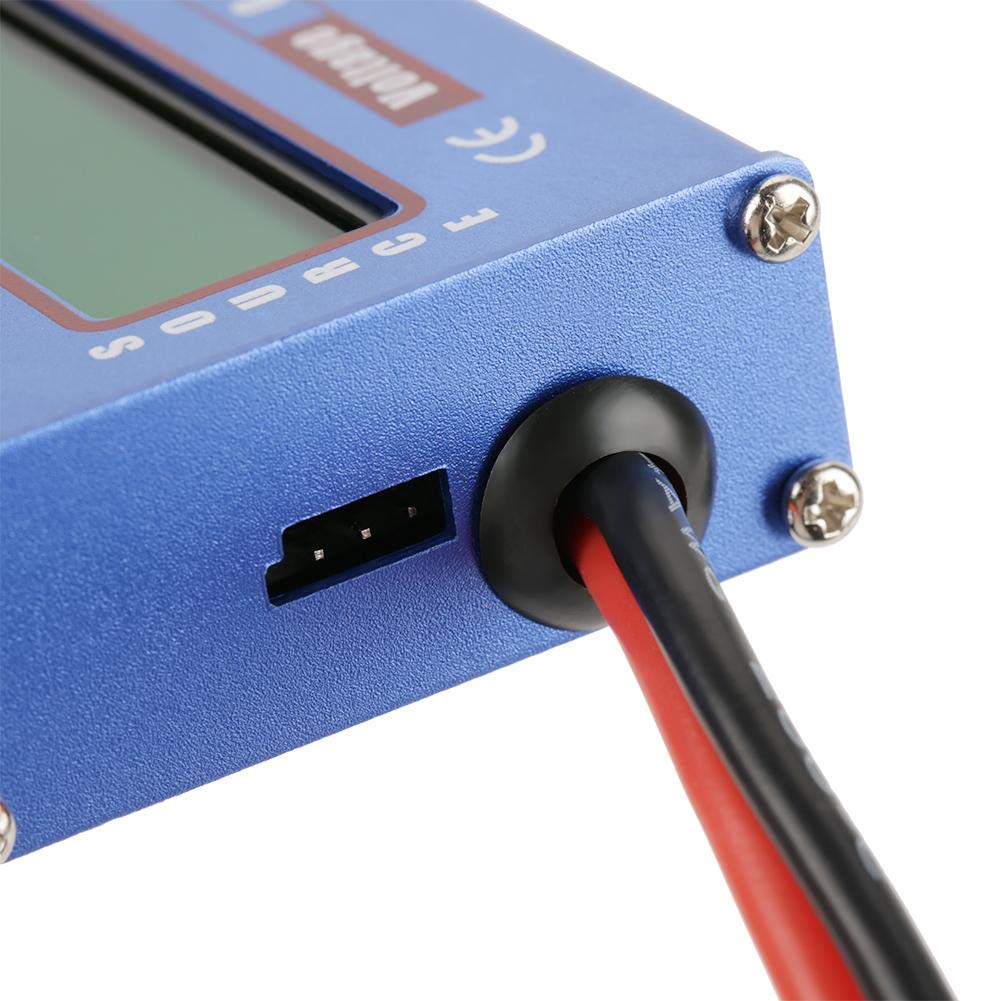

- 【Good Performance】: 14ga, super fine stranded, high temperature, silicone rubber insulated wire. Powerful, 8 MIPS micro-controller

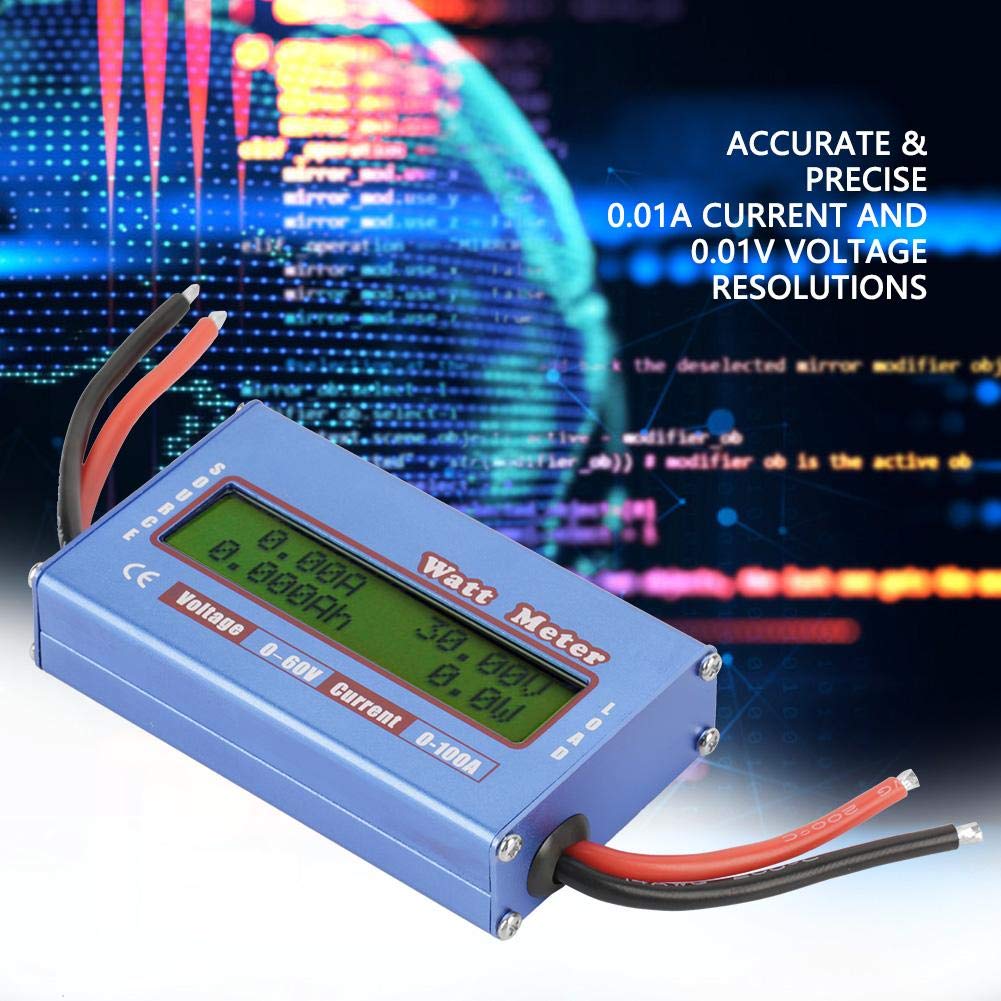

- 【Small Size】: Accurate & precise 0.01A current and 0.01V voltage resolutions. Small & light with a tough plastic case. Acts like a wire so does not affect model’s performance
In stock
Additional information
| Weight | 0.116 kg |
|---|---|
| brand | Brand: Akozon |
| dimensions | 10.5 x 7.7 x 3.5 cm; 101 Grams |
