Specification: Model (Optional):DPS3012,DPS5015,DPS5020 DPS3012 Input Voltage: DC6-40V Output Voltage: 0-32.00V Output Current: 0-12.00A Output Power: 0-384W Voltage Resolution: 0.01V Current Resolution: 0.01A IN+: Input Positive IN-: Input Negative OUT+: Output Positive OUT-: Output Negative Connecting Wire Length: 200mm / 7.87in Display Module Size: 80 * 42 * 45mm / 3.1 * 1.7 * 1.8in Power Module Size: as the picture shows Weight: Approx.242g/8.5oz DPS5015 Display: 1.44″ Colorful LCD Input Voltage: DC 6-60V Output Voltage: 0-50.00V Output Current: 0-15.00A Output Power: 0-750W Voltage Resolution: 0.01V Current Resolution: 0.01A IN+: Input Positive IN-: Input Negative OUT+: Output Positive OUT-: Output Negative Connecting Wire Length: 200mm / 7.87in Display Module Size: 80 * 42 * 45mm / 3.1 * 1.7 * 1.8in Power Module Size: 91 * 67 * 40mm / 3.58 * 2.64 * 1.57in Weight: Approx.257g/9.1oz DPS5020 Display: LCD Digital Display Input Voltage Range: DC 6.00-60.00V Output Voltage Range: 0-50.00V Output Voltage Resolution: 0.01V Output Voltage Accuracy: ±(0.5% + 1 digit) Output Current Range: 0-20.00A Output Current Resolution: 0.01A Output Current Accuracy: ±(0.5% + 2 digit) Output Power: 0-1000W IN+: Input Positive IN-: Input Negative OUT+: Output Positive OUT-: Output Negative Connecting Wire Length: 200mm / 7.87in Fixed Hole Center Distance: 86mm, 64mm Display Module Size: 79*43*41mm / 3.1*1.7*1.6in Power Module Size: as the picture shows Weight: Approx.257g/9.1oz Package List: 1 * Display Module 1 * Power Module 1set *accessories

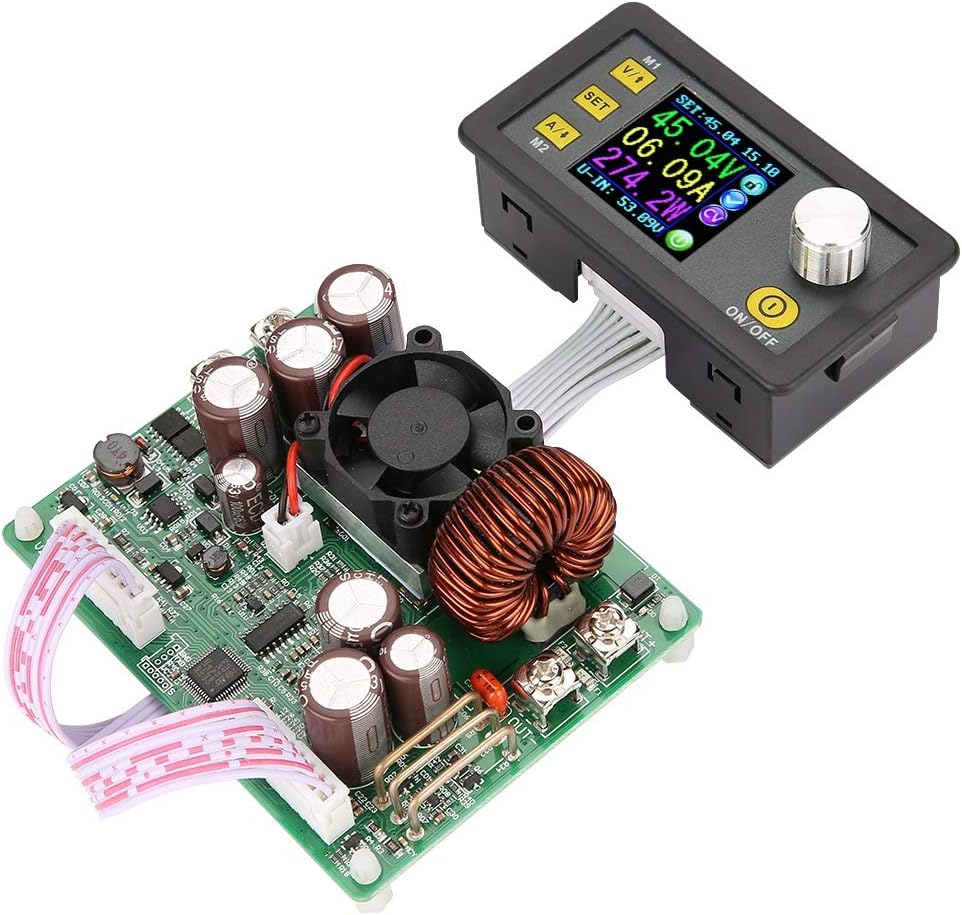

Akozon LCD Power Step-Down Module DPS3012/DPS5015/DPS5020 Adjustable Step-Down Regulated LCD Digital Power Supply Power Buck Module Power Supply Regulator Lock,Data Storage Function(DPS5020)
$208.99
- Make sure this fits by entering your model number.
- 【Excellent Design】This constant voltage and constant current programmable control power supply module makes analog integration and digital control functions combined in one output voltage is adjustable from 0V-32V/0-50.00V, the output current is adjustable from 0-5.000A/0-12.00A/0-15.00A advanced functions, high accuracy, wide application, the item is really practical.

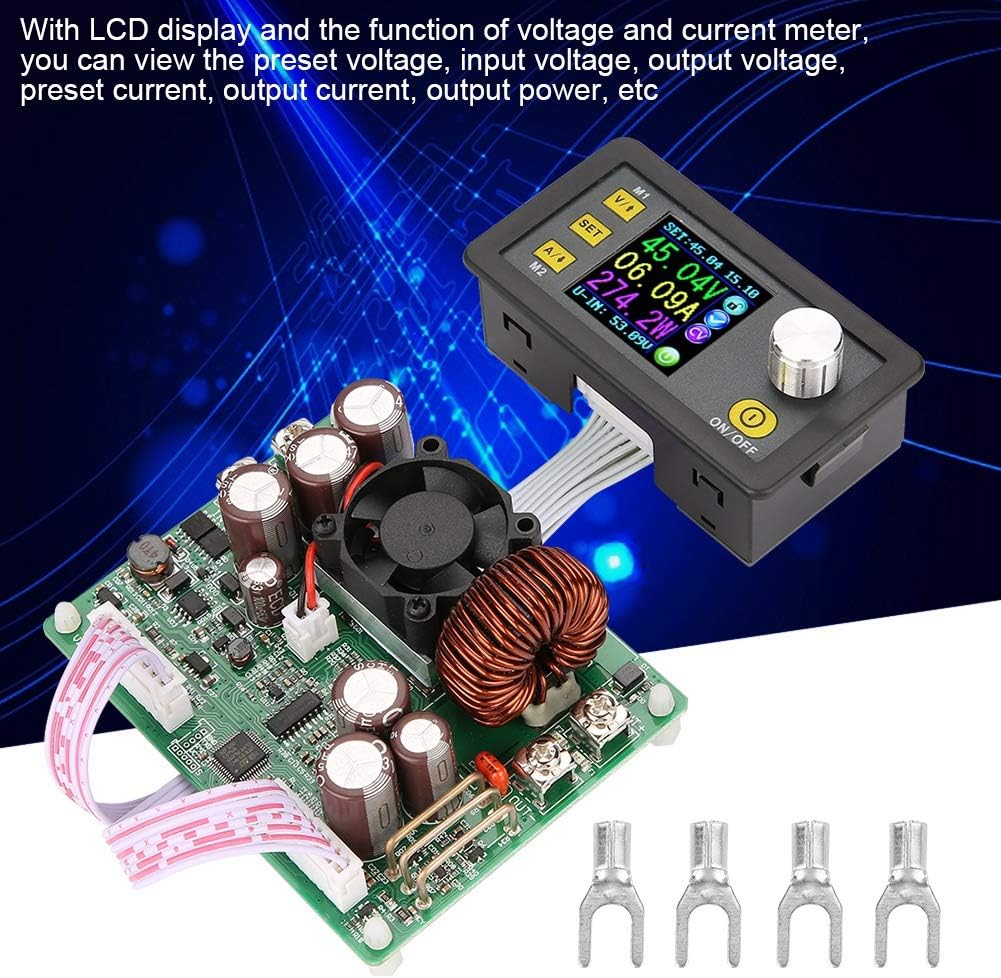

- 【LCD display】Four digit display, high precision, high resolution,1.44-inch high-definition color LCD display, digital display is clearer the function of voltage and current meter, you can view the preset voltage, input voltage, output voltage, preset current, output current, output power, etc. In the output state display area, it is convenient for you to know whether the output works, constant voltage/current output state, current data group extracted, etc.

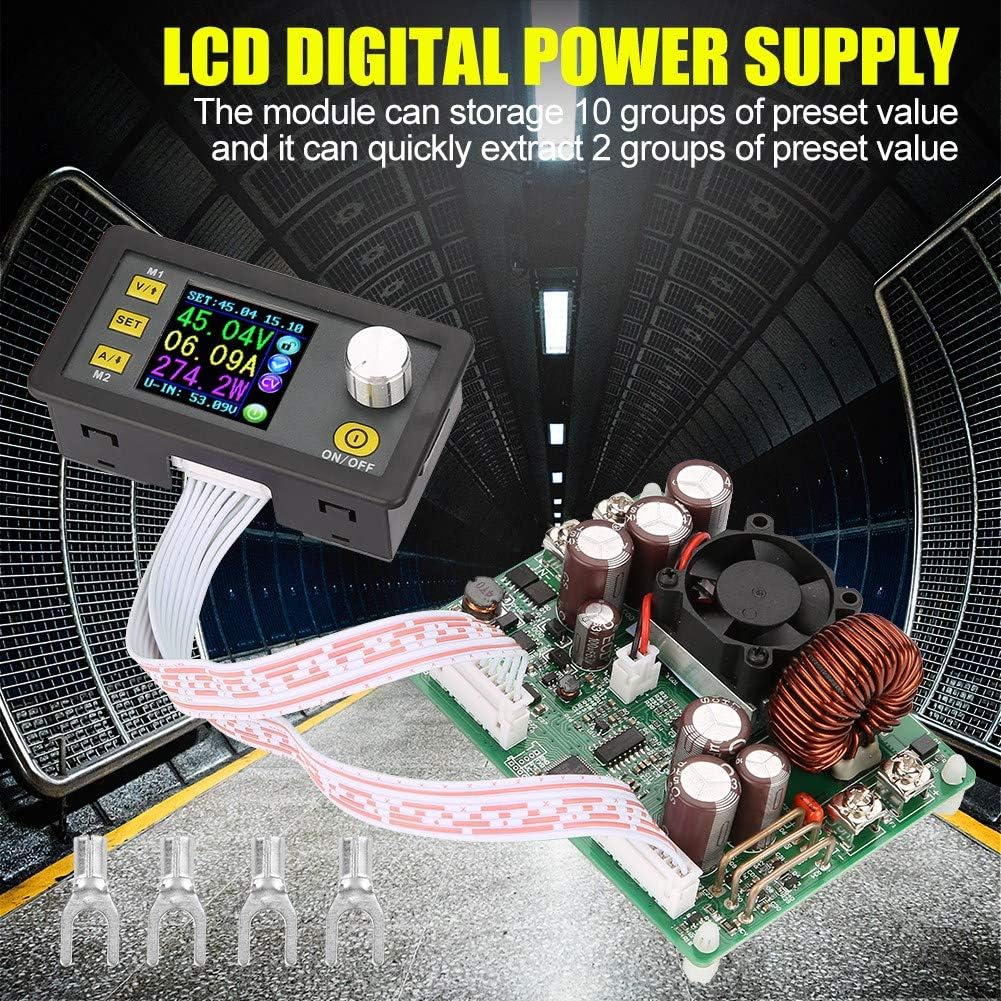

- 【Multifunction】Supports Lock function prevents misoperation and makes measurement easier. The LCD Power Supply Voltage Converter module Supports Overvoltage protection, overcurrent protection, over power protection, reverse connection protectionorts Instantly turn output on or off function module can storage 10 groups of preset value and it can quickly extract 2 groups of preset value, easier viewing and easier recording.
- 【Widely Used】Wide range of applications: can be used independently, convenient and fast, no pressure. It also can be embedded in the device and assembled with the outer casing, which is more handsome and more convenient to use Constant Voltage Current Step-Down Programmable module has Intelligent fan, which has super heat dissipation, can better control the temperature.
- 【Note】1. It must be ensured that the input supply voltage is 1.1 times or more of the output voltage. At high currents, please pay attention to enhance heat dissipation.2 connecting the display module to the power module, the connection line of the corresponding character should be correctly connected. If the connection is reversed, it will not work properly.
In stock
Additional information
| Weight | 0.242 kg |
|---|---|
| brand | Akozon |
| dimensions | 9.3 x 7.1 x 4.1 cm; 240 Grams |
