Specification:
Model—M4070 LCR Meter Series LCR Testing Parameter—Main Parameter: L / C / R Testing frequency—C: 10 to 500Khz/L: 10 to 360Khz Testing Method—Auto select LC and RC Oscillation Calibration—Power on auto calibrate with internal reference capacitor Testing voltage—~1.5Vrms Best Tolerance—L: 1% +1 Digit/C: 1% +1 Digit/R: 0.5% +1 Digit LCD update or Testing time (* vary on component value)—<3/s, (e.g. 100mF Capacitor <30s) Range Selection—Automatically Zeroing—Open / short circuit Terminal—Mini-USB(Virtual Com Port) Display Range—C—0.00pF ~100.000mF (pF/nF/uF/mF) L—0.000uH ~100.000H (uH/mH/H) Hz (LC Oscillation Frequency)—0 to 900000Hz (s) (RC Constant Time)—0.000 to 99.999 R— 0.00 Ω~ 20.000 MΩ(Ω/kΩ) LCD Display—128X64 Dot Matrix, with backlight Fuse Protection—200mA Charging terminal—Mini-USB (500mA) Battery—internal 3.7V Li-polymer Number of Testing Terminal—Main 3, Secondary 4 Reading Display—Max. 99999 Size—17*10*3cm/6.7*3.9*1.2in Weight—Approx.391g/13.8oz

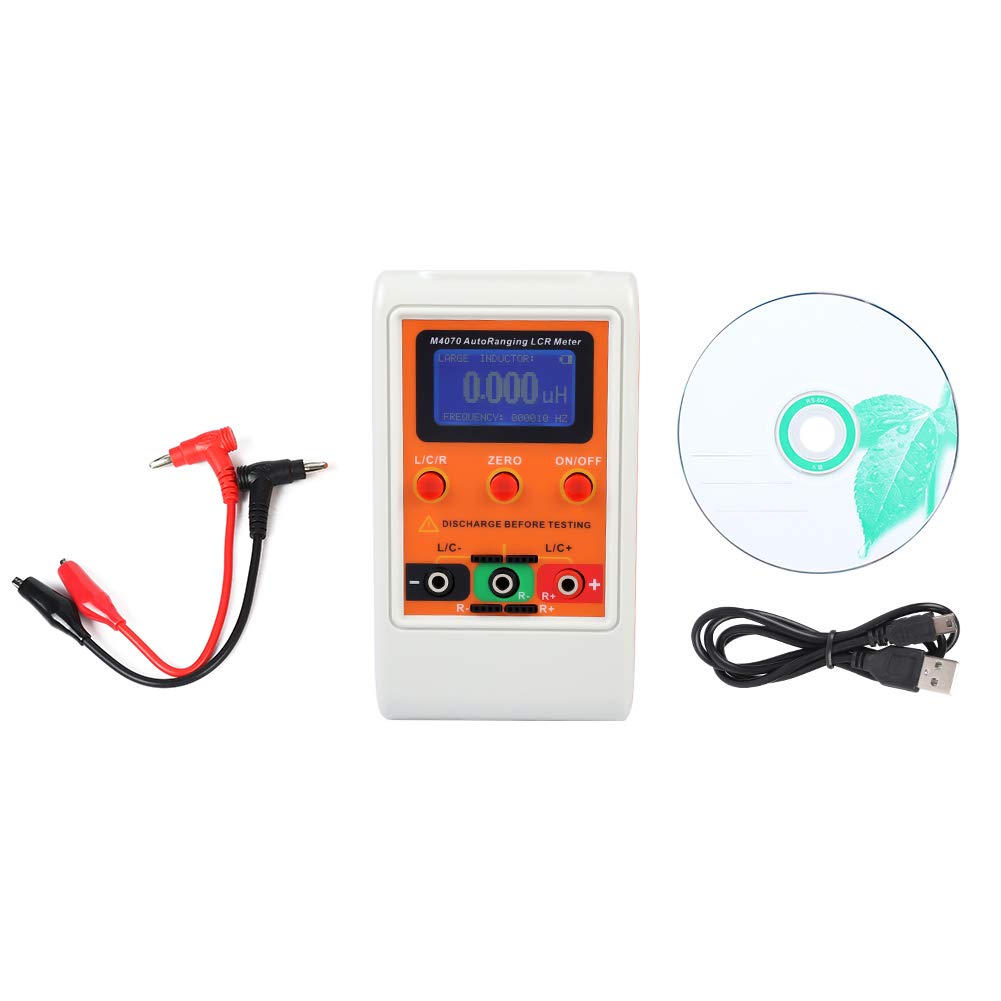

Package list: 1 x M-4070 Meter 2 x crocodile clip cable 1 x USB cable 1 x manual 1 x CD
