Specification: DS3225MG RC hobby servos are designed for remotely operating model vehicles,such as cars,airplanes,and robots provides the functionality of a light weight standard-sized servo, high-speed big torque, water-resistant,sensitive,responsive; It features an all-metal gear train,digital control electronics,and two ball bearings on the output shaft for reduced friction, and it offers easy access to the rest-point adjustment potentiometer,making them great actuators for robotic projects new item is a very good choice for students and hobbyists. It will not let you down! Electrical Specification： Operating voltage range: 4.8 – 6.8V Operating speed ( 5.0V ): 0.15 sec/60 degree Operating speed ( 6.8V ): 0.13 sec/60 degree Stall torque ( 5.0V ): 21kg/cm Stall torque ( 6.8V ): 25kg/cm Control Specification: Control System: PWM(Pulse width modification) Pulse width range: 500~2500 μsec Neutral position: 1500μsec Running degree: 180° (when 500~2500 μsec) Dead band width: 3 μsec Operating frequency: 50-330Hz Rotating direction: Counterclockwise (when 500~2500 μsec) Mechanical Specification: Gear ratio: 275 Bearing: Double bearing Connector wire: 17.7inches(450mm) Motor: 3-pole(s) Waterproof performance: IP66 Package: 1 x DS3225MG Digital Servo 1 x 25T Adjustable metal servo arm More options for you: 20KG Control Angle 180°,please search ASIN: B0769DFJVK 20KG Control Angle 270°,Please search ASIN: B076CNKQX4 25KG Control Angle 270°, please search ASIN: B07GK1G5FV 20kg Control Angle 270°(PRO Version), ASIN:B07KTSVSSJ 60kg Control Angle 270°,Please search ASIN:B07KTSCN4J

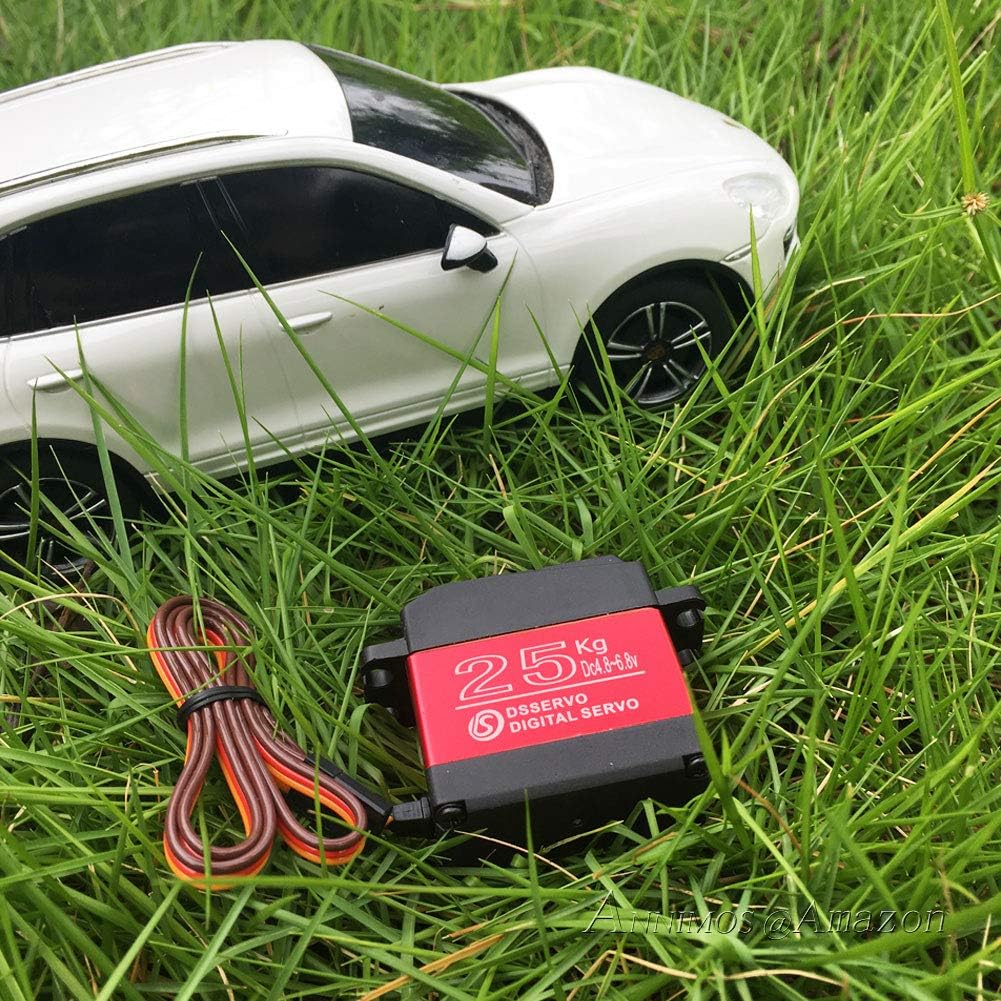

ANNIMOS 25kg RC Digital Standard Servo 1/8 1/10 1/12 Scales Large Torque High Speed Full Metal Gear Waterproof 180 Degree Control Angle
$60.99
- ▶New Model: 25kg Servos torque,higher speed
- ▶Power cord is longer up to 17.7inches(45cm),and also send with a 25T adjustable metal servo arm
- ▶Equipped with high precision potentiometers and high-resolution digital chip, ensure stable performance, fast response, strong anti-interference ability,low noise, fast heat dissipation
- ▶Best for your DIY Project: compatible with 1/8 and 1/10 scale crawler,truck,buggy,robotic arm,and any application where standard servos are used
- ▶Dimensions:1.57 x 0.78 x 1.59in (40 x 20 x 40.5 mm); Weight:2.64oz (75g)
In stock
Additional information
| Weight | 0.075 kg |
|---|---|
| brand | ANNIMOS |
| dimensions | 4 x 4.1 x 2 cm |
