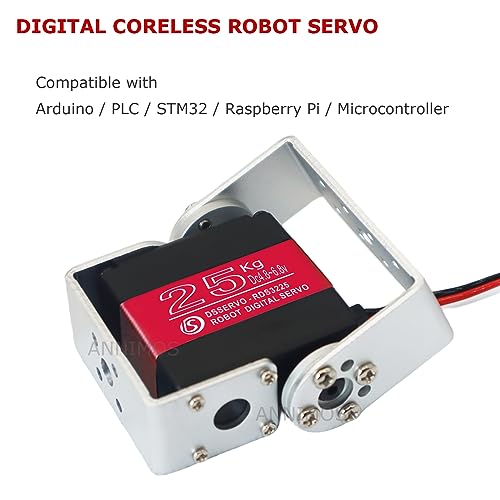

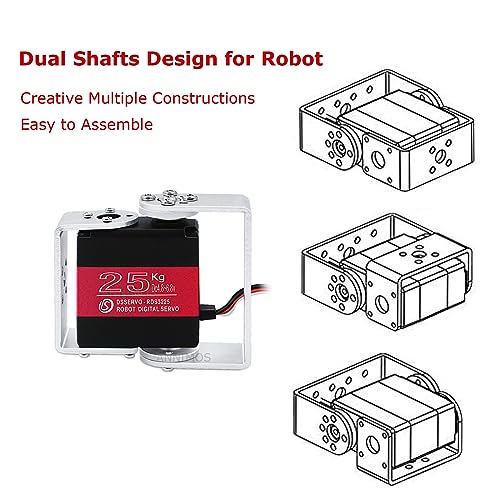

ANNIMOS 25KG Robot Servo Motor with Mount Brackets High Torque Waterproof Full Metal Gear Digital Steering Servos
ANNIMOS 25KG Robot Servo Motor with Mount Brackets High Torque Waterproof Full Metal Gear Digital Steering Servos - Image 2
ANNIMOS 25KG Robot Servo Motor with Mount Brackets High Torque Waterproof Full Metal Gear Digital Steering Servos - Image 3
ANNIMOS 25KG Robot Servo Motor with Mount Brackets High Torque Waterproof Full Metal Gear Digital Steering Servos - Image 4

ANNIMOS 25KG Robot Servo Motor with Mount Brackets High Torque Waterproof Full Metal Gear Digital Steering Servos

NZD $156.99

  • Widely Used: RDS3225SG 25kg Full Metal Gear Servo Suitable for Robotic Arm/Industry, Humanoid, Bipedal and Multipedal Robots, as well as PTZ Monitoring Equipment, Remote-Controlled Vehicles etc.
  • Great Heavy-Duty Servo: Amazing Torque & Fast Performance, Perfect for Industry and Robot Arms, Maximum Torque Can Up to 34.5kg.cm(479oz-in),Speed 0.17sec/60@6.8V
  • Reliable Quality: Equipped with High-precision Steel Gear and Potentiometers , High-resolution Digital Chip, Waterproof Rubber Seals Screws, Made of First-grade Material and CNC Aluminum Middle Shell Ensure Stable Performance and Long Working Life.
  • Best Upgrade for your RC Rigs: Durable, Responsive, Strong Anti-interference Ability, Low Noise, Fast Heat Dissipation. Precision Control, Angle Range from 0 to 270 Degrees. Can be Rotated within 360 Degrees when Power Off. Power Wire is longer Enough Up to 45mm. Free U-Brackets & Accessories.
  • Satisfied Customer Service: We Are Specialized in Developing and Manufacturing Robot & RC Servo, We Offer Value Price for Bulk Order. If Any Problem with Your Servo or Anything We Can Help, Please Do Not Hesitate to Contact with Us, We Will Try Our Best to Solve it Efficiently.

In stock

— OR  —

— OR  —

  • International Express shipping available
  • 30 day easy returns
Guaranteed Safe Checkout

on：
Operating voltage range: 5-6.8 Volts
Operating speed at no load ( 5V ): 0.2 sec/60°
Operating speed at no load ( 6.8V ): 0.17 sec/60°
Stall torque at locked ( 5V ): 29.5kg.cm(409.6oz-in)
Stall torque at locked (6.8V ): 34.5kg.cm(479oz-in)
Stall current at locked ( 5V ): 2.1A
Stall current at locked ( 6.8V ): 2.9A
Idle current at stopped (5/6.8V): 4/5mA

Control Specification:
Control System: PWM (Pulse width modification)
Pulse width range: 500-2500μsec
Neutral position: 1500μsec
Running degree: 270° (when 500-2500μsec)
Dead band width: 3μsec
Operating frequency: 50-330Hz
Rotating direction: Counterclockwise (When 1500-2500μsec)

Product Specification:
Motor Type：3-pole(s)
Gear Type:Metal Gear
Spline:25 T
Gear ratio: 342
Bearing：Double Bearing
Waterproof Performance：IP66
Connector Wire: 17.7in (450mm)
Size: 15.7*7.8*15.7inch（40* 20 * 40mm）
Weight: 2.1oz (60g)
CE /RoHs: Yes

Packing List:
1 * RDS3225SG 25kg Robot Servo (270°)
2 * Brackets (Long Aluminum Holder & Short Aluminum Holder)
2 * 25T Circle Holders (As Shown on The Picture)

Additional information

Weight 0.1 kg
Brand

ANNIMOS
SKU: B0C69NNP9P Category: Tags: , , ,
