Electrical Specification: Operating voltage range: 5-7.4V Operating speed ( 5.0V ): 0.1 3sec/60 degree Operating speed ( 6.0V ): 0.12 sec/60 degree Operating speed ( 7.4V ): 0.11 sec/60 degree Stall torque ( 5.0V ): 29kg/cm Stall torque ( 6.0V ): 32kg/cm Stall torque ( 7.4V ): 35kg/cm Control Specification: Control System: PWM(Pulse width modification) Pulse width range: 500~2500 μsec Neutral position: 1500μsec Running degree: 270° (when 500~2500 μsec) Dead band width: 3 μsec Operating frequency: 50-330Hz Rotating direction: Counterclockwise (when 500~2500 μsec) Mechanical Specification: Gear ratio: 373 Bearing: Double bearing Connector wire: 17.7inches(450mm) Motor: 3-pole(s) Waterproof performance: IP66 Package: 1 x DS3235SSG Coreless Servo 1 x 25T Adjustable metal servo arm One set of accessories We have more servos for your choice: ▶20KG Control Angle 180°,please search ASIN: B076CNKQX4 ▶20KG Control Angle 270°,please search ASIN: B0769DFJVK ▶25KG Control Angle 180°,please search ASIN: B07GJ6ZCVY ▶25kg Control Angle 270°, please search ASIN: B07GK1G5FV ▶60kg Control Angle 180°,Please search ASIN: B07KTS4L94 ▶60kg Control Angle 180°,Please search ASIN: B07KTSCN4J

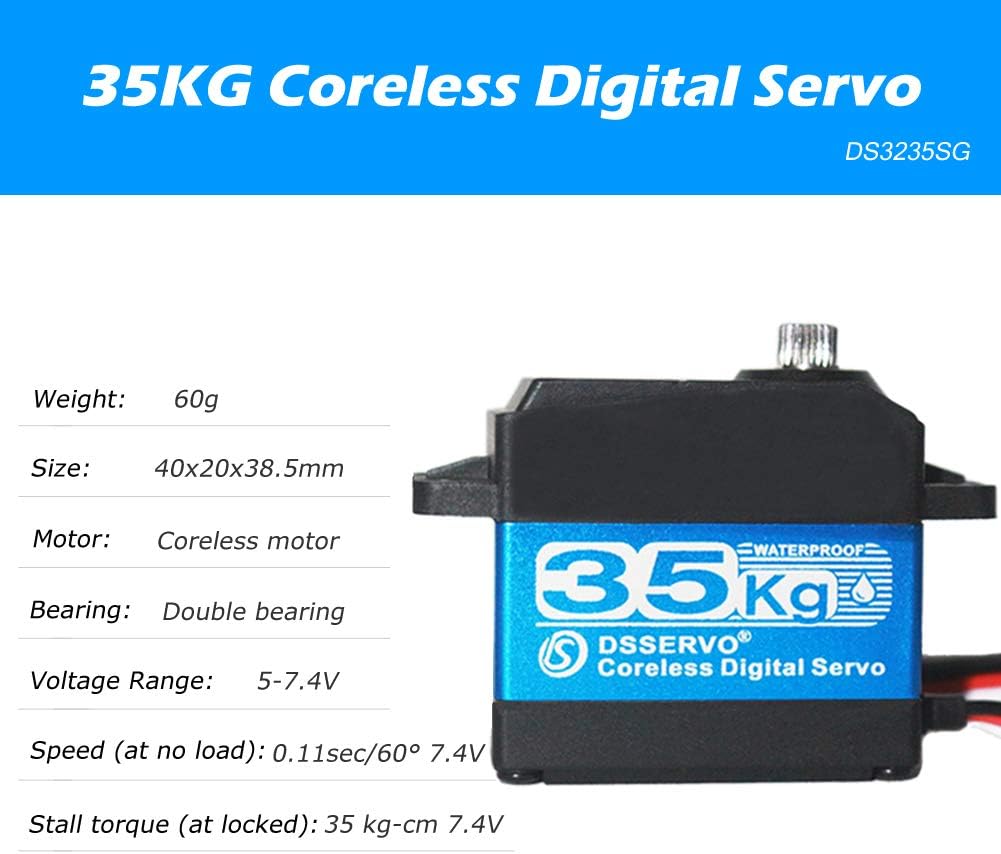

ANNIMOS 35KG Coreless Digital Motor Servo 7.4V High Speed Stainless Steel Gear High Torque Waterproof Standard Baja Servos
$98.99
- Best rc servo upgrades,ideal for 1:10/1:8/1:12 robot or r/c crawlers
- Operating speed:0.07sec/60°;Stall torque:25.5kg-cm (at 7.4V)
- Coreless motor driven provides high speed, incredible efficiency, and low power consumption

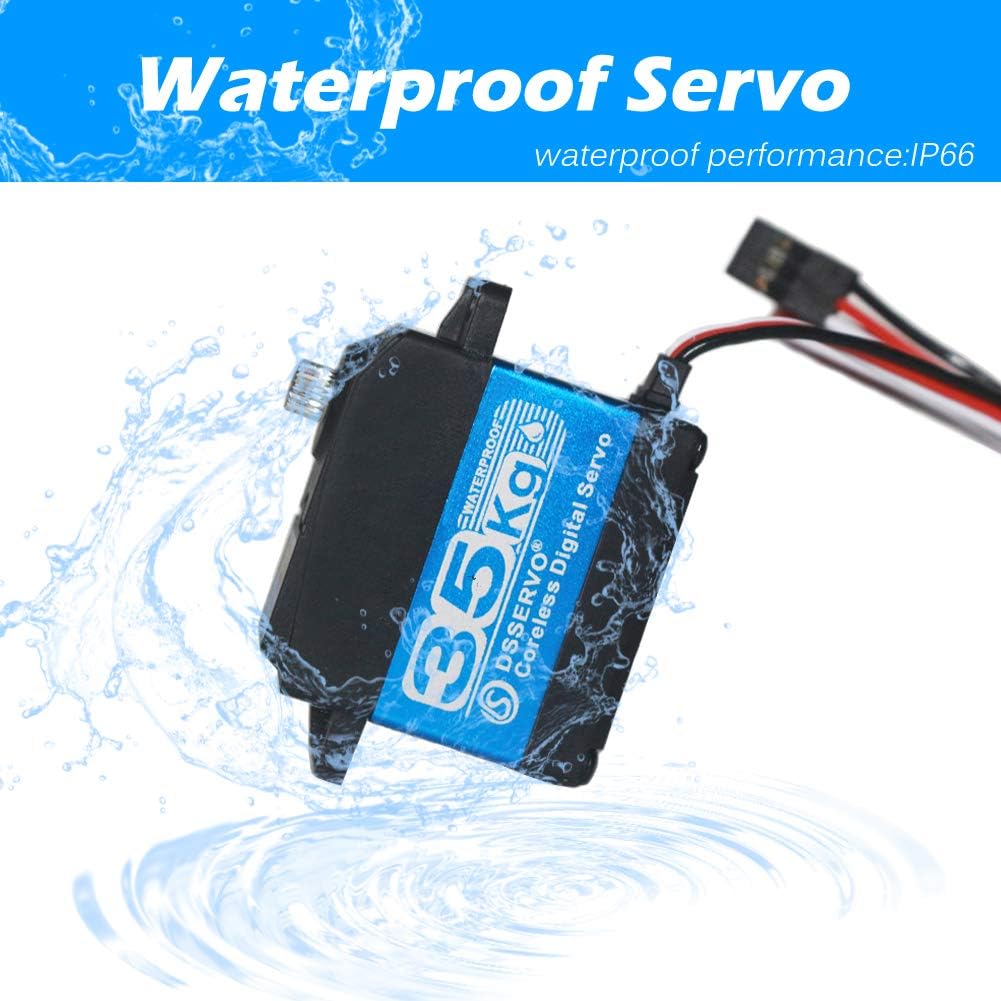

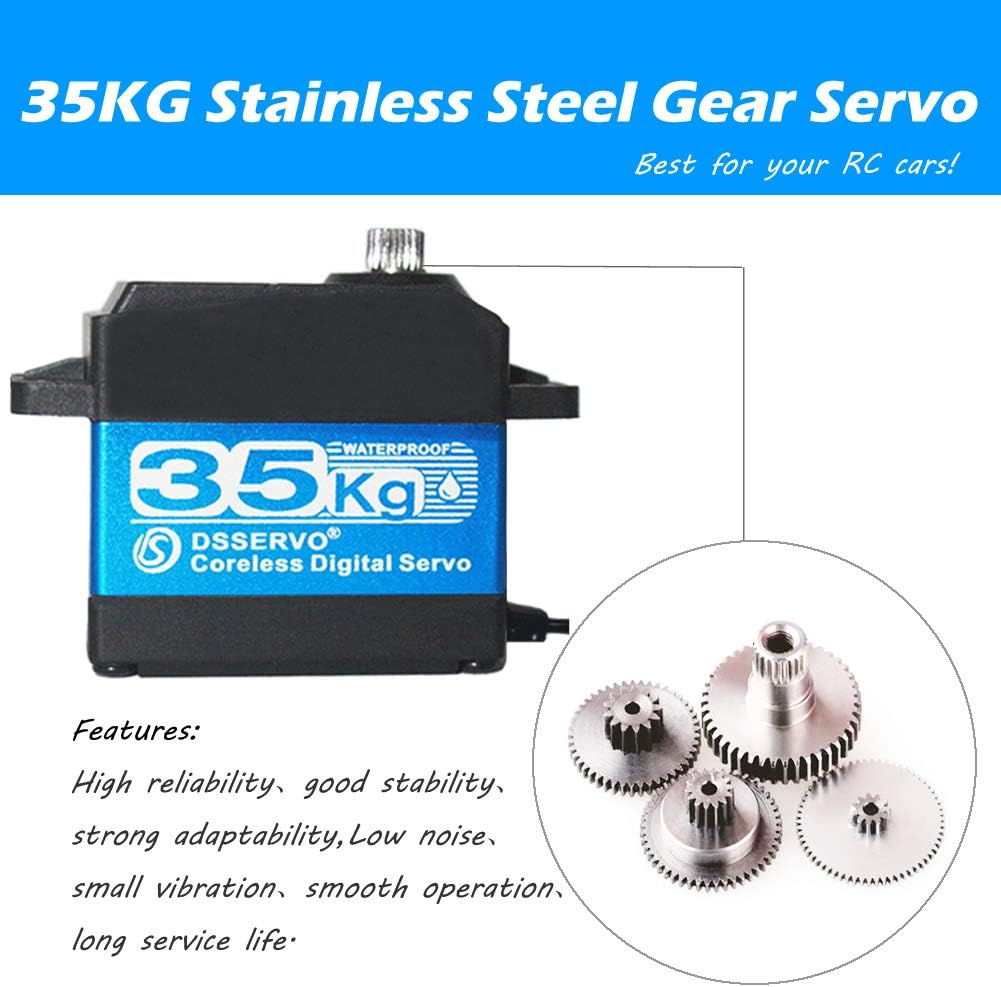

- IP66 waterproof performance for worry free operation;extremely strong unique stainless steel & Aluminum gears ensure long life and durability
- Super light-weight,small size but strongnsions:40x20x38.5mm,weight: 60g
In stock
Additional information
| Weight | 0.08 kg |
|---|---|
| brand | ANNIMOS |
| dimensions | 6.1 x 6.1 x 3.2 cm; 60 Grams |
