Description:
Designed to protect the potentially dangerous electricity supply in the most arduous of conditions, the Aodoka range of IP rated weatherproof wiring accessories offer the best solution to safe outdoor power. The Aodoka double Pole 2 Gang 13 amp Switch Socket is IP66 rated for protection against water ingress. It has a robust, high impact UV stable switch housing for 360° protection and safety.
The Aodoka Socket is easy to install. It has clearly marked terminals with backed out captive screws. There is a choice of cable entries on four sides of the housing to cover all cable entry requirements. There are 2 rubber wall fixing seal covers to ensure protecction against water ingress. (Wall fixings are not supplied)
All cable entries in the four sides have removable blanking caps. There is also a drill out entry on the rear face. A choice of 2 Earth terminals are located inside the mounting box for ease of installation and safety.
Specifications:
Voltage: 220-240V AC
Frequency: 50Hz
Maximum Amperage: 13A
Max Wattage:3000W
RCD Trip Current:10mA
RCD Trip Seed:<40ms
IP Rating : IP66
IP Rating with Drain Hole : IP55
Package Contents:
1 x Weatherproof Socket
2 x rubber wall fixing screw seal covers
1 x Instruction Leaflet
Aodoka Outdoor Sockets Weatherproof Double Socket, Wall Electrical Outlets, IP66 Switched Socket Covers,13A Outdoor Wall Waterproof Plug Socket Box
$54.99

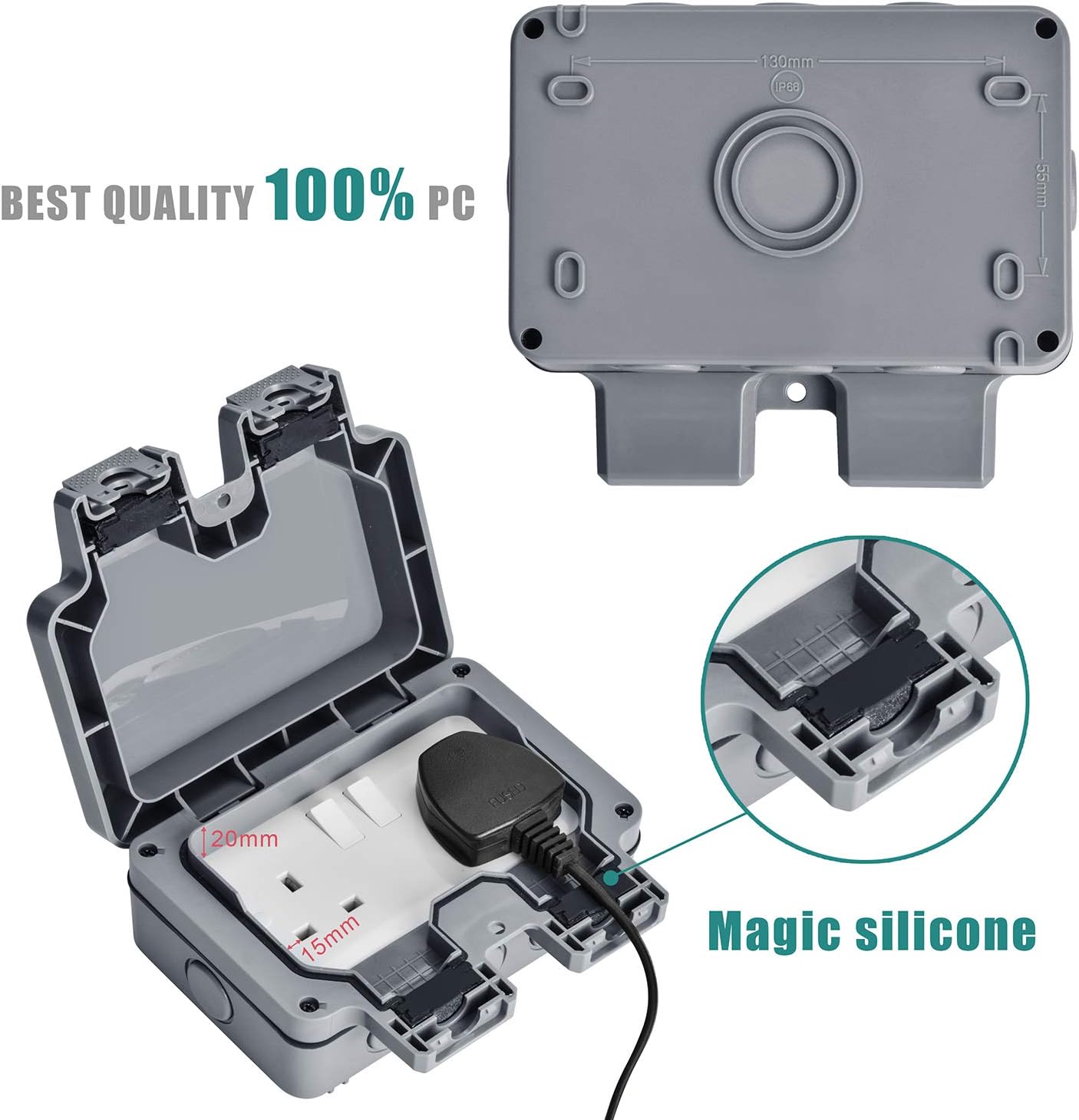

- 【IP66 WATERPROOF】This outdoor double socket using high quality 100% PC Shell mold material, UV protection, corrosion resistance. the Robust waterproof sockets product is installed vertically and is guaranteed to be closed. The waterproof rating can reach IP66.
- 【PARAMETER FUNCTION】The Outdoor Sockets Weatherproof IP66 rated 2 gang 13 amp Double Pole Switch，The rated voltage is 220V-240V. The nominal current is 13 A, the contact resistance 100 MΩ and the insulation resistance 50 MΩ.

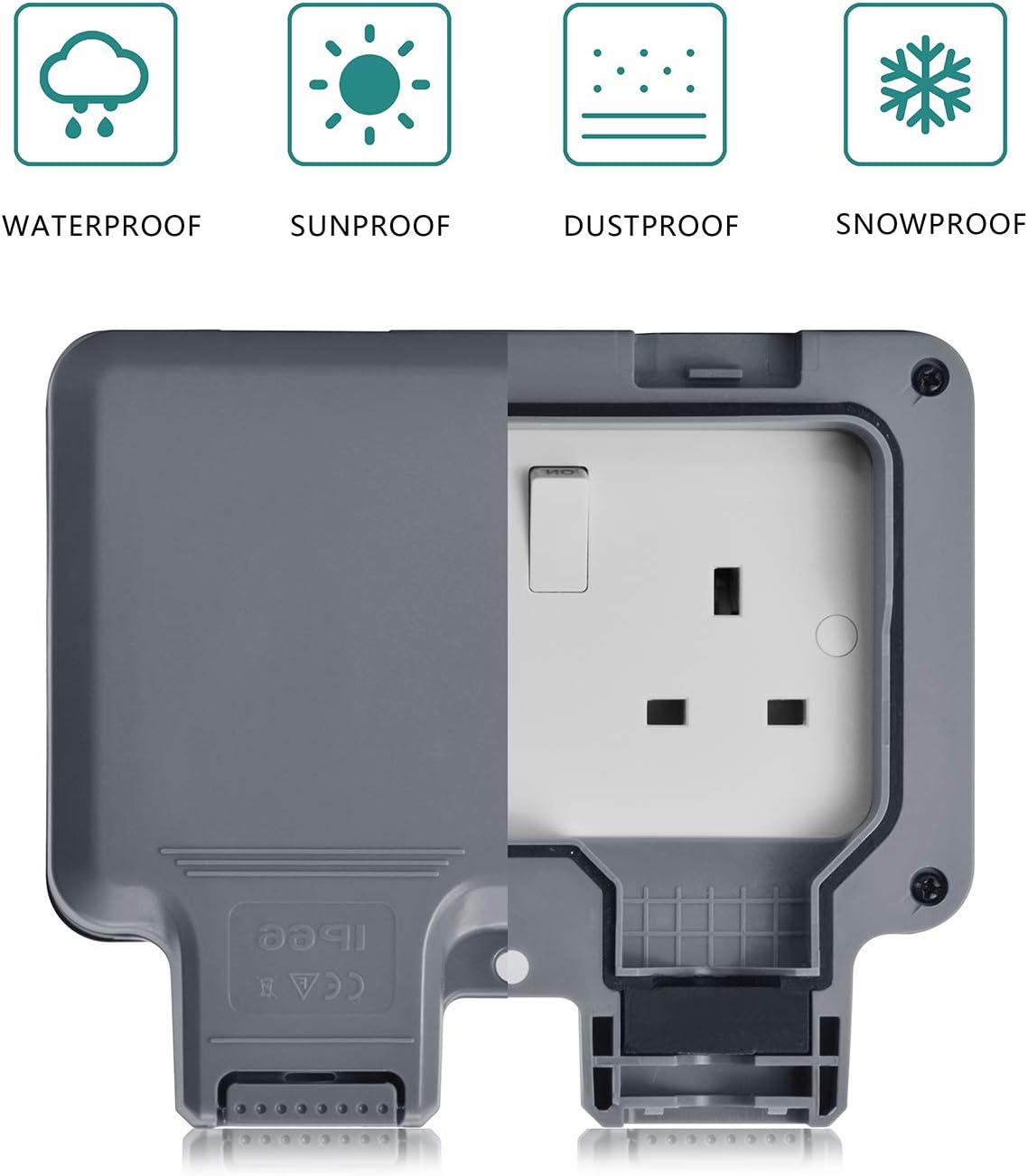

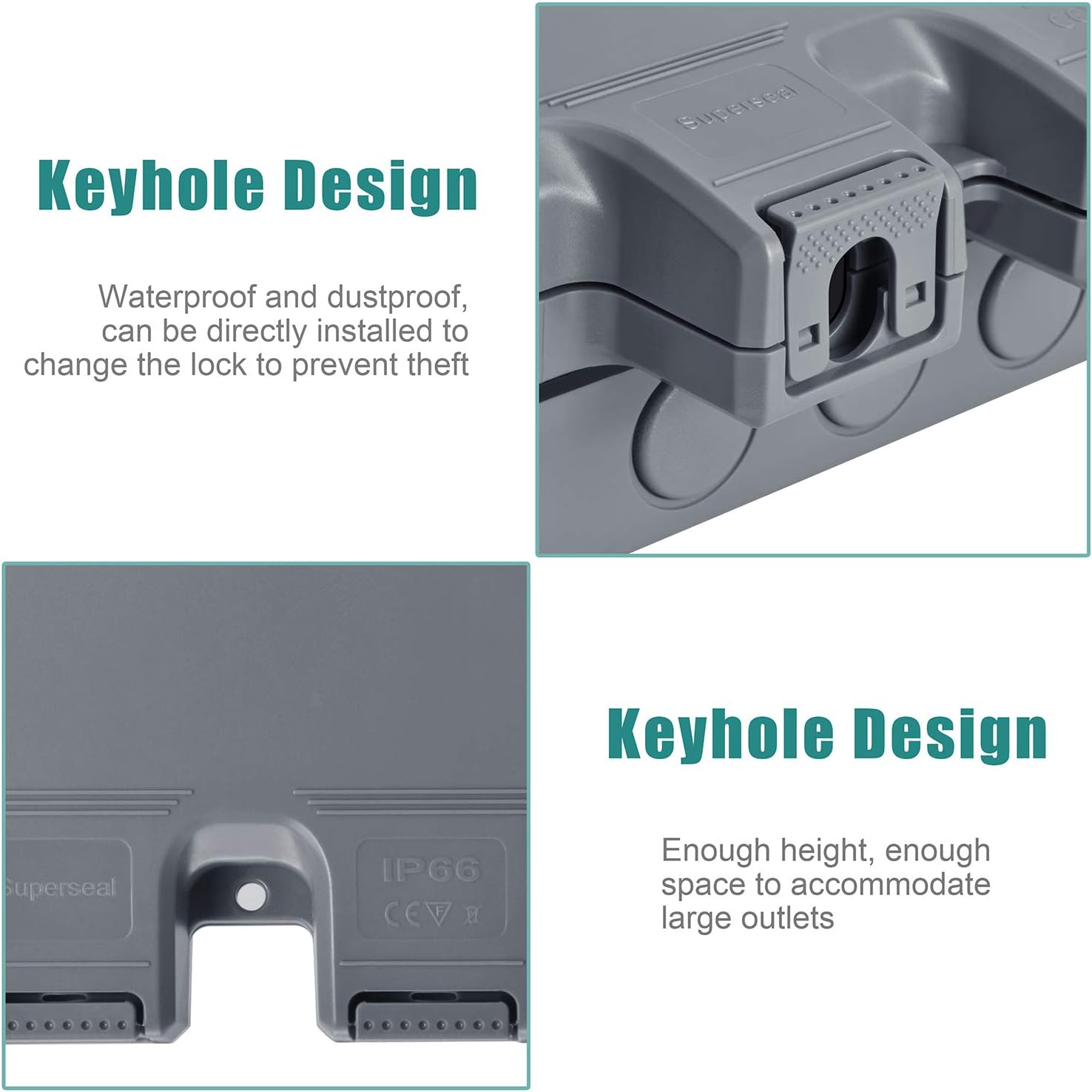

- 【SAFE AND CONVENIENT TO USE】The outdoor waterproof, dustproof and stormproof double socket uses a padlock design, Independent double switch socket. which can be opened at any time when electricity is needed.
- 【USER-FRIENDLY DESIGN】With clearly marked terminals with backed out captive screws, for easy installation, and all cable entries in the four sides have removable blanking caps.
- 【APPLICABLE OCCASIONS】Parks, Gardens, Workshop, Garages, Warehouse, Indoor Outdoor and other wet places. (Note: It is best to ask a professional electrician to install to ensure the safety of electricity.)
In stock
Additional information
| Weight | 0.66 kg |
|---|---|
| brand | Aodoka |
| dimensions | 17.78 x 15.24 x 9.65 cm; 660 Grams |
