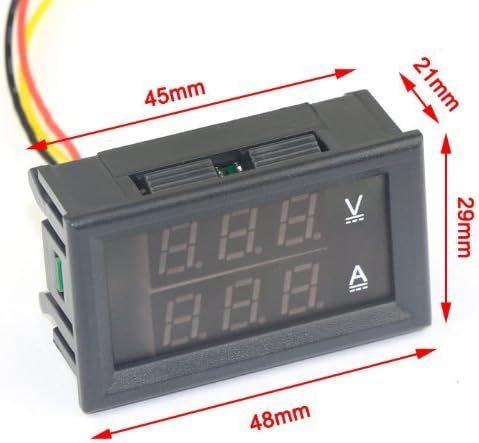

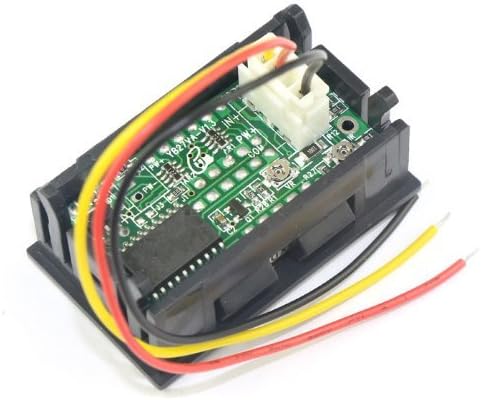

Features: Dual LED: Red voltage, Blue current, Display Voltage Current at same time This panel meter is common ground design, it means that the (measure ground wire) and (power supply ground) is common ground. Power Supply DC 4.5-30V. With reverse polarity protection, but the max power supply can not exceed 30VDC. Specific: Power Supply (Measure Voltage): DC 4.5-30V voltage voltage >= 10V, resolution: 0.1V Measure Current: 0-50A forward current (need an extra 50A shunt for measuring current) Current Resolution: 0.1A Operating Current: Display: 0.28 “LED Dual-color (red and blue) Dimensions: 48 x 29 x 21 mm Cutting Size: 45 x 26 mm Measurement rate: ≥ 500mS / times Accuracy: 1% (± 1 digit) Operating Temperature: -10°c ~ +65°c Operating Humidity: 10 ~ 80% (non-condensing) Working pressure: 80 ~ 106kPa Wire Connection: COM: Black wire,Power Supply – , Measure Voltage – PW+: Red wire, Power Supply +, Measure Voltage + IN+, Yellow wire, Measure current input. if use the voltmeter function only, please connect the Yellow wire and black wire together to avoid the Interference More detailed please check the description picture.

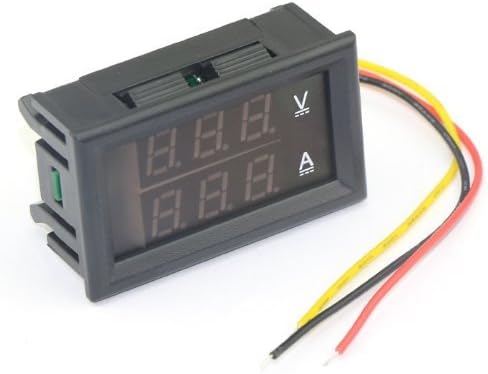

ARCELI 100174 Digital Multimeter Dual LED Display Voltmeter DC 4.5V to 30V Ammeter 0 to 50A Voltage Current Meter Volt Amp Panel Monitor for Auto Car Motor
$42.99
- Make sure this fits by entering your model number.
- Three-digit 0.28 ” LED dual display, red display for voltage, blue for current, needs an extra 50A shunt for measuring current.
- Measuring range is DC 4.5-30V/0-50A, can be calibrated;commonly used for automotive, camper,solar system, electrical bike etc.
- Decimal point would move automatically in accordance with different tested voltage.
- Gains power from tested circuit and requires no extra power supply.
- With reversed-connection protection to avoid burning when connected reversely.
In stock
Additional information
| Weight | 0.03 kg |
|---|---|
| brand | Brand: ARCELI |
| dimensions |
