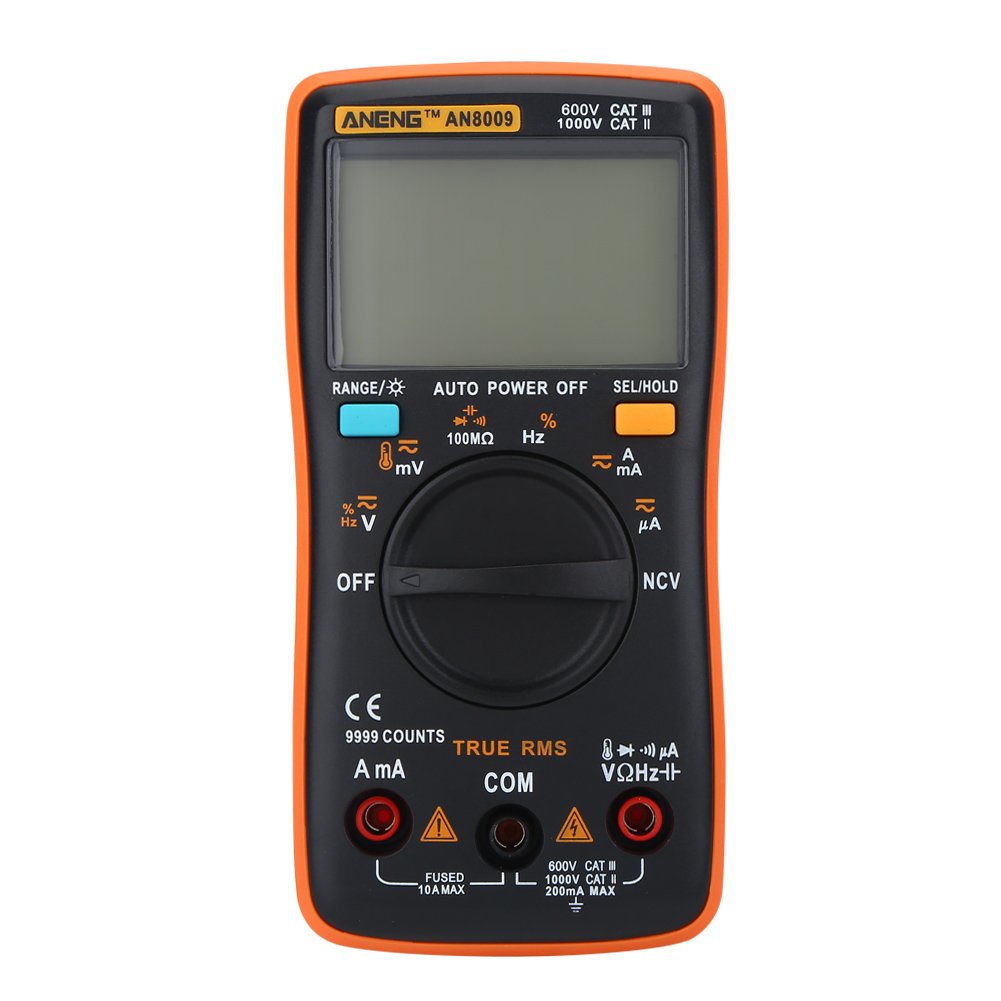

Auto Range Multimeter, AN8009 Digital Multimeter Auto Range True RMS AC/DC Voltage Electronic Meter for Various Electrical Tests

ata: model number: AN8009 Colour: Orange Operating Temperature: 0 – 40°C. Operating humidity: ≤ 75% relative humidity. Storage conditions: -20 ~ 60°C. Storage humidity: ≤ 80% relative humidity. DIY needs: Electric operating mode: Auto/Manual Range Measuring Inductance Range: No Measuring Temperature Range: -20~1000C/-4F-1832F Measuring Capacity Range: 9.99 nF/99.99 nF/999.9 nF/9.99 uF/99.99 uF/999.9 uF/9.99 mF Measuring voltage range: 999.9mV/9.999V/99.99V/999.9V Measuring Current Range: 60mA/600mA/10A Measuring Resistance Range: 99.99/999.9/9.999k/99.99k/999.9K/999.9M Frequency: 99.99 Hz/999.9 Hz/9.999 kHz/99.99 kHz/999.9 kHz/9.999 MHz. Rectangular wave output: 50Hz/100Hz/200Hz/300Hz/400Hz/500Hz/600Hz/700Hz/800Hz/900Hz/1000Hz DC/AC Voltage (mV): 9.999mV/99.99mV DC/AC Voltage (V): 999.9mV/9.999V/99.99V/750ACV (999.9DCV) DC/AC current (mA A): 999.9mA/9.999A DC/AC Current (uA): 99.99 μA/999.9 μA. Display type: Digital display diode test: Yes Continuity: Yes Working cycle: 1% -99%. Sampling rate: 3 times per second. Power supply: 2 x 1.5V AAA batteries (not included) Quantity: 1 piece. Size: Approx. 130 x 65 x 30 mm / 5.12 x 2.56 x 1.18 inches. Weight: 347 g. Warning: Do not use the product if the batteries or the battery cover are not inserted correctly; the input voltage does not exceed 36 V DC or 25 V AC when you set the measuring current. Package includes: 1 x multimeter, 1 x test lead + temperature sensor, 1 x 16 in 1 multifunctional test line, 1 x bag, 1 x user manual (English language not *)
