Features: Our ESR meter only applies less than 15mV DC or peak to peak on a good capacitor, as a result we can use it as in circuit test. During repairing TV, LCD, Audio board, etc. we can in circuit testing the capacitor is good or not. Dual terminal, for fast and easy inspect general capacitor or resistor, a printed ESR table for fast check. Specifications: Range
Accuracy (After Zero, tested with 1,10,100R resistor)
Refresh Time (Manual Mode)
*Auto mode take 0 to 2s more time depend on value
0.000 to 1.000R
1%+2Digit
0.4s
1.000 to 10.00R
1%+1Digit
0.4s
10.00 to 100.0R
2%+1Digit
0.4s
Accuracy
Up to 1% (detail on above table) Wide Measurement Range: >1uF (for 0.1uF the error will be larger on equation 1/(2*pi*F*C) @ 100Khz )
High Resolution
4 digit, or 0.001Ohm @ 1 Ohm range
Measuring voltage
80 Hours
Operating current
0.02A

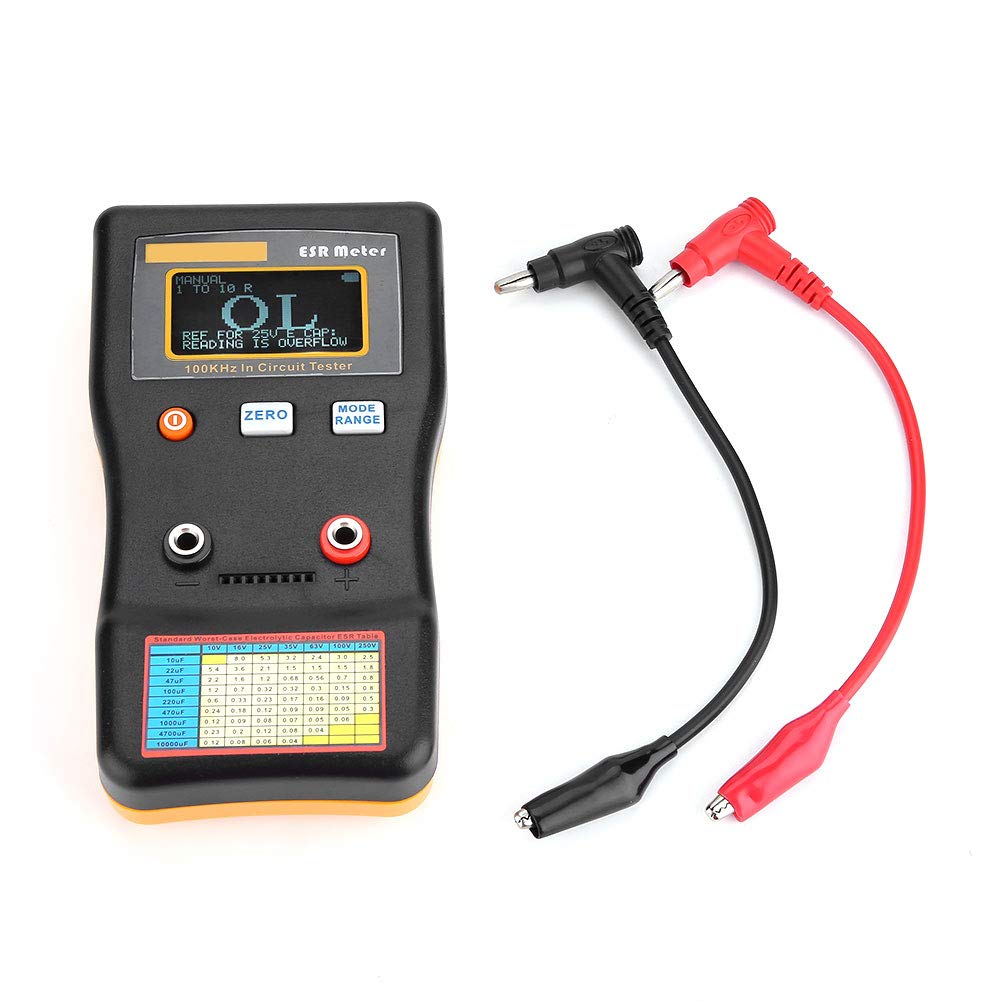

Auto Ranging In Circuit Tester ESR Capacitor Resistance Capacitance Meter Diode Triode Capacitance Inductance Multimeter Components Tester
$215.99
- 【Product Description】:This ESR capacitance meter is a series resistor inside capacitor, using 100kHz to remove the impedance 1/(2*pi*F*C)
- 【Reliable Performance】:Our ESR meter only applies less than 15mV DC or peak to peak on a good capacitor, as a result we can use it as in circuit test
- 【Function】:Using this theory, we can measure the capacitor is bad/ damaged or good in condition
- 【Product Features】:The impedance become small, and we can then measure the true series resistor value
- 【Application】:During repairing TV, LCD, Audio board, etc. we can in circuit testing the capacitor is good or not
In stock
Additional information
| Weight | 0.221 kg |
|---|---|
| brand | Oumefar |
| dimensions | 14.4 x 8.1 x 3.1 cm; 220 Grams |
