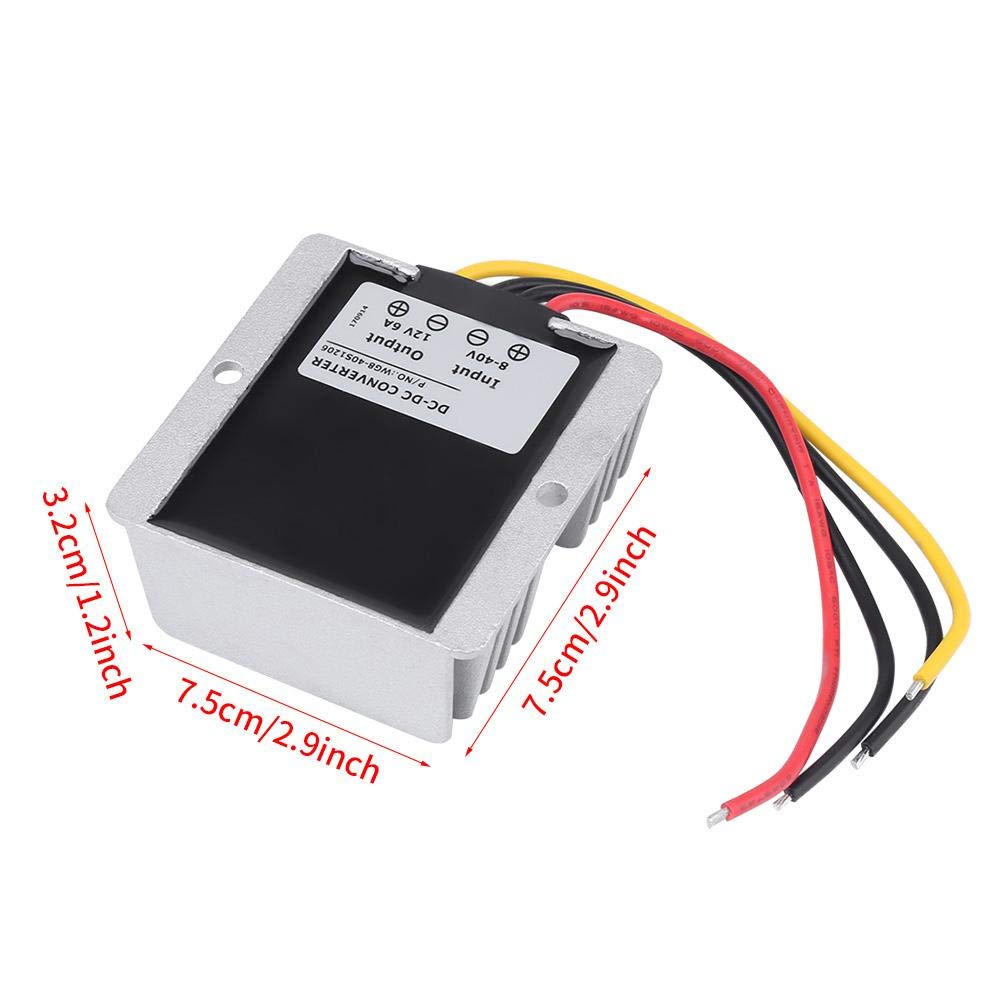

Specifications: Input Voltage Range———-8-40V DC Conversion Efficiency——–90% Output Voltage—————–12V Output Current—————–6A Rated Output Power———72W Peak Output Power————130% Voltage Regulation———–< 1% Load Regulation————–< 2% No-load Current————–< 25mA Ripple————————–< 150mV Operating Temperature——-( -40℃~+80℃ ) Ingress Protection Rating—–IP68 Over Current Protection————-YES Over Voltage Protection————-YES Over Temperature Protection——YES Short Circuit Protection————–NO Size————-7.5*7.5*3.2cm/2.9*2.9*1.2inPackage Includes: 1 x Voltage ConverterNote: Please be careful and connect wires correctly, otherwise the module will be damaged.
Auto UP/Down Converter Voltage Regulator Transformer Module for Car Vehicle Motor DC8V~40V to 12V 6A 72W
$61.99
- FUNCTION:This is a non-isolation DC regulated power converter module with long service life.
- FEATURES:High power and stable output, it converts 8V~40VDC to 12VDC.

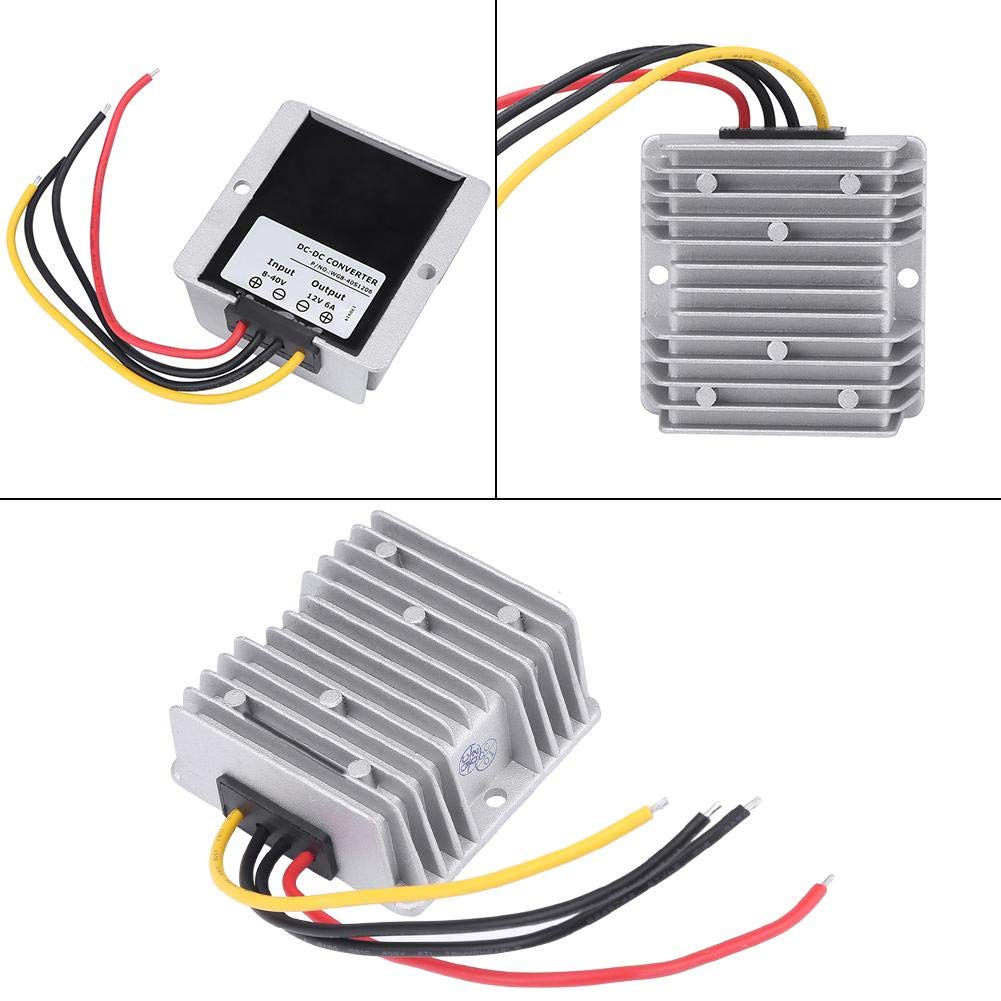

- EXQUISITE DESIGN：Aluminum alloy housing is small and easy to mount; sealed with silicone, it is waterproof(IP68), dust and vibration resistant.
- HIGH QUALITY：High quality components ensures high conversion efficiency, up to 90%.
- SAFE AND RELIABLE：Wide input voltage, it supports over current, over voltage, over temperature protection.
In stock
Additional information
| Weight | 0.273 kg |
|---|---|
| brand | Hilitand |
| dimensions | 12 x 10 x 4 cm; 273 Grams |
