Specifications: Brand: ANENG Model Number: AN8009 Orange color Operating temperature: 0 – 40°C Operating humidity: ≤75%RH Storage Condition: -20~60°C Storage Humidity: ≤80%RH DIY supplies: electric Operating Mode: Auto / Manual Measurement inductance range: no Temperature measurement range: -20 ~ 1000 C / -4F-1832F Capacity measurement range: 9.99.9 nF / 99.99 nF / 999.9 nF / 9.99.9FF / 9.999FF / 9.999FF Measuring voltage range: 999.9 mV / 9.9999 V / 99.9 V / 999.9 V Current measurement range: 60mA / 600mA / 10A Resistance measurement range: 99.99 / 999.9 / 9.9999 k / 99.9 k / 999.9 K / 999.9 M Frequency: 99.99Hz / 999.9Hz / 9.999KHz / 99.99KHz / 999.9KHz / 9.999MHz Square Wave Output: 50Hz / 100Hz / 200Hz / 300Hz / 400Hz / 500Hz / 600Hz / 700Hz / 800Hz / 900Hz / 1000Hz DC/AC voltage (mV): 9.9999mV / 100mm DC / AC voltage (V): 999.9 mV / 9.9999 V / 99.9 V / 750 V AC (999.9 DCV) DC/AC current (mA and H): 999.9 mA / 9.999 A DC/AC current (uA): 99.99μA / 999.9μA Display type: digital display Diode test: yes Continuity: Yes Duty Cycle: 1%-99% Sampling rate: 3 times per second Power supply: 2 x 1.5V AAA batteries (not included) Size: approx. 130 x 65 x 30 mm / 5.12 x 2.56 x 1.18 inches. Weight: 347 g Package includes: 1 x Multimeter 1 x Test conductor + temperature sensor 1 x 16 in 1 multifunctional test line 1 x Bag 1 x User Manual
Autoranging Multimeter, ANENG AN8009 Digital Multimeter Tester with Test Probes Voltage AC/DC Electronic Tester
$104.99

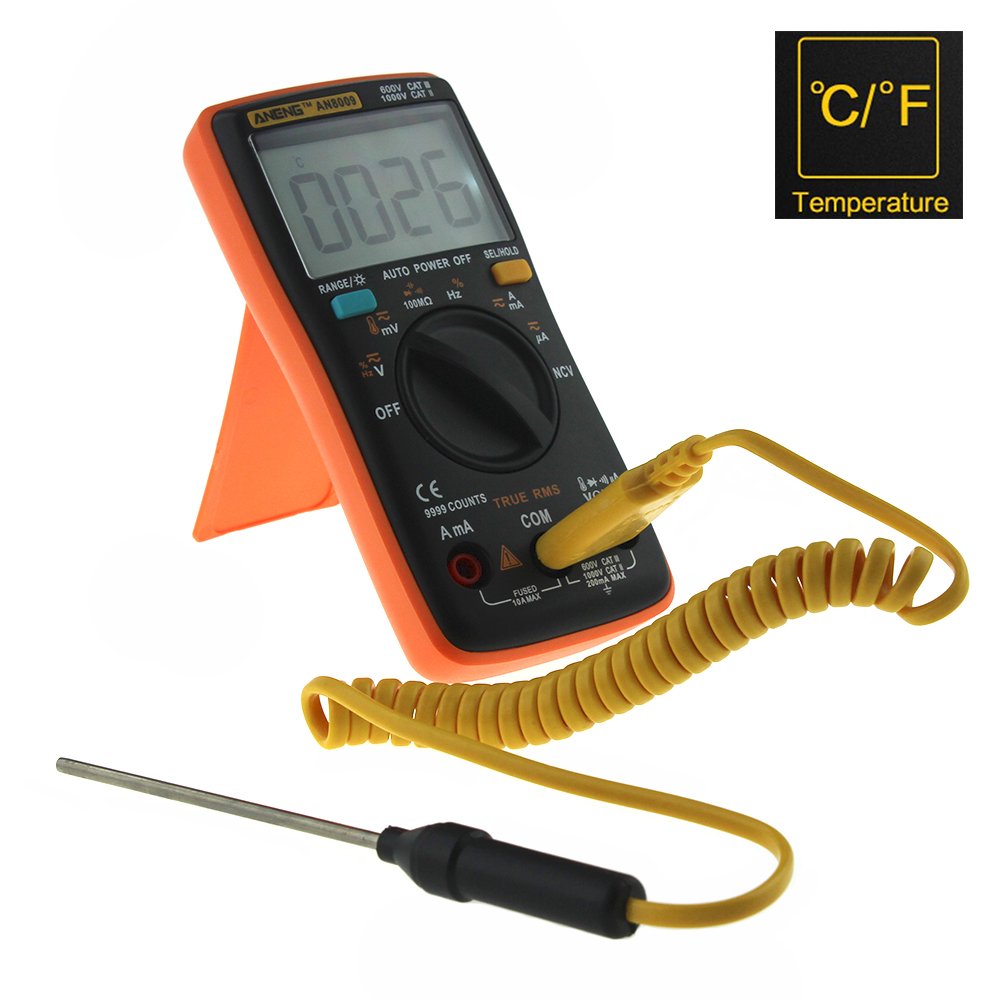

- Multifunctional electric meter. Voltage, Current, Resistance, Capacity, and Inductance, even temperature measurement and measurement are supported (temperature sensor included)
- Backlit Digital Display Large backlit LCD display, clear and backlit digits supported

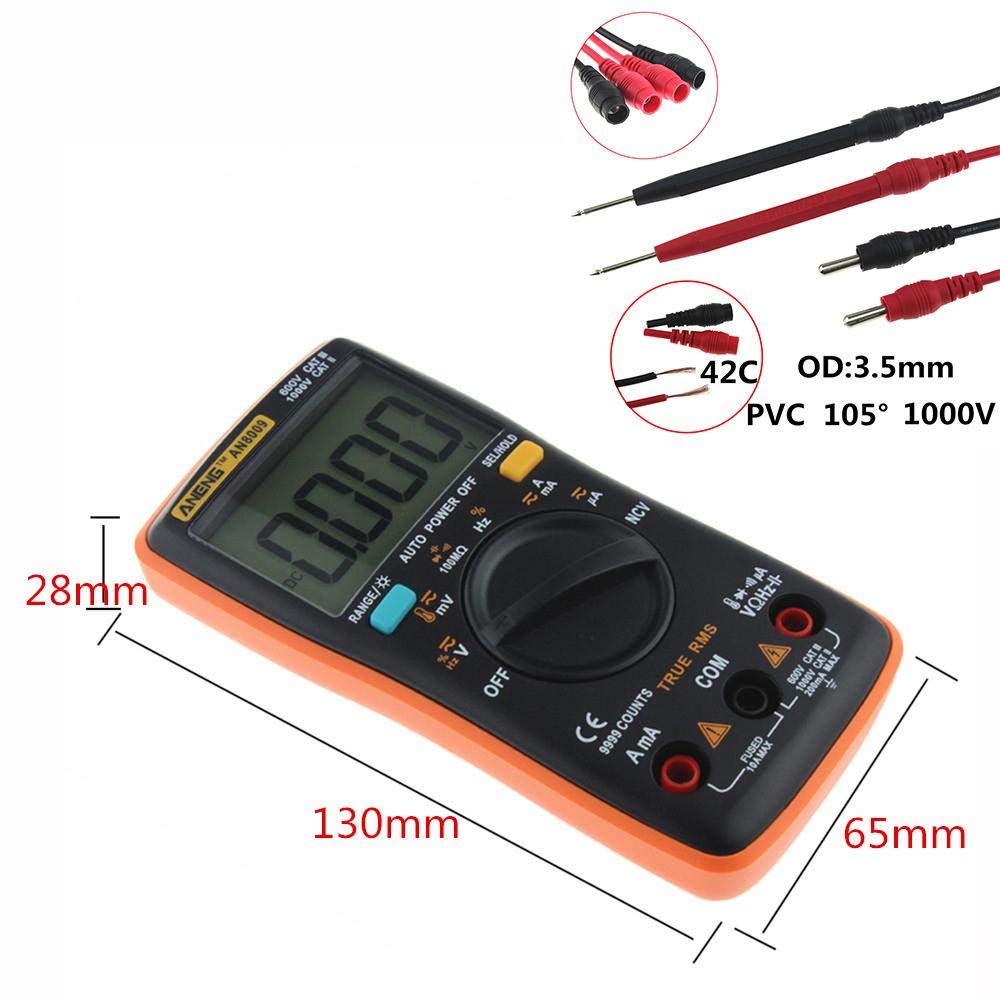

- Compact and portable ergonomic design. Multimeter size: 130 x 65 x 30 mm / 5.12 x 2.56 x 1.18 inches
- Accessories: multimeter cable, 16-in-1 multifunction test line, temperature sensor, user manual and storage bag
- Powered by 2 x 1.5V AAA batteries (not included)
In stock
