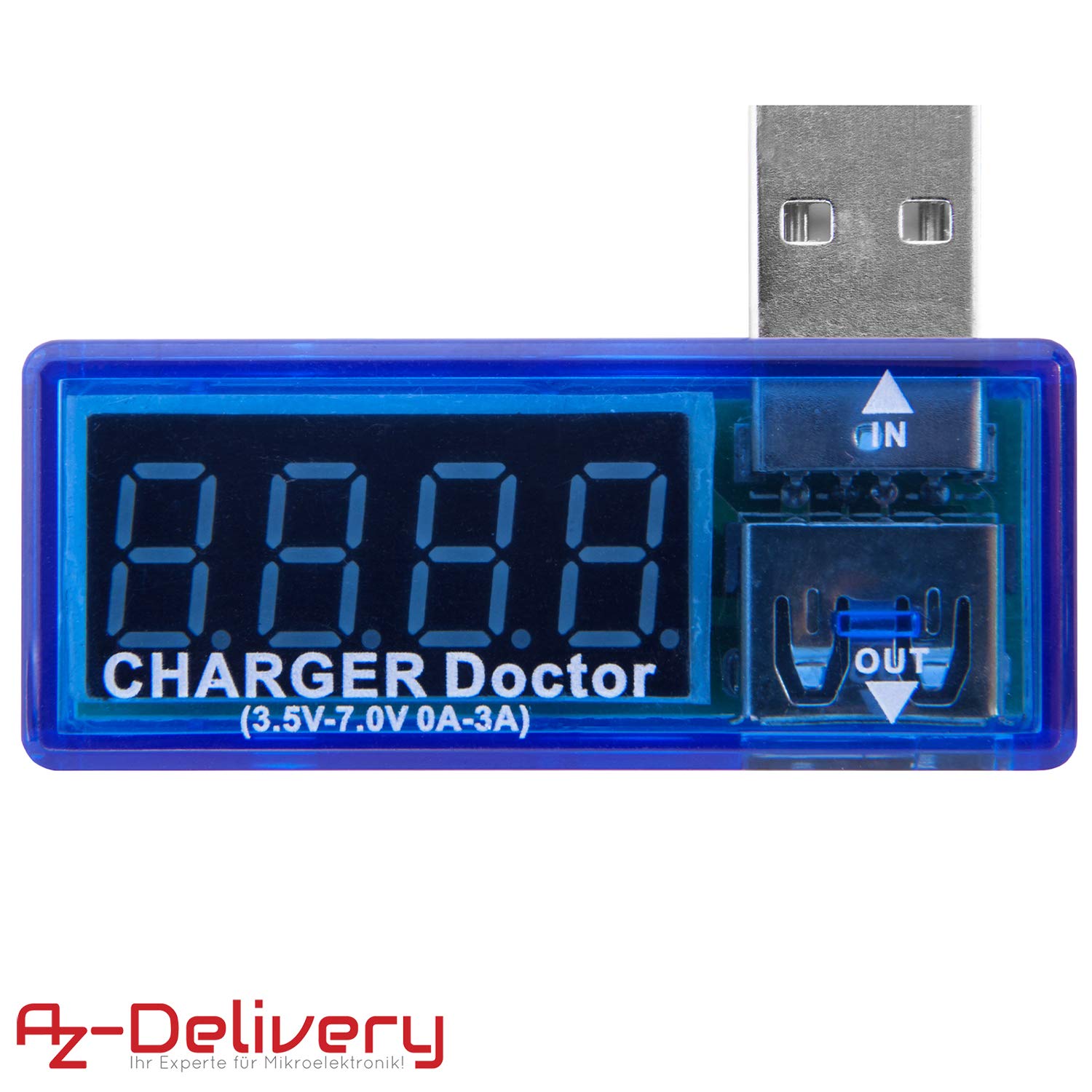

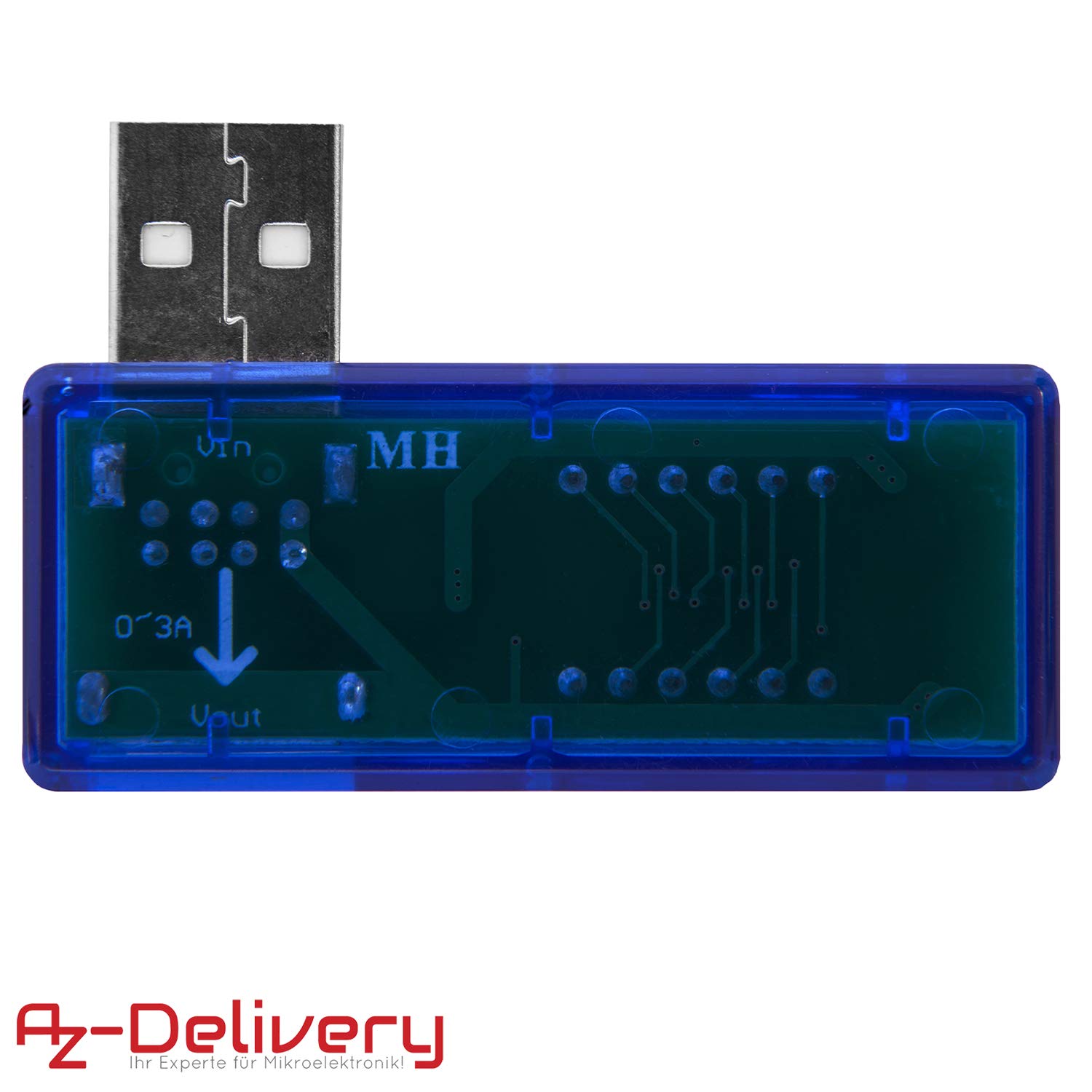

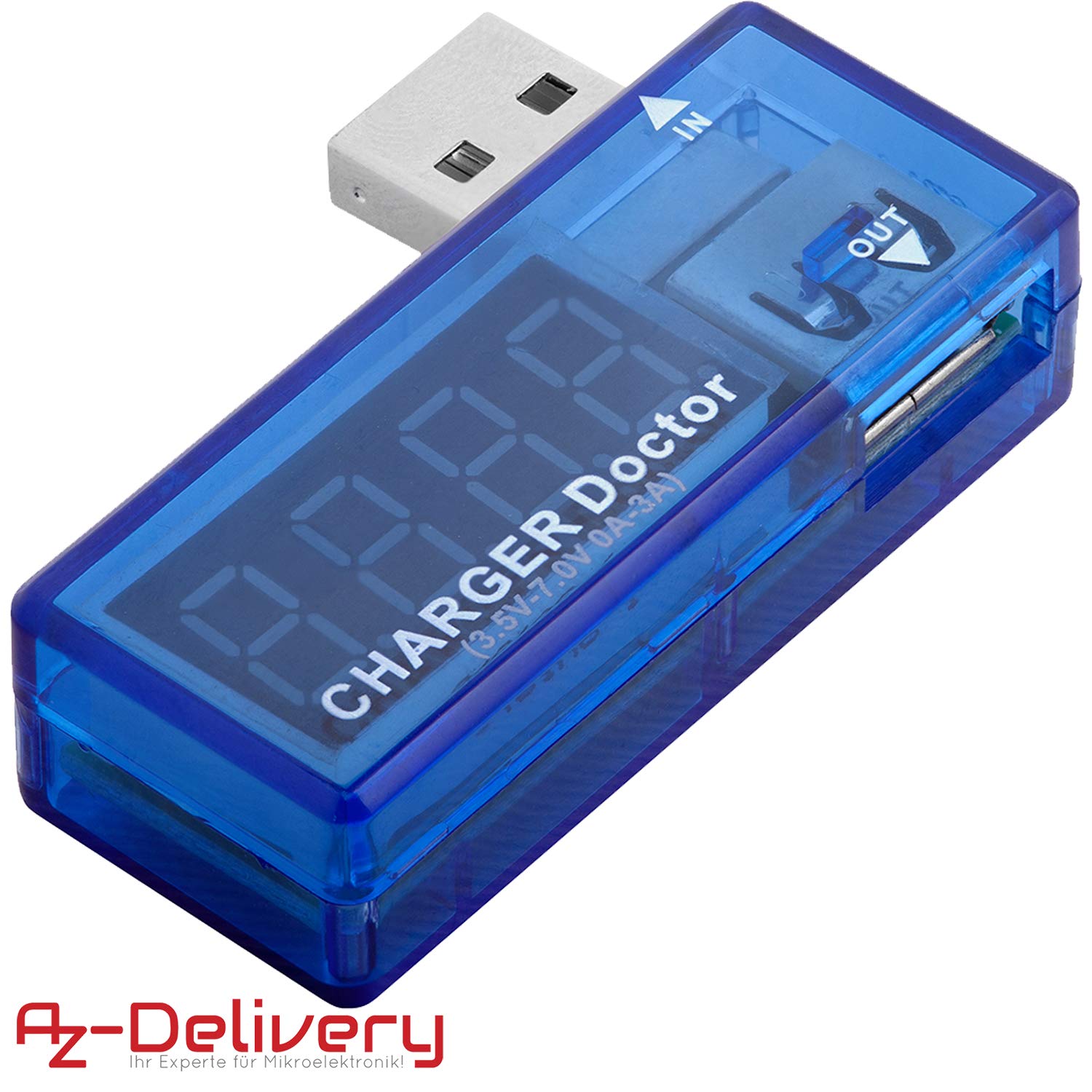

AZ-Delivery USB Charger Doctor Current Voltage Charging Detector Battery Voltmeter Ammeter Multimeter Tester is compact, lightweight device that will help you to measure the working voltage and current output for any USB port and project. This blue plastic dongle plugs between a USB device, and passes the data lines through. There’s a 0.05 ohm resistor in line with the power pin that is used to measure current draw. The Doctor’s digital display instantly reads the numbers out for testing devices such as chargers, cables, and cell phones. You can use this device from 3.5-7VDC input voltage (although most USB devices tend to hover around 4.75 to 5.25) and up to 3A of current. It flips between voltage and current readouts every 3 seconds or so. It’s a very handy tool for testing USB devices, checking load levels and debugging battery chargers and boost converters. AZ-Delivery ⭐⭐⭐⭐⭐ Your expert for microelectronics If you are looking for the high quality products for Arduino and Raspberry Pi, AZ-Delivery Vertriebs GmbH ⭐⭐⭐⭐⭐ is the right company to get it from. You will be provided with numerous application examples, full installation guides, eBooks, libraries and assistance from our technical experts.
AZDelivery 5 x USB Charger Doctor Current Voltage Charging Detector Battery Voltmeter Ammeter Multimeter Tester including eBook
$30.99
- ✔️ AZ-Delivery USB Charger Doctor Current Voltage Charging Detector Battery Voltmeter Ammeter Multimeter Tester checks the outgoing performance of your USB port to the end device and reads the current and voltage directly on the display in real time.
- ✔️ AZ-Delivery USB Charger Doctor can be used from 3.5 V – 7 V DC input voltage (although most USB devices tend to hover around 4.75 V to 5.25 V) and up to 3 A of current.
- ✔️ Dimensions of the AZ-Delivery USB Charger Doctor Current Voltage Charging Detector Battery Voltmeter Ammeter Multimeter Tester are approximately (LxWxH): 21 mm x 53 mm x 15 mm / 0.8″ x 2.1″ x 0.6″.
- ✔️ Our AZ-Delivery USB Charger Doctor supports USB 1.x and 2.x connections at all data speeds.
- ✔️ Welcome to the AZ-Delivery family! For top quality microelectronics, we are your go to. ⭐️⭐️⭐️⭐️⭐️We provide an array of application examples, full installation guides, eBooks, libraries, and all-round assistance. AZ-Delivery, your microelectronics expert.
In stock
Additional information
| Weight | 0.1 kg |
|---|---|
| brand | Brand: AZDelivery |
| dimensions |
