Description: Power Supply: DC Voltage 2.8V~6.0V,Typical:3.3V or 5.0V Consumption: Capture 50mA@5V Receiving Format: GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS Receiving Channel: 72 Searching Channel Receiving Sensitivity: Trace -167dBm , Capture-148dBm Positioning Time: Cold Start: avg26s , Warm Start: avg25s, Hot Start: avg3s Level Positioning Precision: 2m At Open Wind Output Frequency: 1Hz-10Hz,Default 1Hz Speed Precision: 0.1 m/s (Without Aid) Acceleration Precision :0.1 m/s (Without Aid) Dynamic Characteristics: Max Height:18000m, Max Speed:5153m/s, Max Acceleration:4G UART Interface: UART Port: TXDA and RXDA Support Rate: 4800bps to 115200bps,Default 38400dps Working Temperature: -40℃-+85℃ Storage Temperature: -40℃-+85℃ Size: 28mm x 28mm x 10mm Weight: 10g The Module’s Pins: SDA,GND,TX,RX,VCC,SCL Features: GPS Module, Dual Module Compass With electronic compass IC HMC5883L 1.25mm spacing between the 6pins patch seat Note: Can not use for flight control with SCM, but it is suitable for Open source flight controller Package Included: 1x GPS Module 1x 15cm Cable

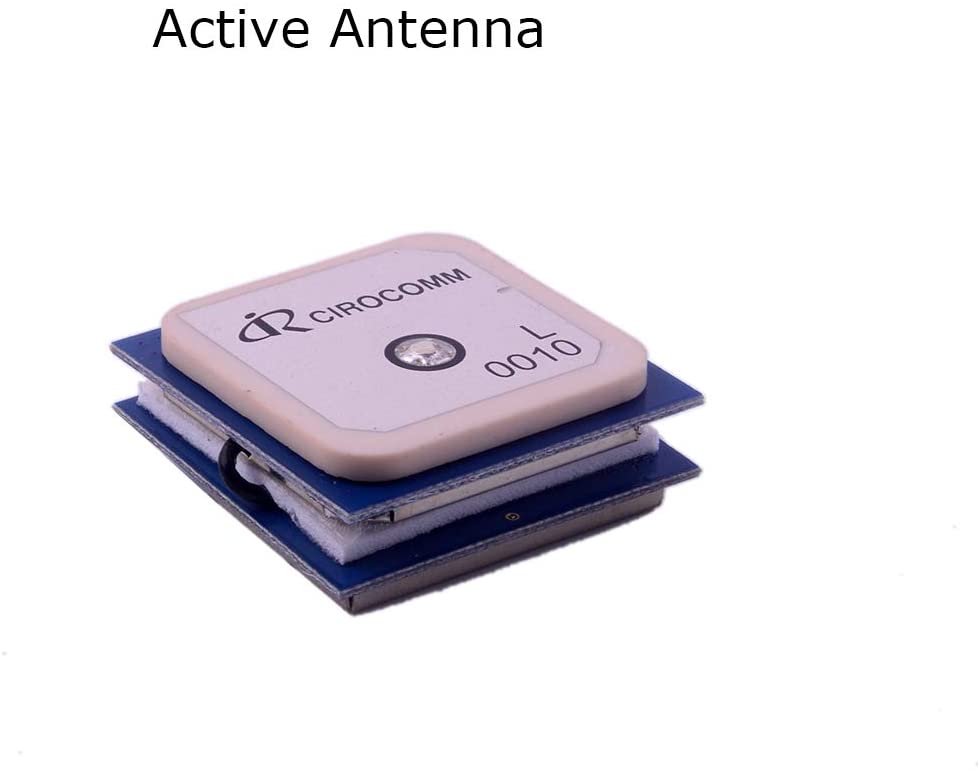

Beitian BN-880 GPS Module with Flash HMC5883 Compass Glonass Beidou + GPS Active Antenna for Arduino Pixhawk Flight Control DIYmalls
$107.99
- Make sure this fits by entering your model number.
- Beitian BN-880 is suitable for Open source flight controller, not for flight control with SCM. When you use it for Raspberry Pi, there is no driver needed but you need to install software
- This gps module has flash to save configuration. So you do not need to reset next time when you use it.
- Its data Level is TTL or RS-232,Default TTL level. To make it be RS232 output, you need to use one TTL to RS232 converter cable
- You can buy different gps module here, https://wwwon/stores/page/9E5CE14B-CD3E-4825-B8A3-9FB3965726E0
- If you have any problem, please contact seller as follow: click “DIYmaker”(you can find “Sold by DIYmaker” under Buy Now button), in the new page, click “Ask a question”.
In stock
