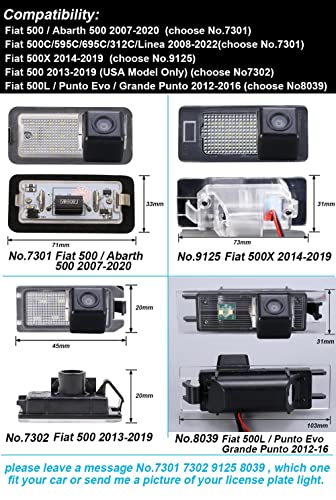

This product could fit all the following models as expected:
Replacement for Fiat 500 / Abarth 500 2007-2020 (choose no. 7301).
Replacement for Fiat 500C/595C/695C/312C/Linea 2008-2022 (choose no. 7301).
Replacement for Fiat 500X 2014-2019 (choose no. 9125).
Replacement for Fiat 500 2013-2019 (only model USA) (choose no. 7302).
Replacement for Fiat 500L / Punto Evo / Grande Punto 2012-2016 (choose no. 8039).
As the same car model may have differences in different countries, please check the camera size and compare the installation of your car carefully to avoid errors.

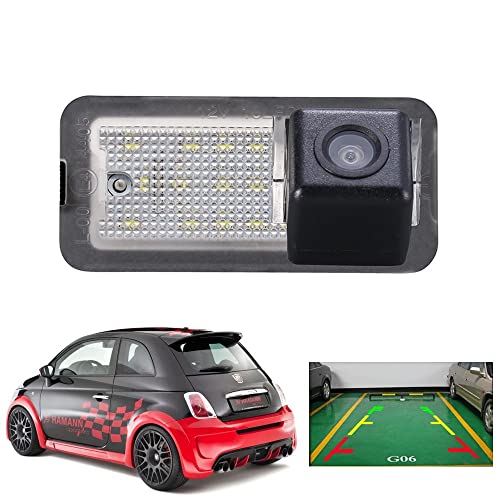

Note: this car rear view camera does not have distance guide lines by default
White switching wire: switch for distance lines (no/yes)
If you need the distance guide line, please cut off the white cable near the camera.
Product parameters:
– Image sensor: 1/3 inch colour CCD
– Viewing angle: 160 degrees.
– TV system: NTSC standard and PAL if needed, please leave a message
– Effective pixels: 628 x 586 pixels
– Resolution: 520 TV lines
– Power supply: DC 12 V.
– Waterproof: IP67
– Working temperature: -40 ~ 70 ℃ / -40 ~ 158 ℉.

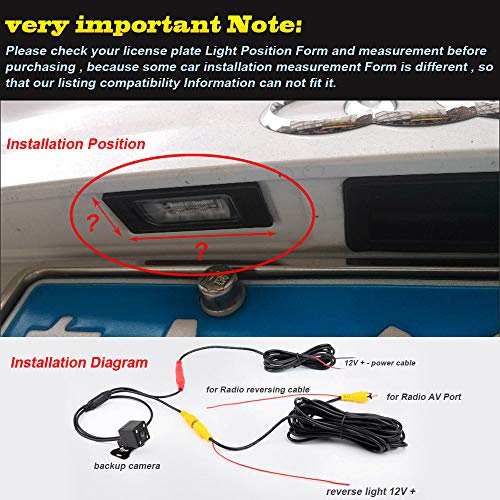

Installation diagram:
Our package includes children’s easy diagram.
Package Content: 1 x rear view camera. 1 x power cable (1.5 m). 1 x AV cable (6 m/19 ft). 1 x user manual (English language not guaranteed).
