Feature: 1. Pure aluminum heat sink, fast heat dissipation 2. SCR and optoelectronic components, contactless switch 3. Easy to install and widely used 4. Widely used in computer peripheral interface equipment, electric furnace heating thermostat equipment, CNC machinery and industrial automation equipment etc. 5. Used in a multitude of occasions requiring explosion-proof, moisture proof and anti-corrosion equipment in chemicals, coal mines, fireworks and crackers Specification: Item Type: Three Phase Solid State Relay Input control DC voltage: 3 – 32 VDC. Controlled charging voltage: 24-480VAC Rated load current: 25A/40A/60A/80A/100A/120A (Optional) Current control ≥10mA Average resistance voltage: 2000 VAC. Voltage drop in activated state ≤1.5V Leakage current out of state ≤5MA Time ≤ 10 MS. Ambient temperature: -30 °C to +70 °C. Warranty: 16 months Size: approx. 31 x 72 x 105 mm/1.2 x 2.8 x 4.1 inches. Package List: 1 x Three Phase Solid State Relay

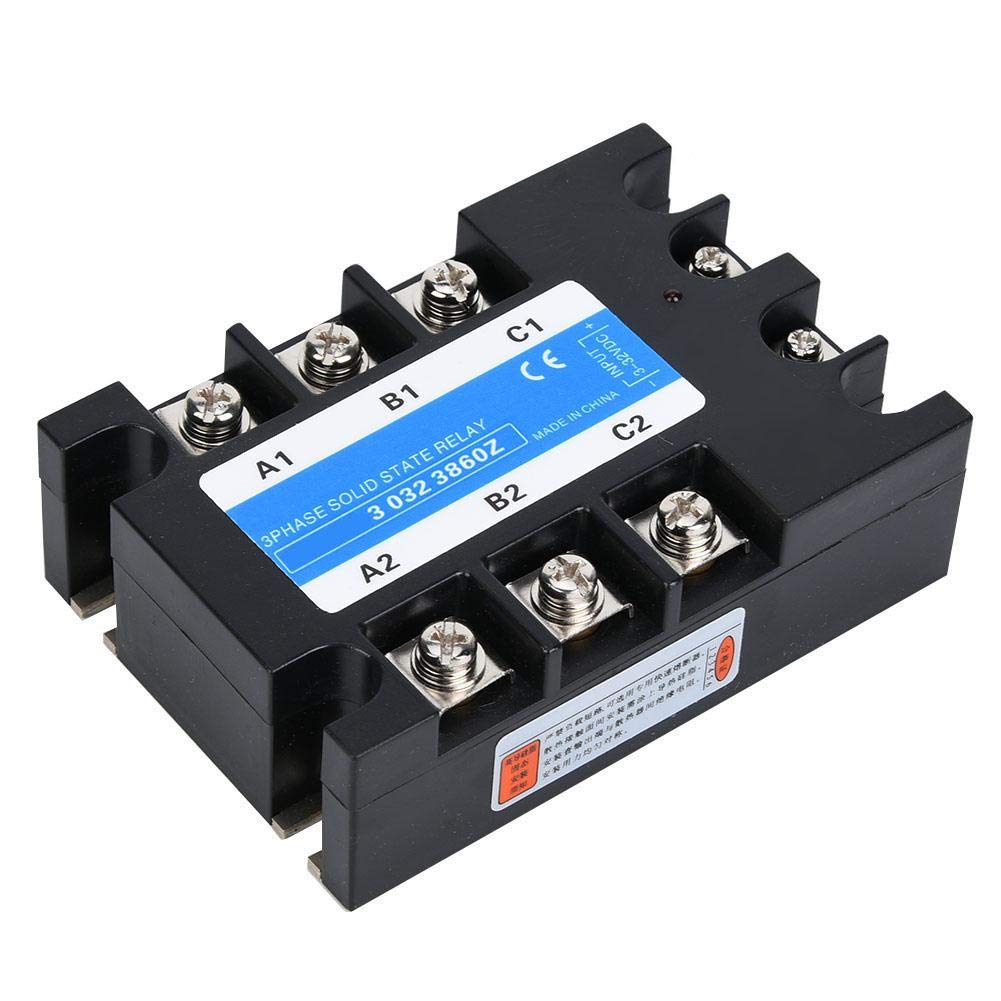

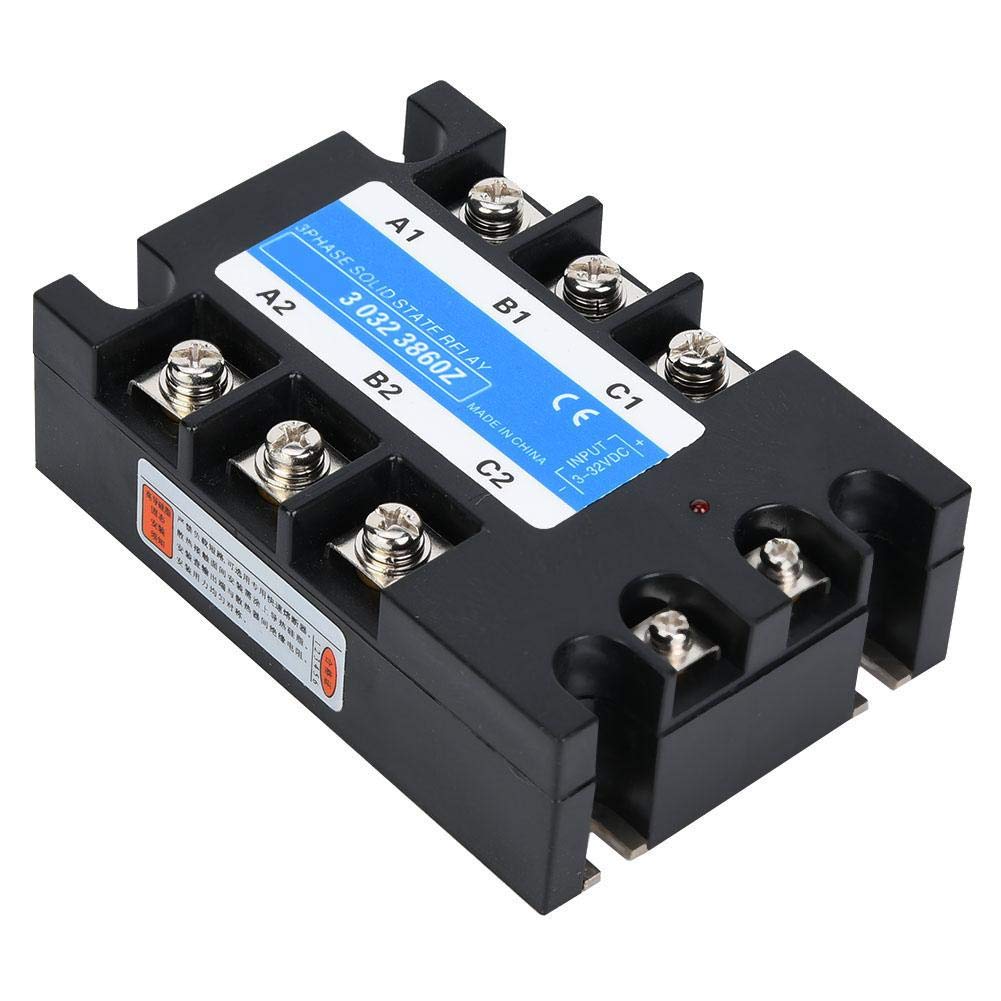

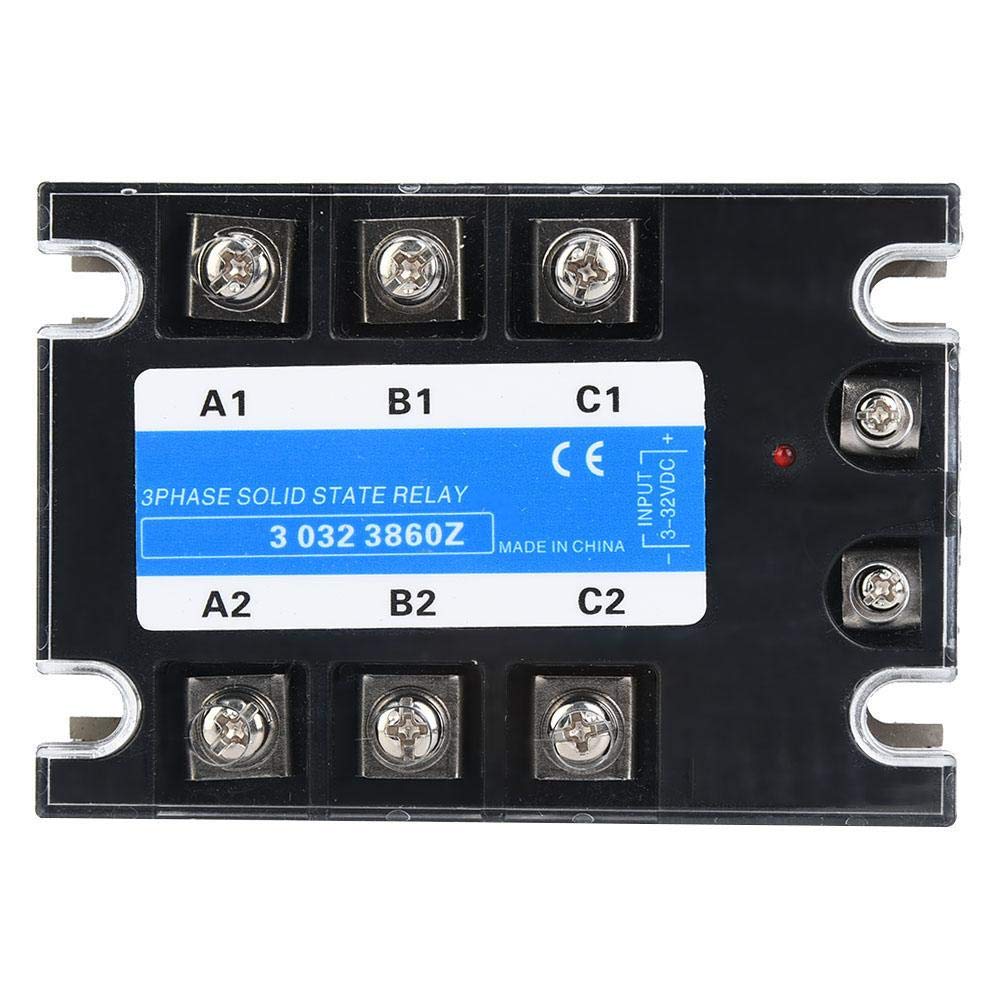

BERM Solid State Relay DC to AC Solid State Relay 25-100A Optional Three Phase Solid State Relay 3-32VDC Input 24-480VDC Load Voltage（60A)
$100.99
- Quality Chips: Advanced automated production process, high quality imported chips, stable performance.
- Precise performance: pure aluminum heat sink, high thermal conductivity, high conductivity and strong overcurrent capacity.
- Easy to use: SCR and optoelectronic components, contactless switch.
- Easy to install: Equipped with screw terminals for easy wiring, no welding required.
- Application: Widely used in computer peripheral interface equipment, electric furnace heating thermostat equipment, CNC machinery and industrial automation equipment, etc.
In stock
