BOJACK 300 pcs High Quality Variable Resistor 6mm Potentiometer Assortment Kit Mechanical characteristics: Rotation angle: 200 ° ± 20 ° Rotational torque: 60~150g Stop strength: 500g performance: Plug-in method: Horizontal Resistance range (Ohms): 100~2M Ohm Resistance deviation: ±20% Rated power: 0.1W Maximum use voltage: 50V Resistance change characteristics: B Residual resistance: no more than 5% of the nominal resistance, the maximum does not exceed 30Ω Rotation life: After 100 turns of no-load rotation, the resistance changes up to ±15% Load life: load rated power for 3 hours, resistance change up to ± 5% Product Description: 101——–100Ω—-20 pcs 102——–1KΩ —–20 pcs 103——–10KΩ—-20 pcs 104——–100KΩ–20 pcs 105——–1MΩ—–20 pcs 201——–200Ω—-20 pcs 202——–2KΩ——20 pcs 203——–20KΩ—-20 pcs 204——–200KΩ–20 pcs 205——–2MΩ—–20 pcs 304——–300KΩ—-20 pcs 501——–500Ω——20 pcs 502——–5KΩ——–20 pcs 503——–50KΩ——20 pcs 504——–500KΩ—-20 pcs

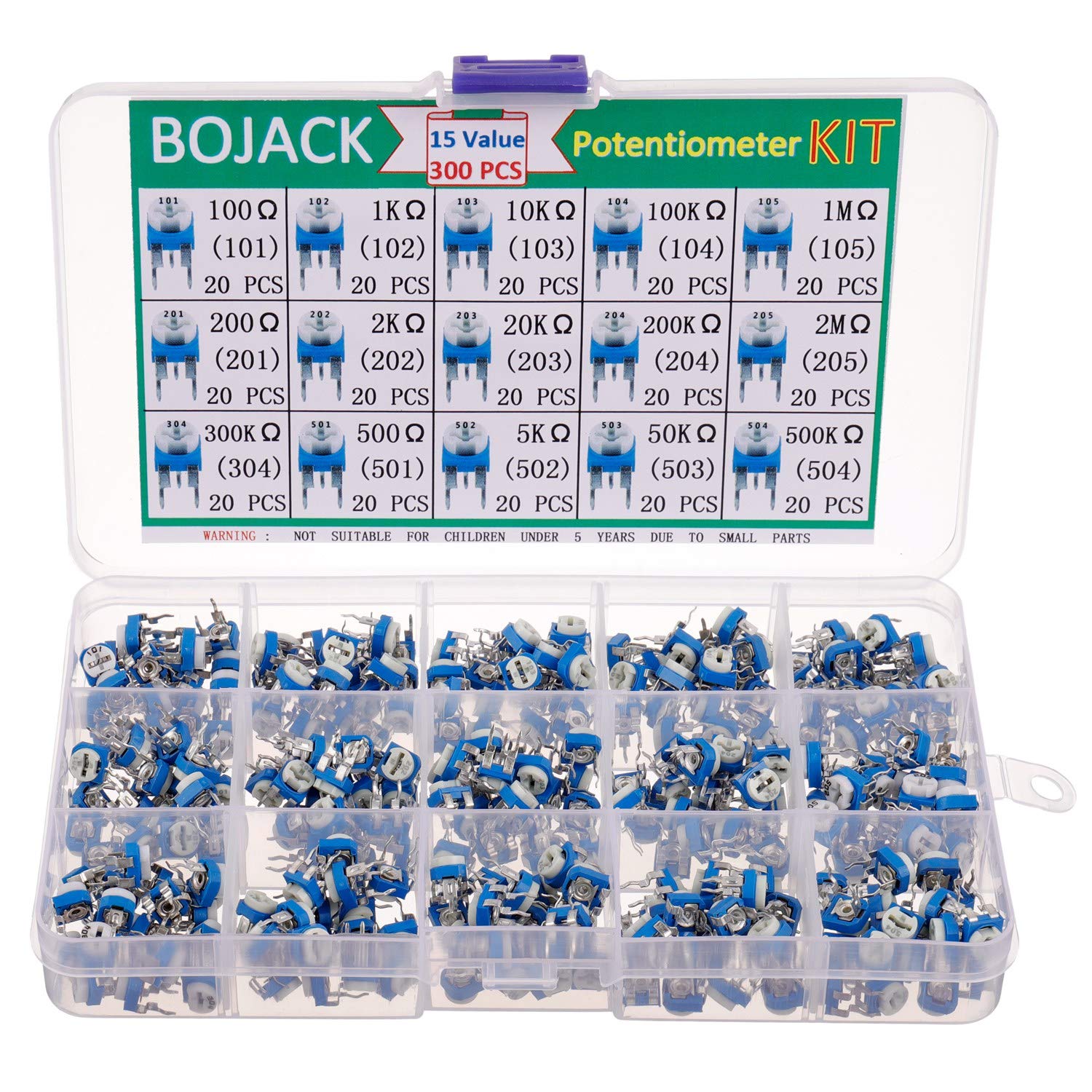

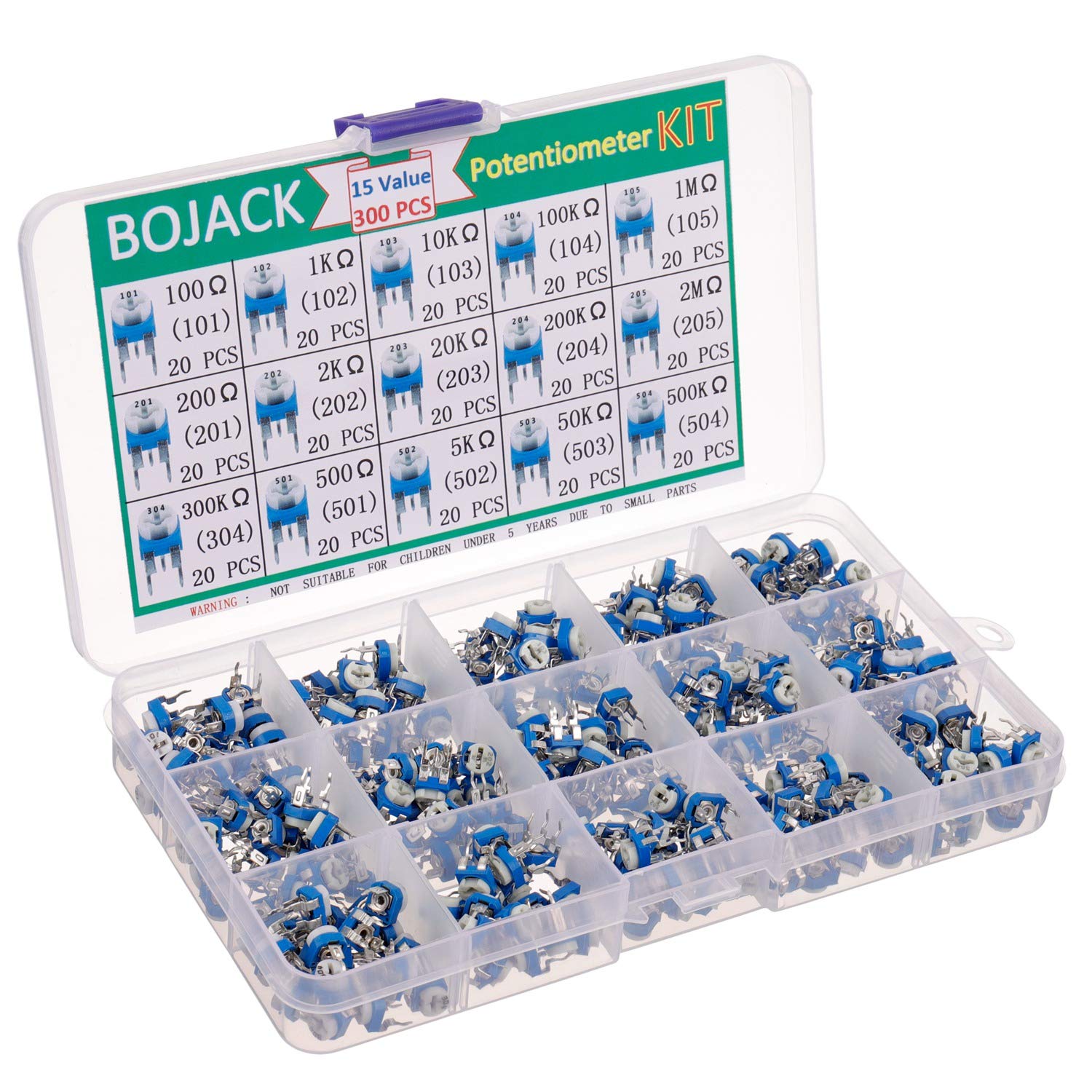

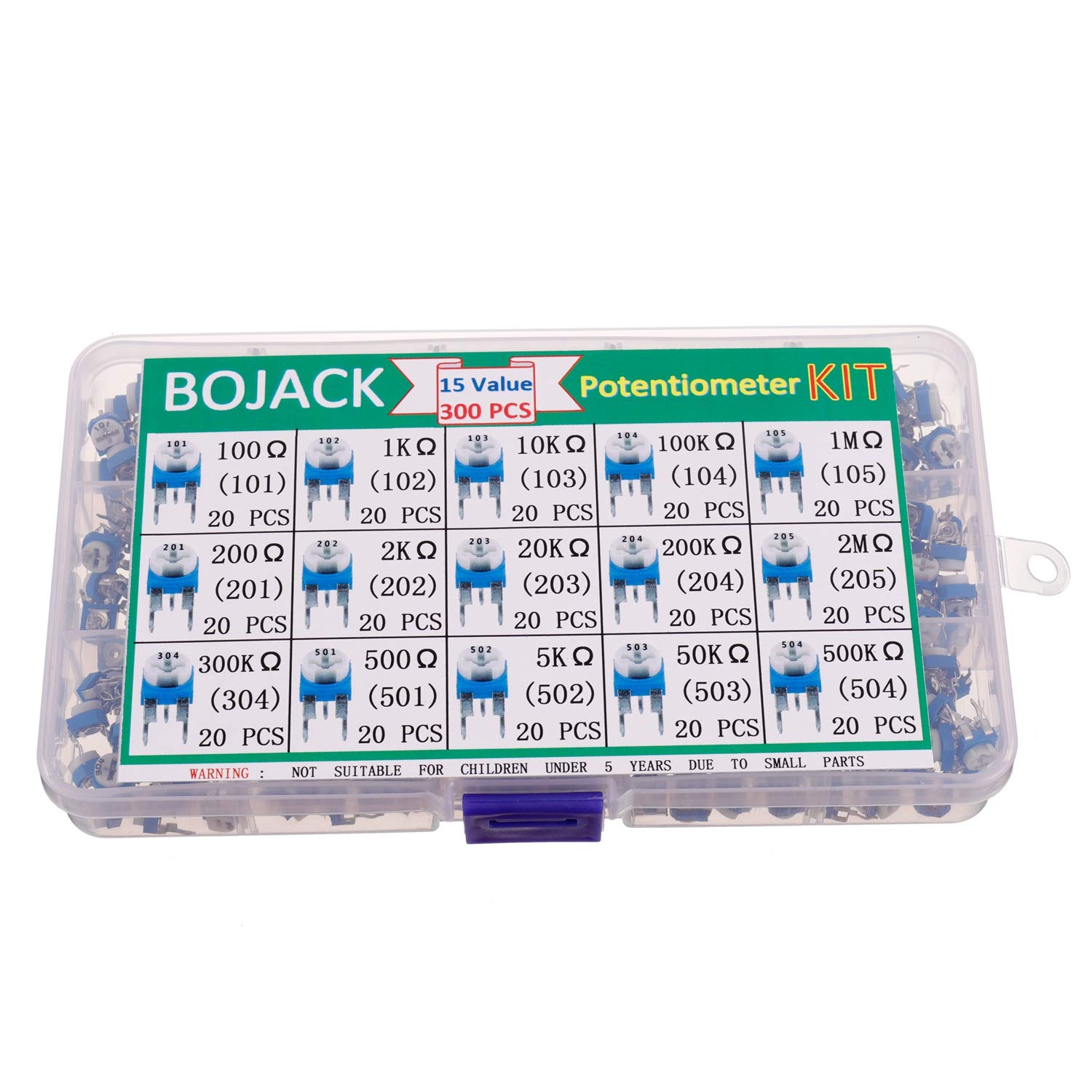

BOJACK 15 Values 300 pcs 100 Ohm- 2M Ohm Variable Resistor 6mm Potentiometer Assortment Kit packag in a Clear Plastic Box
$51.99
- BOJACK High Quality Variable Resistor 6mm Potentiometer Assortment Kit
- Rated power: 0.1W
- Max Operating Voltage: 50 V

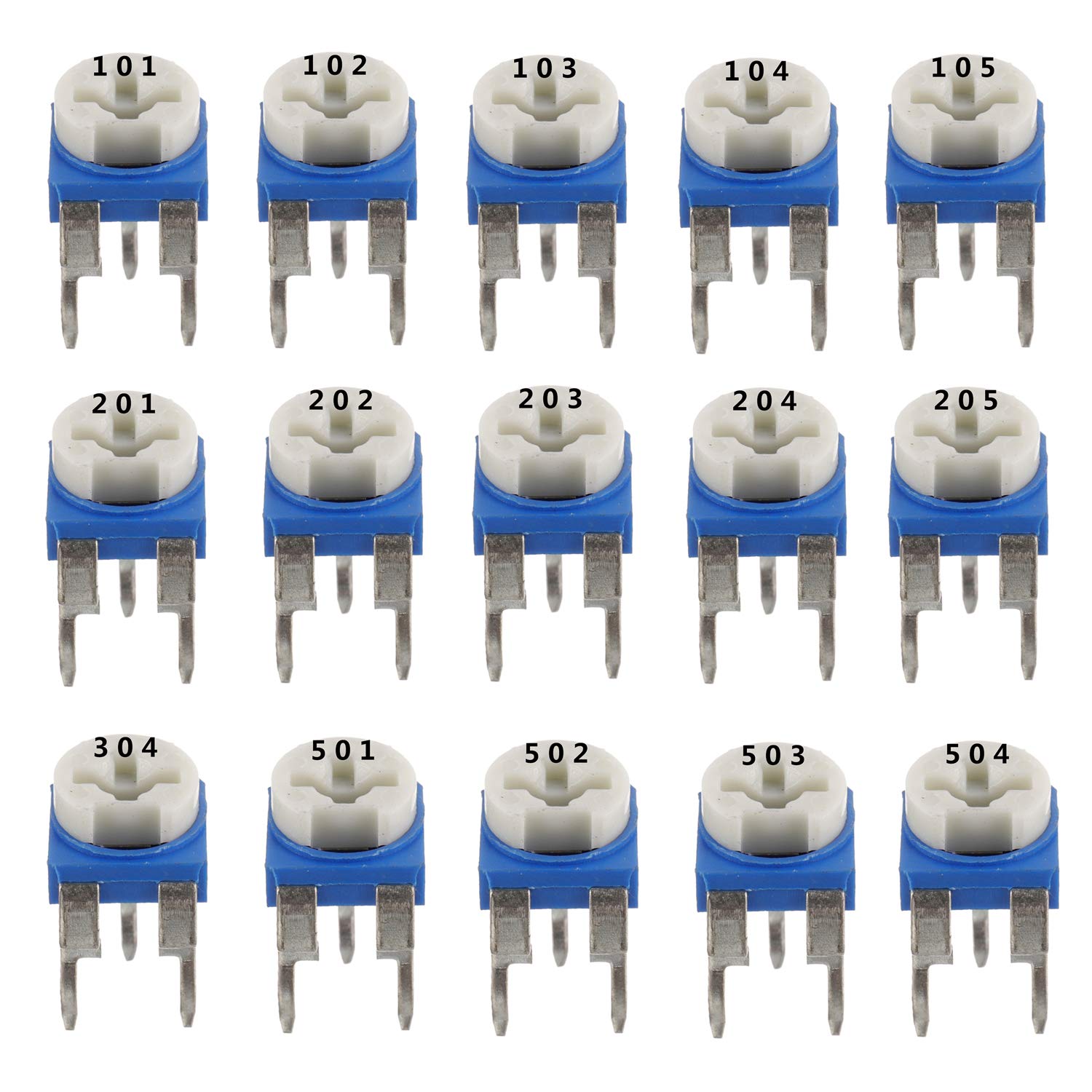

- Potentiometer Model:15 Type-100Ω(101),1KΩ(102),10KΩ(103),100KΩ(104),1MΩ(105),200Ω(201),2KΩ(202),20KΩ(203),200KΩ(204),2MΩ(205),300KΩ(304),500Ω(501),5KΩ(502),50KΩ(503),500KΩ(504)
- Package Quantity: 300 pcs (Each model 20 pcs), Packed in A plastic storage case
In stock
