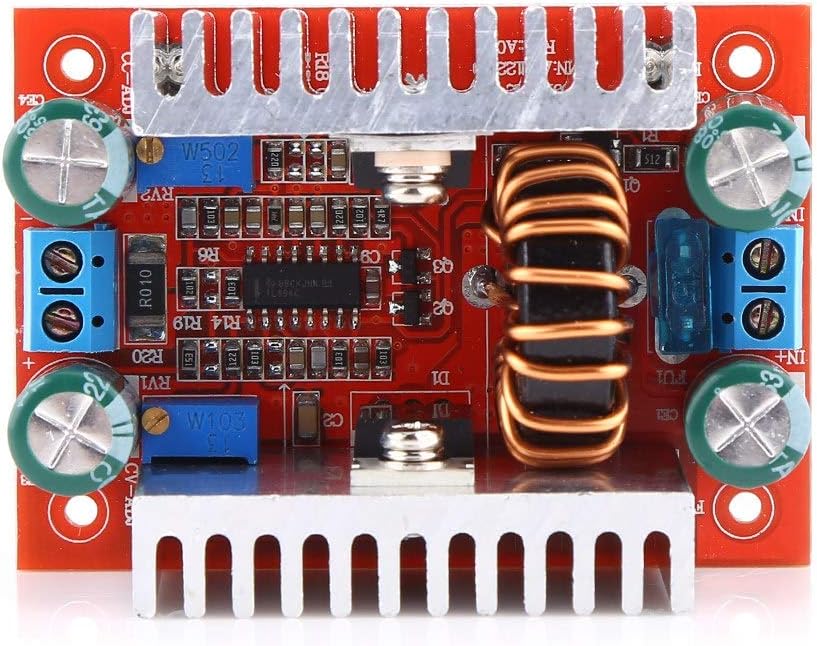

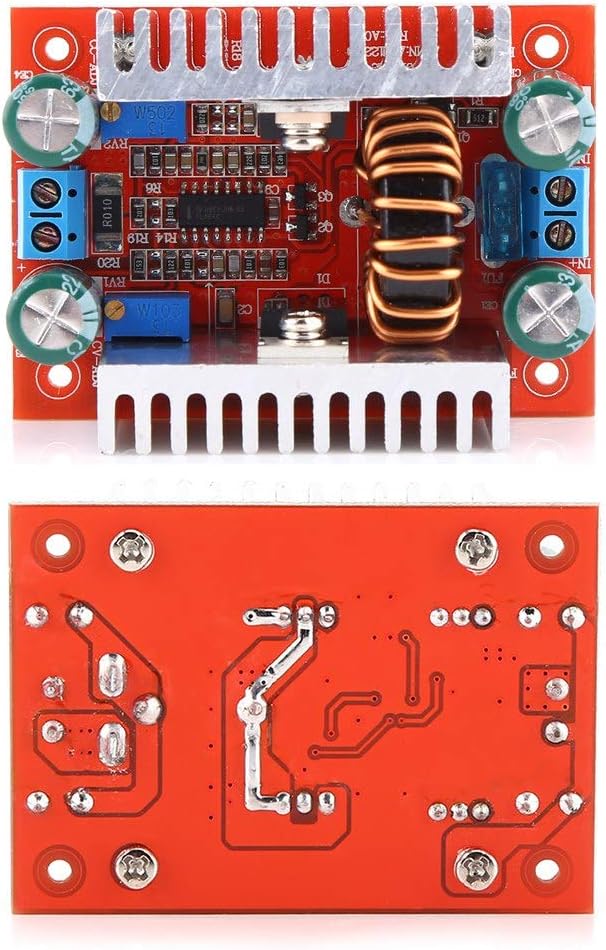

This is a DC-DC constant current boost converter power supply module with DC 8.5-50V voltage input and DC 10-60V output voltage. The input and output of the module are designed with screw terminals for convenient wire connection or disconnection. Besides, it equipped with two heat sinks for better dissipation which can help your project a lot. You can also use the module as a driver for high power LED lights or voltage regulator for solar panels.
Specifications:
Type: Non-isolated boost module
Input Voltage: DC8.5V to 50V
Output Voltage: DC10V to 60V (continuously adjustable, default 19V)
Max. Input Current: 15A (please enhance heat dissipation if more than 8A)
Max. Output Current: 12A (related to the input and output voltage difference, the greater voltage difference is, the smaller output current will be. please enhance heat dissipation when current is over 7A)
Quiescent Current: 10mA(will increase when convert 12V to 20V)
Constant Current Range: 0.2A to 12A Output Power = Input Voltage*Current Operating Temperature: -40℃ to 85℃(if temperature is too high, please enhance heat dissipation) Frequency: 150KHz Max. Conversion Efficiency: 96% (Efficiency is related to input/output voltage, current and voltage difference) Over Current Protection: Yes (if input current is more than 15A, it will automatic reduce output voltage) Reverse Input Protection: No Size: 67×48×28mm/2.63×1.89×1.1″
Package Includes:
1 x Boost Module
Boost Module, DC-DC Step-up Converter Board 400W Boost Converter Power Inverter Module 8-50V to 10-60V for Electric Equipment & Digital Products
$28.99
- HIGH EFFICIENCY– The maximum conversion efficiency can reach 96% and efficiency is related to input/output voltage, current and voltage difference. It features high stability and high precision.
- EASY WIRING– This module has simple construction and adopts screw terminal design on input and output for convenient wire connection and disconnection.

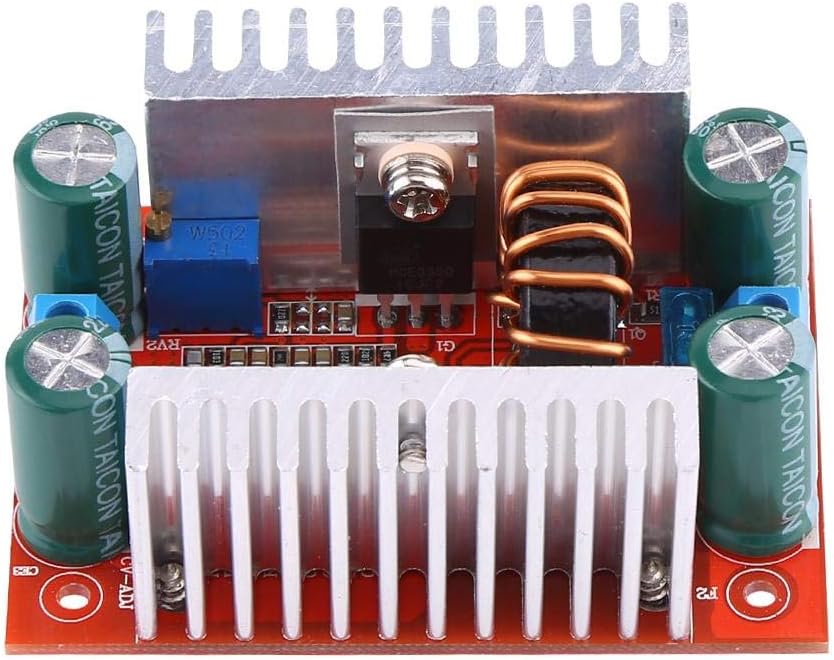

- FAST COOLING– The boost module is equipped with 2 heat sinks that would ensure better heat dissipation and quick cooling.
- WIDE APPLICATION– This step-up power supply module is widely used for electric equipment, digital products, laptop and more. It can also be used as a driver for high power LED lights or voltage regulator for solar panels.
- OVER CURRENT PROTECTION– Boost power converter has over current protection, safe to use. It can transform DC8-50V to DC10-60V, frequency: 150KHz.
In stock
Additional information
| Weight | 0.09 kg |
|---|---|
| brand | Wal front |
| dimensions |
