Features:
Specifications:
Working frequency: 10MHZ-6GHz Insertion loss < 1.2 dB Operating Voltage: DC1-50V Normal working current: < 0.5A

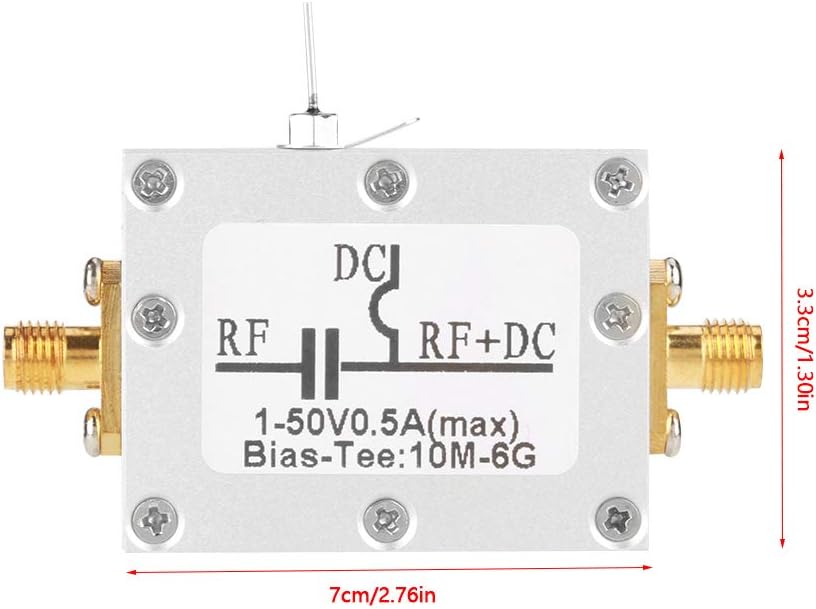

Size: 7 x 3.3cm / 2.76 x 1.30in
Weight: 36g
Package included:
1 x Bias Tee

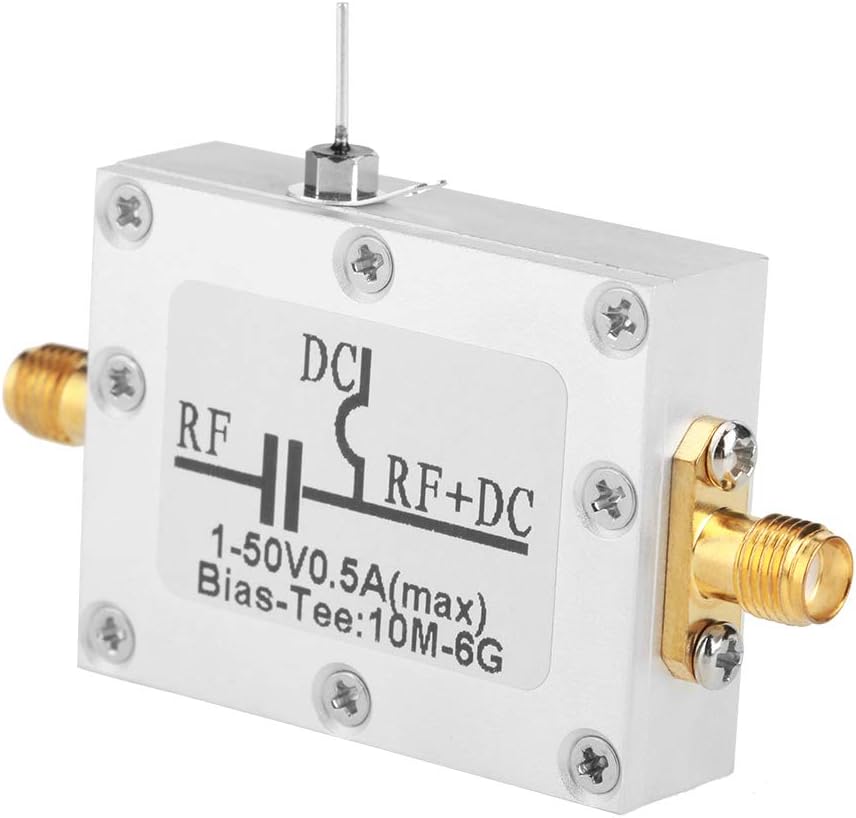

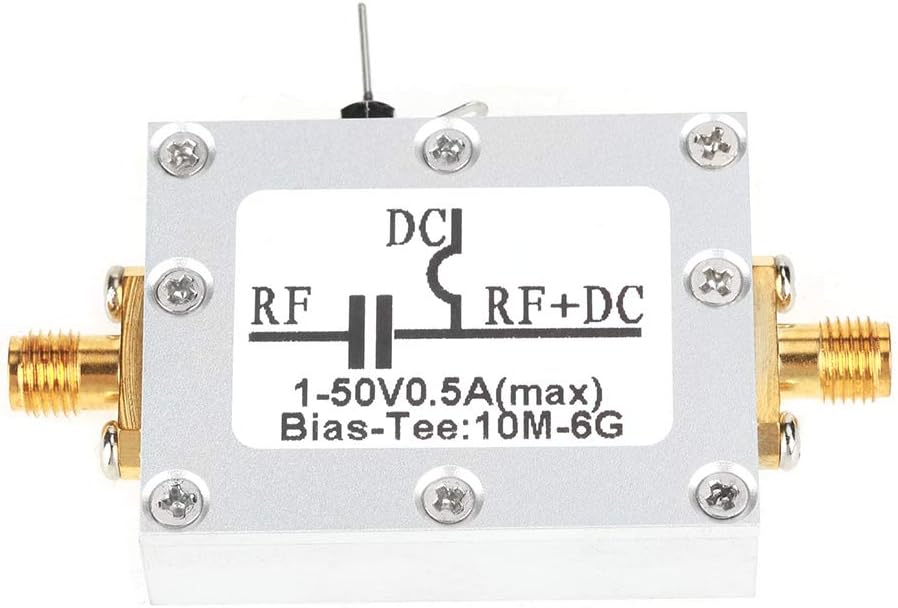

Broco Bias Tee,1 Pcs 10MHz-6GHz Bias Tee Broadband Radio Frequency Microwave Coaxial Bias
$52.99
- 100% brand new and high quality
- It consists of high frequency inductors and capacitors with ultra-broadband, near idealization and no resonant point.
- Isolating capacitance: isolating dc to prevent dc voltage from leaking to subsequent circuits or test instruments;
- High frequency inductance: isolate ac information to prevent high frequency signals from leaking into the power supply system.
- Application: Broadband amplifier, optical fiber communication, optical modulation drive, other test and measurement applications
In stock
Additional information
| Weight | 0.044 kg |
|---|---|
| brand | Broco |
| dimensions | 8 x 7 x 6 cm; 40 Grams |
