Features: – Measure AC current (minimum 1mA by clamp) – Measure temperature, AC/DC voltage, resistance, continuity and diode – Back clip and side probe holder design – Auto range, Auto power off, data hold with low battery indication – V-alert function (non-contact AC voltage detection) to prevent any possible danger – Large LCD with backlight for easy reading – Conform to the IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, IEC-61010-2-033 standards – Over-voltage protection class CAT III 300V, CAT II 600V, pollution degree IISpecifications: – Display: 2000 counts – AC current: 2A/20A/200A 0.001A/0.01A/0.1A (2.5%+5counts) – DC voltage: 200mV/2V/20V/200V/600V 0.1mV/0.001V/0.01V/0.1V/1V (1.0%+3counts) – AC voltage: 200mV/2V/20V/200V/600V 0.1mV/0.001V/0.01V/0.1V/1V (1.0%+3counts) – Resistance: 200O/2kO/20kO/200kO/2MO 0.1O/0.001KO/0.01KO/0.1KO/0.001MO (1.0%+3counts) 20MO 0.1MO (1.2%+20counts) – Buzzer: If the resistance is less than 30O, the continuity beeper sounds – Diode: Shows positive voltage value of diode approximately – Temperature: -20?~500?/-4?-932? 1?/2? (2.0%+2counts) – Jaw Capacity: 20mm – Power: 1.5V (AAA) x 2 (not included) – Size: 179mm x 67mm x 36 mm – Weight: 137gPackage Includes: 1 x Clamp Meter 1 x Probes 1 x Thermocouple 1 x Carrying Case 1 x Screwdriver 1 x User ManualNote: The batteries are not included in the package due to Aviation Security Check
BSIDE ACM81 Digital Clamp Meter 1mA AC Current True RMS Auto-Ranging Ammeter Temperature Diode Ohm V-Alert Voltage Tester with Back Clip
$93.99

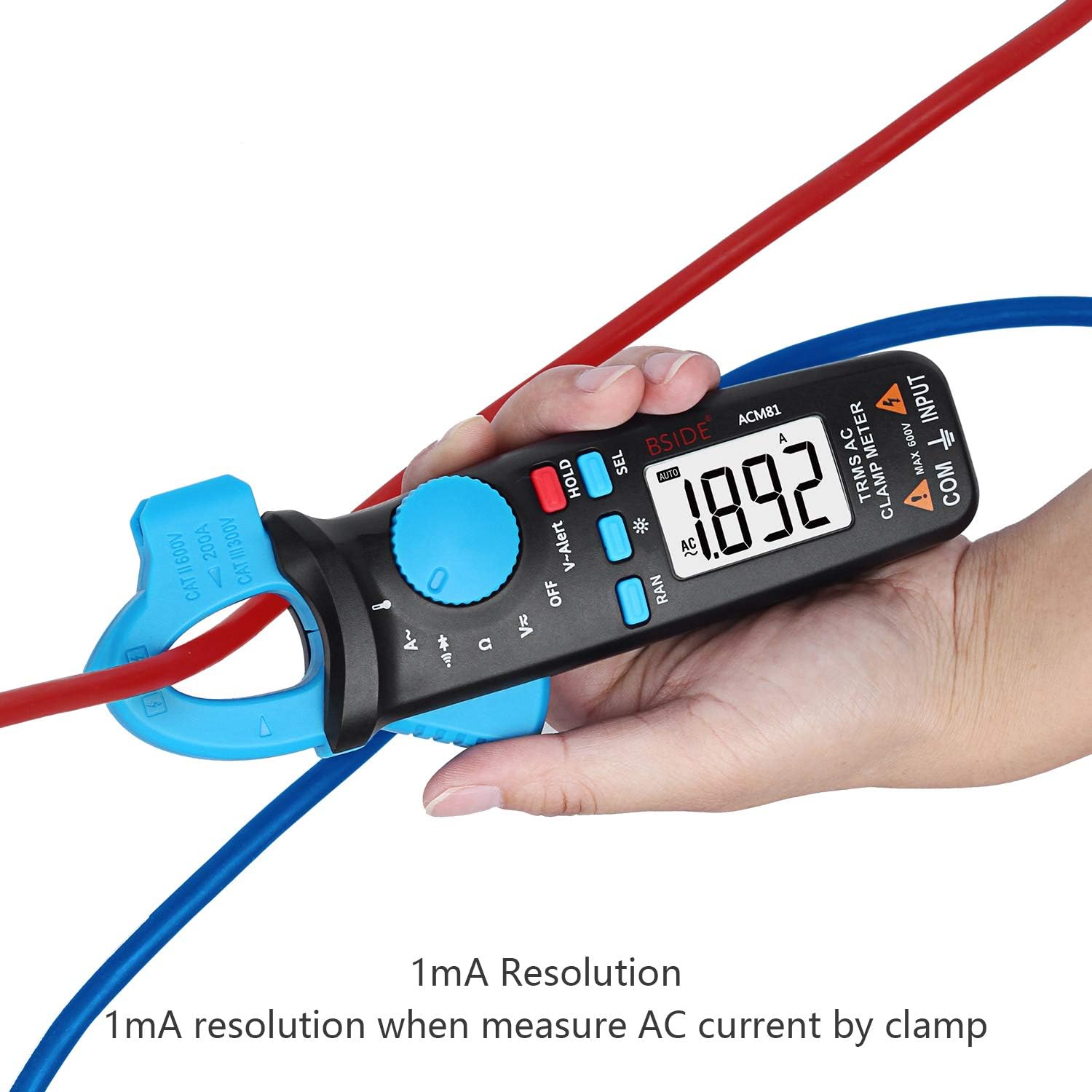

- [1mA Sensitivity]: 1mA sensitivity when measure AC current by clamp.
- [True RMS Auto-Ranging]: This true RMS clamp meter can measure temperature, diode, continuity, resistance, AC/DC voltage, AC current.
- [Back Clip Design]: Back clip design make it more portable, hang on your belt or pocket.

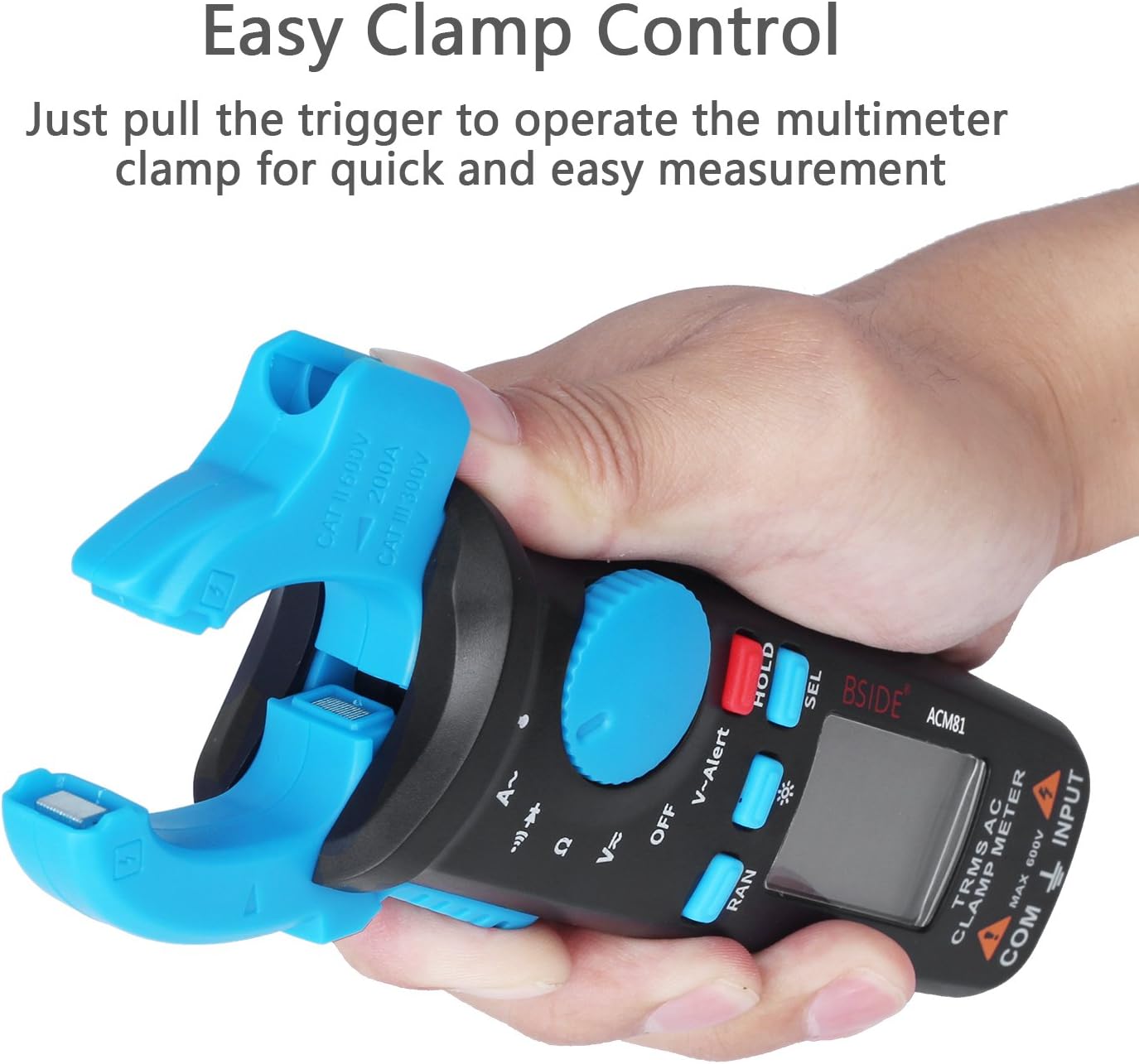

- [Side Probe Holder Design]: Side probe holder design for easy single-hand test.

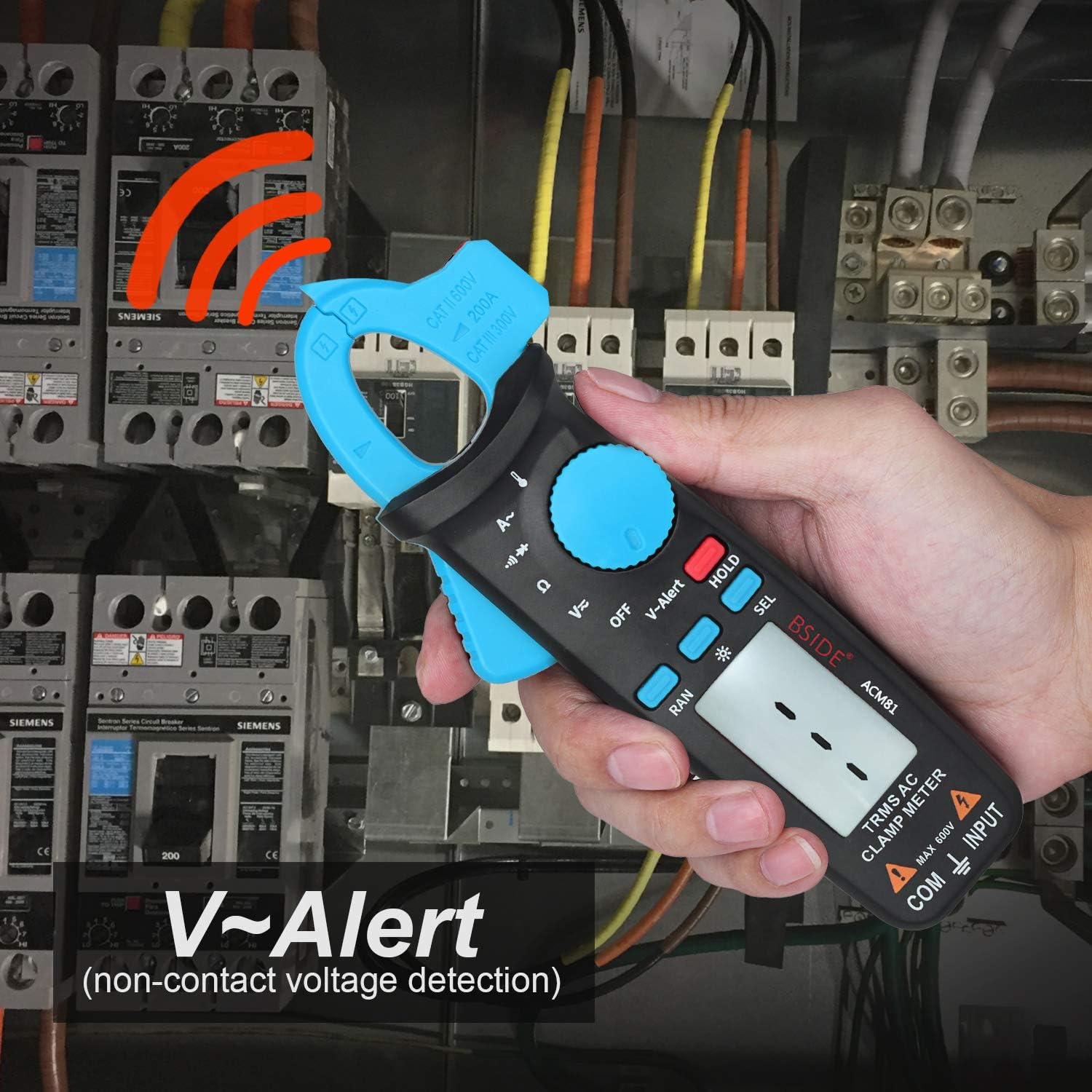

- [Added Functions]: Non-contact way to detect AC voltage existence to prevent any possible danger; Data hold function can freeze current reading.
In stock
Additional information
Weight | 0.331 kg |
---|---|
brand | Bside |
dimensions | 17.91 x 6.71 x 3.91 cm; 140.61 Grams |
