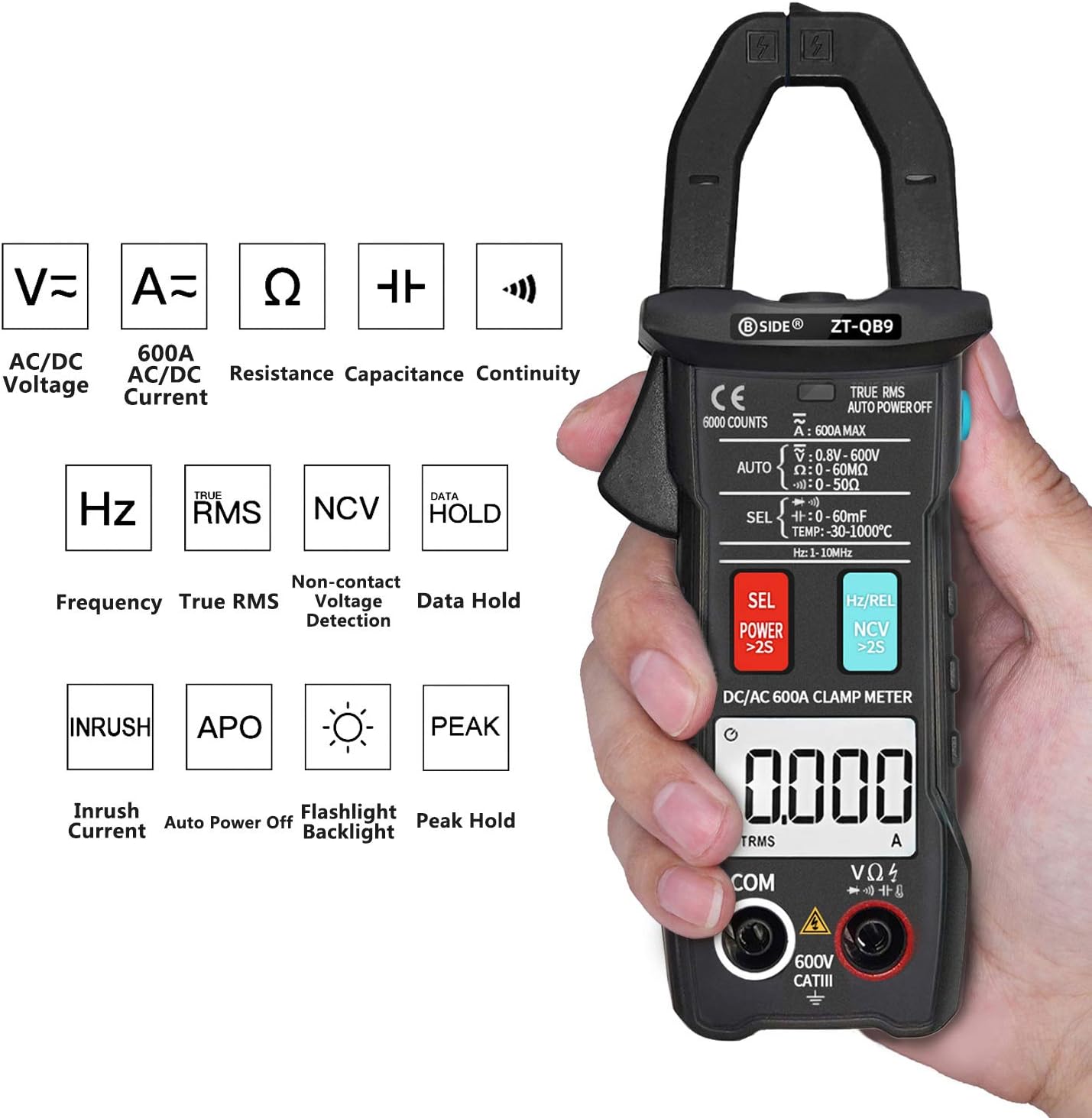

Features: Measure DC and AC current (maximum 600A by clamp) Measure AC and DC voltage Measure inrush current, capacitance, diode, temperature Measure frequency, resistance, continuity NCV measurement (non-contact voltage detection) Clamp on frequency function True RMS, Auto range, data hold, peak hold, auto power off Backlight with flashlight Low battery indicationSpecifications: Display: 6000 counts DC current: 60A/600A ±(2%+3counts) AC current: 60A/600A ±(2%+3counts) DC voltage: 6V/60V/600V ±(0.5%+3counts) AC voltage: 6V/60V/600V ±(1.0%+3counts) Capacitance: 6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF (2.0%+5counts); 6mF/60mF (5.0%+5counts) Resistance: 600Ω/6kΩ ±(1.5%+3counts); 60kΩ/600kΩ/6MΩ±(0.5%+3counts); 60MΩ ±(1.5%+3counts) Temperature: -30~1000℃/-22~1832℉ ±(2.5%+5counts) Frequency: 6Hz/60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/10MHz ±(0.1%+2counts) Diode: Yes Buzzer: If the resistance less than 30Ω, the continuity beeper sounds Jaw Capacity: 25mm Power: 1.5V (AAA) x 2 Size: 172mm x 64mm x 32 mm Weight: 172gPackage Includes: 1 * Smart Clamp Meter 1 * Alligator Clips 1 * Probes 1 * Carrying Case 1 * Wrist Lanyard 1 * User ManualNote: The batteries are not included in the package due to Aviation Security Check
BSIDE DC AC Clamp Meter 600A True RMS Auto-Ranging 6000 Counts Multimeter Inrush Current Capacitance Temperature Live Check Voltage Tester with Flashlight
$149.99

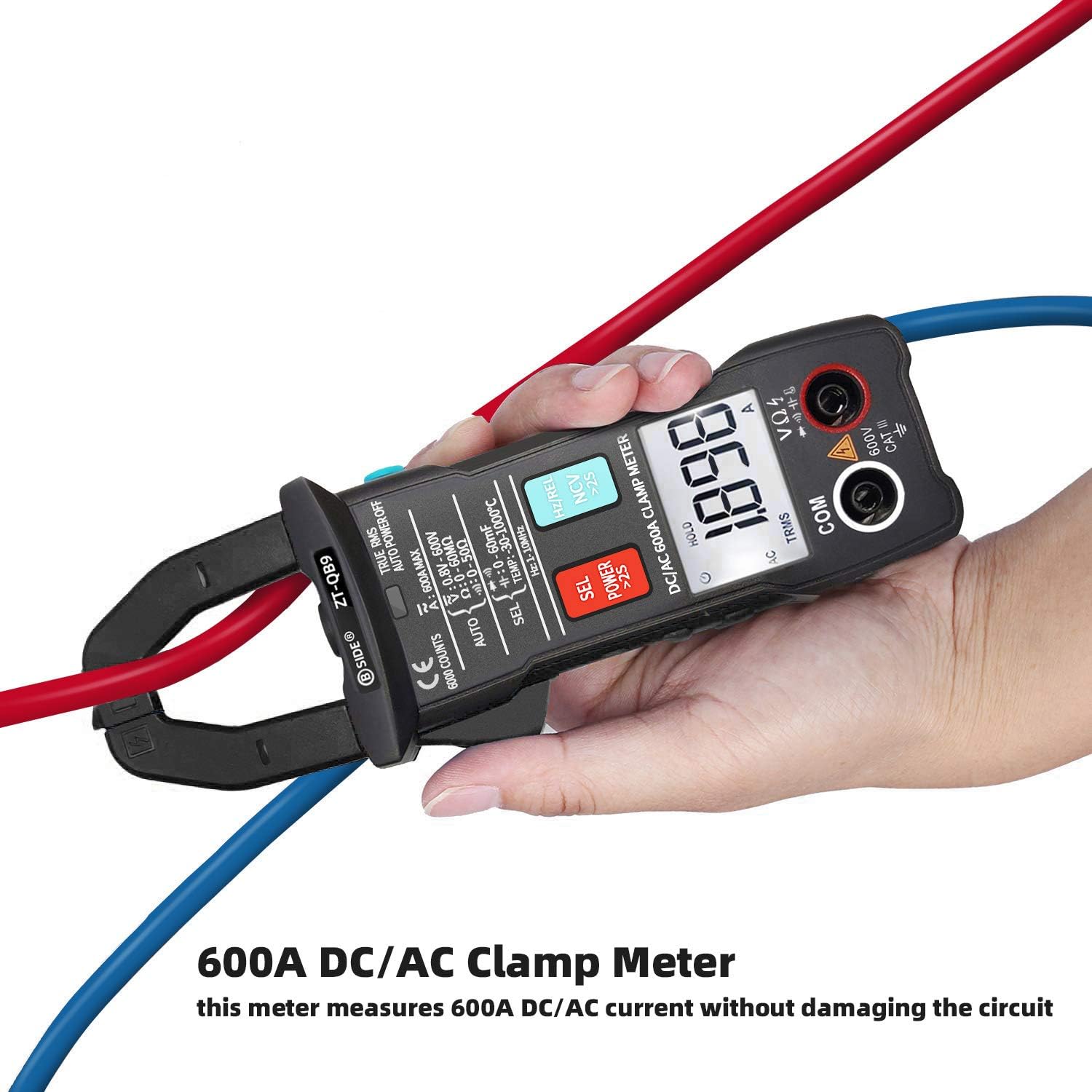

- [DC/AC Clamp Meter]: The clamp meter measures DC/AC current up to 600A without damaging the circuit.
- [Automatic Identification]: Designed with beginner in mind – BSIDE smart technology make this multimeter can automatically identifies the tested parameters and choose their required range.
- [Inrush Current Test and Peak hold Function]: Inrush current function is designed to capture inrush current accurately; Peak hold function makes test and record more convenient.
- [Capacitance, Diode and Temperature Test]: This true rms clamp meter can test capacitance, diode, temperature, etc.

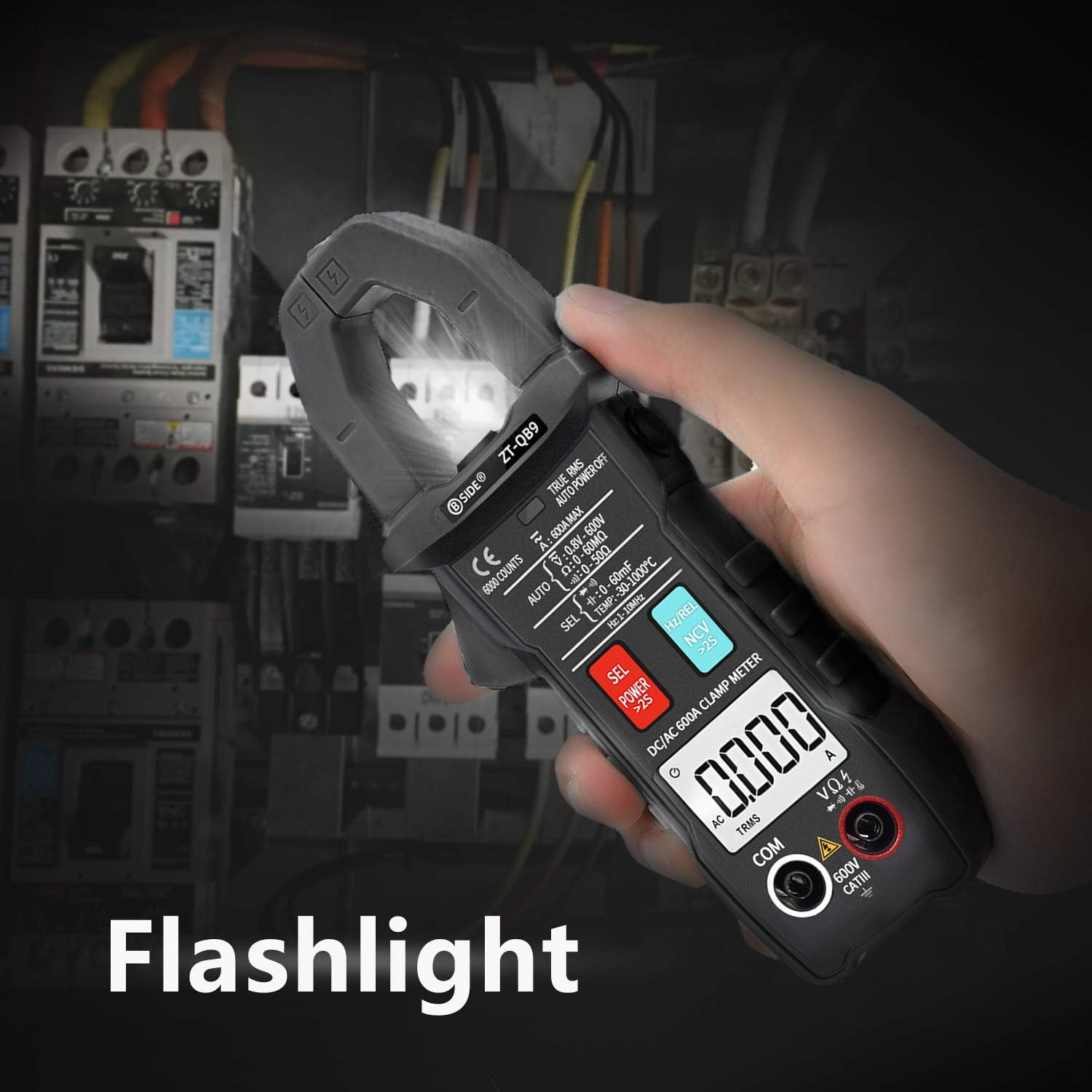

- [Flashlight Design]: Upgraded flashlight can change the dark environment. Hang hole design make it more portable.
In stock
Additional information
| Weight | 0.29 kg |
|---|---|
| brand | BSIDE |
| dimensions | 20.2 x 10.4 x 7.5 cm; 317 Grams |
