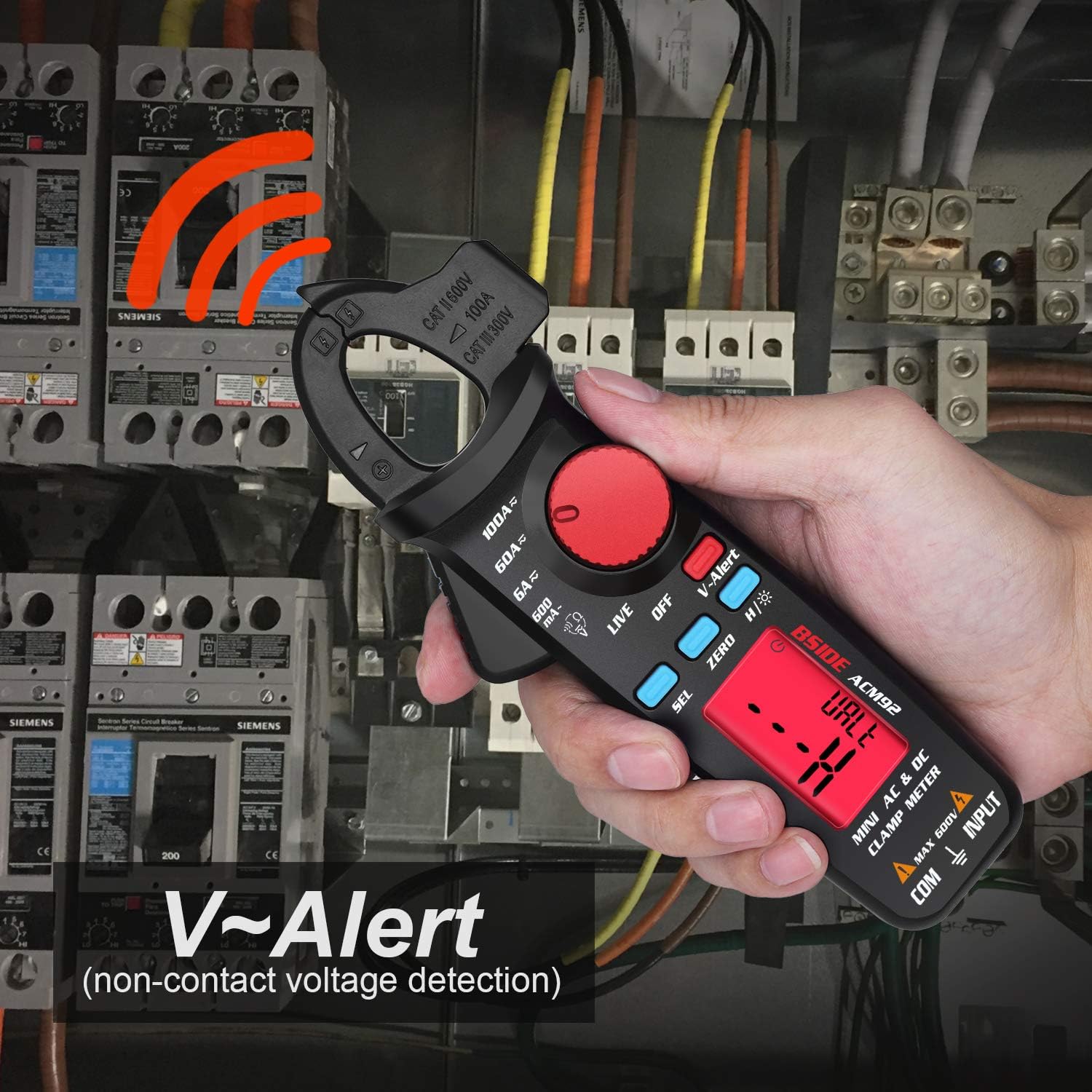

Features: Measure DC Current (minimum 1mA by jaws) Measure AC Current (minimum 0.1mA by jaws) Measure AC/DC voltage V-alert measurement, live-wire check Measure frequency, resistance and continuity Clamp on frequency function Auto power off, data hold, low battery indication with backlight Conform to the IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, IEC-61010-2-033 standards Over-voltage protection class CAT III 300V, CAT II 600V, pollution degree IISpecifications: Display: 6000 counts DC current: 6A/60A/100A 0.001A/0.01A/0.1A ±(2.5%+10 counts) AC current: 600mA 0.1mA ±(3.0%+10 counts); 6A/60A/100A 0.1mA/0.001A/0.01A/0.1A ±(2.5%+10 counts) DC voltage: 600V 0.1V ±(1.0%+5 counts) AC voltage: 600V 0.1V ±(1.0%+3 counts) Resistance: 6000Ω 1Ω ±(1.0%+3 counts) Frequency: 60Hz/1000Hz 0.1Hz/1Hz ±(1.5%+5 counts) Frequency(by jaws): 60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5 counts) V-Alert: LCD display flashes and alarm buzzer sounds when detected AC voltage Continuity: If the resistance is less than 30Ω, the continuity beeper sounds Jaw Capacity: 20mm Power: 1.5V (AAA) x 2 Size: 179 x 67 x 36 mm Weight: 137gPackage Includes: 1 x Clamp Meter 1 x Test Leads 1 x Carrying Case 1 x Screwdriver 1 x User ManualNote: The batteries are not included in the package due to Aviation Security Check

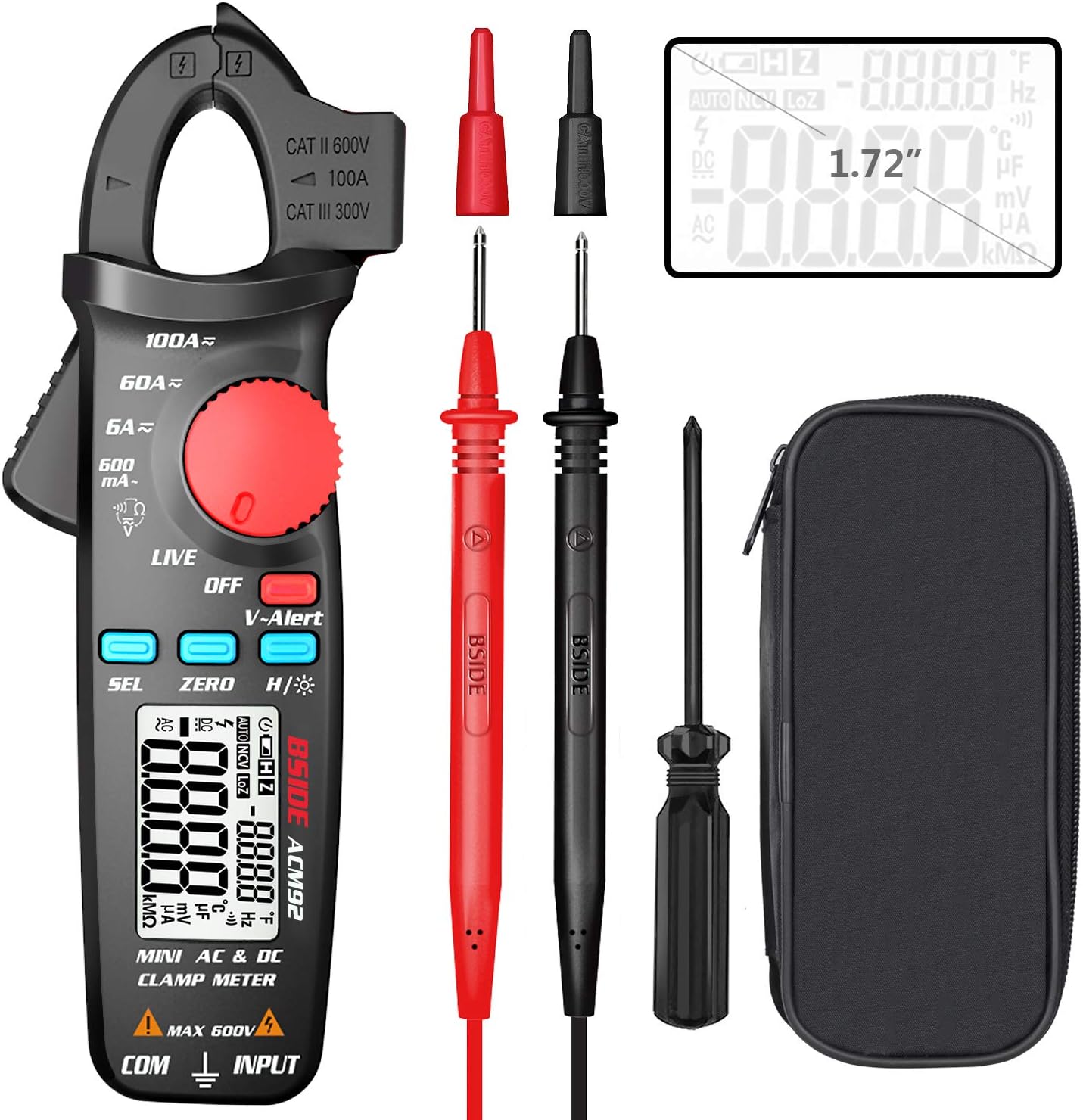

BSIDE DC Current Clamp Meter True RMS 6000 Counts Digital Multimeter Amp Continuity Ohm Hz Live Check V-Alert Voltage Tester with Back Clip
$148.99
- [Ultra Steady & Accurate]: The new generation of our best-selling clamp meter ever – now more steady and accurate when test current ,especially low current (less than 25mA).

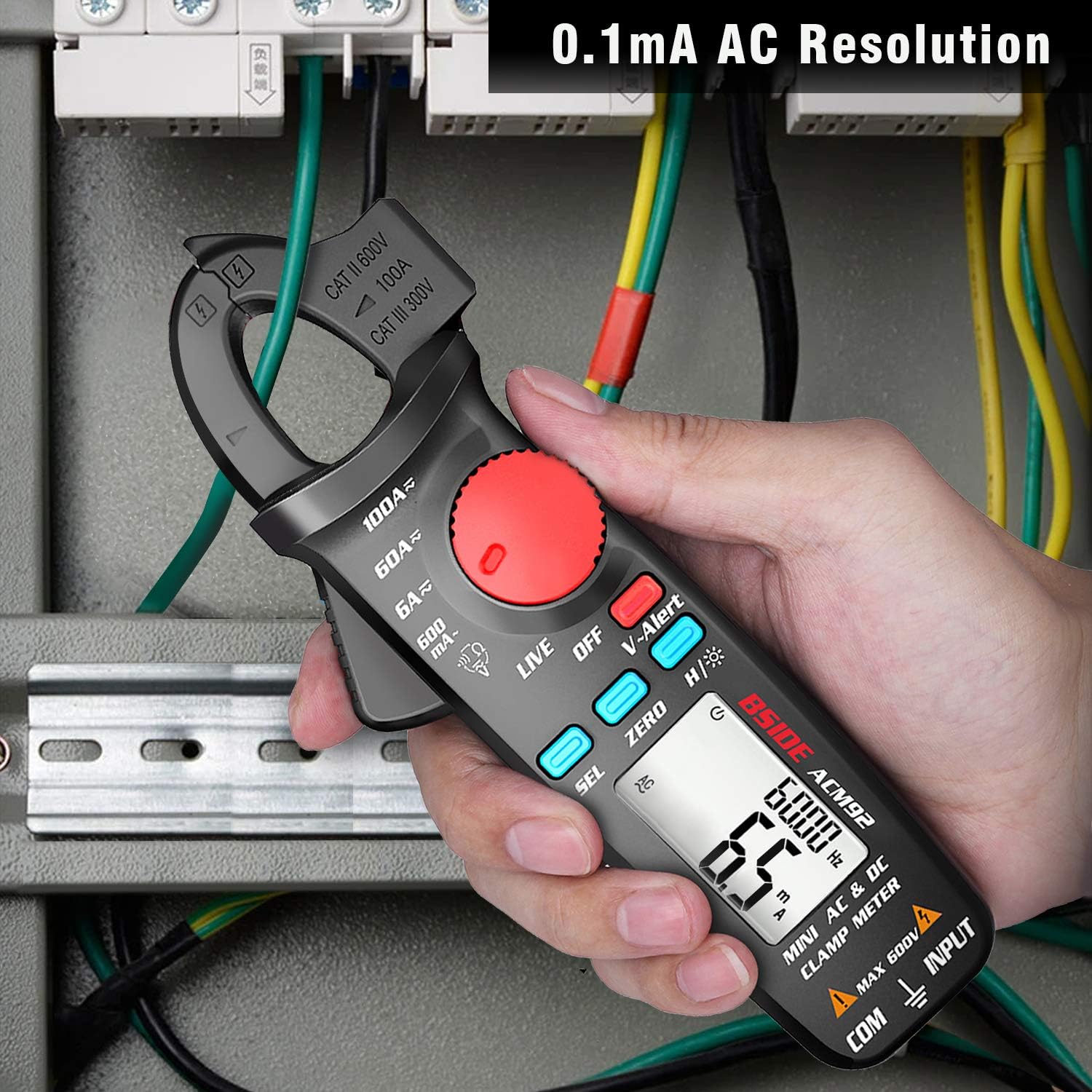

- [0.1mA AC Resolution]: Delivers 0.1mA AC resolution and sensitivity.
- [1mA DC Resolution]: Delivers 1mA resolution and sensitivity, which make it a great a tool for measuring such as parasitic draws.
- [Dual Line Display]: Dual line display can show both AC voltage/current and frequency on the screen.
- [Probe Holder]: Side probe holder make measurement more convenient, especially for narrow or tight space environment.
In stock
Additional information
| Weight | 0.322 kg |
|---|---|
| brand | BSIDE |
| dimensions | 17.9 x 6.7 x 3.6 cm; 138 Grams |
