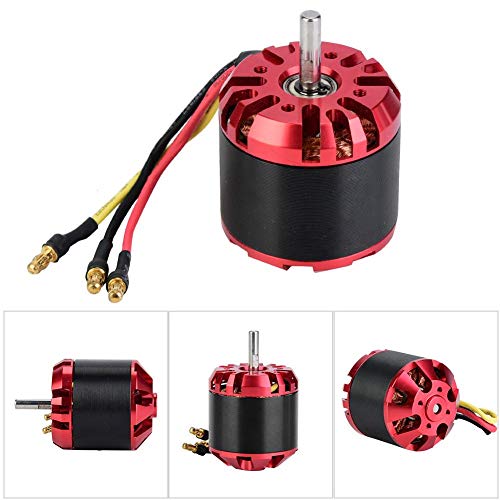

tor with Hall element, smooth start, high efficiency, high torque. Precision design for maximum conversion of energy.Excellent heat dissipation quality ensures reliable operation system.Steady shaft has longer service life.Low energy consumption and low noise.
Spec:
Condition: 100% Brand New
Item Type: Brushless Motor
Material: Alloy
Model: C4250
Shaft Diameter: 5mm
Output Shaft Length: 20mm
KV Value: 560KV (customizable KV value)
Maximum Power: 1760W
Voltage: 11.1-36V
Speed: 6000-9000
Torque: 1-2N/m
Stall Torque: 7-8N/m
Winding Number: 9
Number of Motor Poles: 14P
Stator Slot Number: 12N
Resistance: 0.068Ω
No-load Current: 1.5-1.6A (maximum current 80A)
Banana Connector: 3.5/4.0mm
Lithium Battery Section Number: 3-8S
Mounting Holes Spacing: 25/17mm
Mounting Hole Size: M2.5*4
Diameter: Approx. 42mm / 1.7inch
Height: Approx. 50mm / 2.0inch
Weight: Approx. 257g

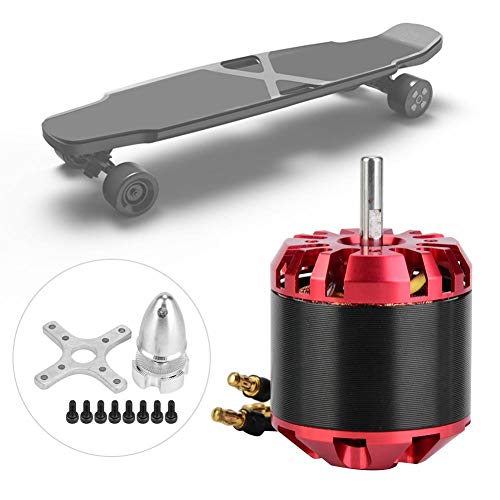

Package List:
1 * Motor
1 * Propeller
1 * Bracket8 * Screw
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
Item Weight:- 257 g
Product Dimensions:- 7 x 5 x 5 cm; 257 g
Item model number:- Vikyeubdgvfksox
Material:- Metal
Voltage:- 36 Volts
Horsepower:- 1760 Watts
Item Package Quantity:- 1
Batteries included?:- No
Batteries Required?:- No
Date First Available:- 24 Aug. 2020
Brand:- Vikye
Model name:- C4250
Frame material:- Aluminium
Item weight:- 257 Grams
Wheel size:- 50 Millimetres
Grip type:- Ergonomic
