Features:
1. For measuring the height up to 6 cables together
2. It is convenient to take measurement, easy to aim at the measuring position and to read measuring results
3. Uses large measuring sensor, it has high accuracy.

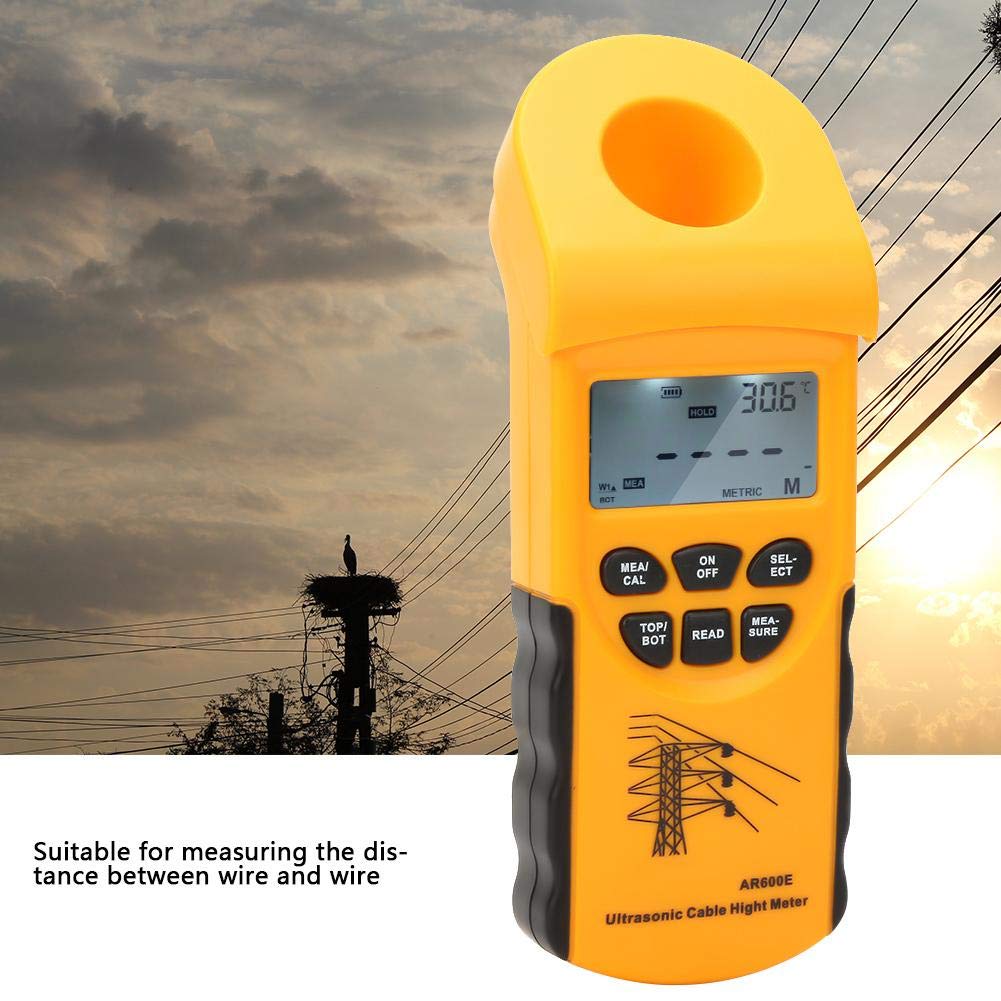

4. Suitable for measuring the distance between wire and wire
5. Compact appearance and it is convenient to carry
Specification:
Condition: 100% Brand New
Brand: SMART SENSOR
Model: AR600E
Technical parameter
Technical specifications
Range (25mm cable min)
3-23m
Range (12mm cable min)
3-15m
Range (5.5mm cable min)
3-12m
Range (2.5mm cable min)
3-10m
Horizontal measuring range
3-18m
Operating temperature range
-10℃-40℃
Resolution (range10m)
10mm
Measuring accuracy
0.5%±2d
Minimum space between wires
150mm
BOT mode: measuring the height of the the most lower 6 cables
Yes
TOP mode: measuring the height of the most higher 6 cables
Yes
Auto power off delay
120S
Low battery alarm
7.2V±0.2V
Imperial & metric unit transition
Yes
Displays real time temperature.
Yes
Operating voltage
9V 6F22(not included)
Size: Approx. 75 * 72 * 200mm / 3.0 * 2.8 * 7.9in
Weight: Approx. 896g / 31.6oz
Package List:
1 * Cable Height Meter
1 * Bracket
1 * Black Bag

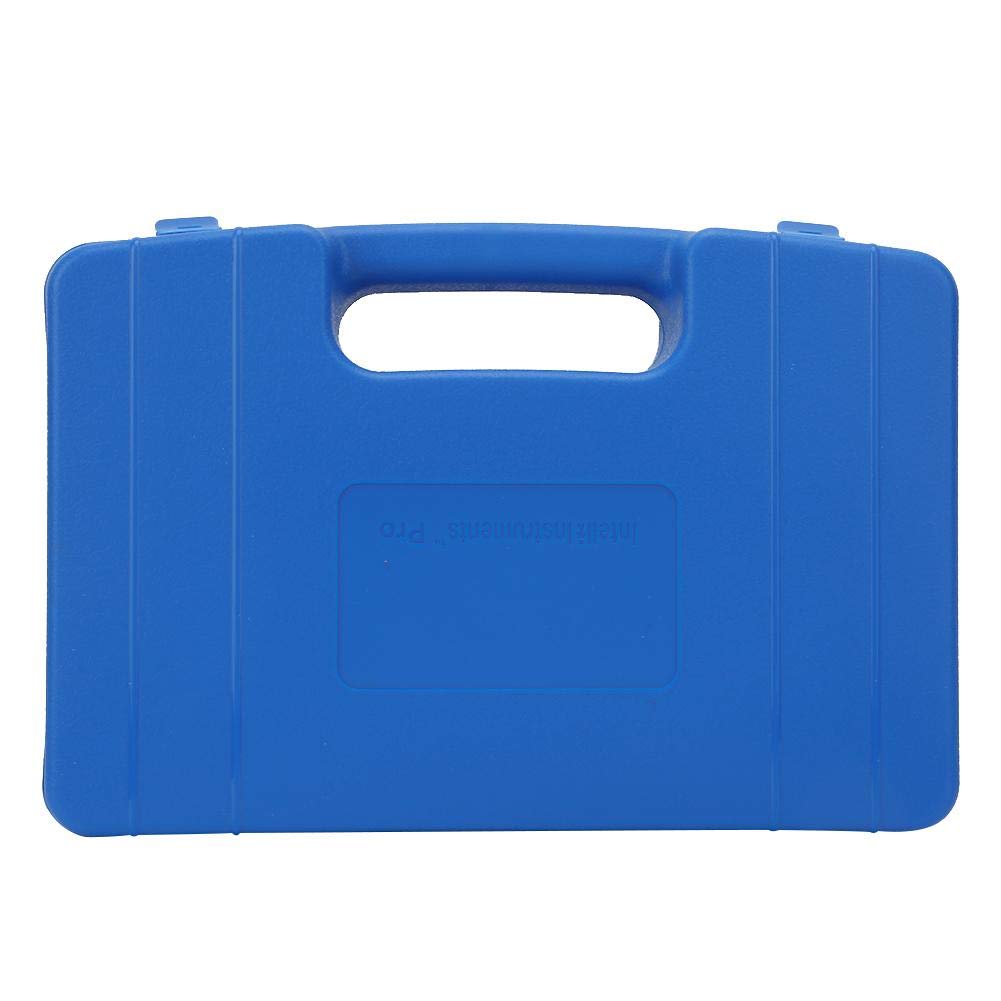

1 * Plastic Box

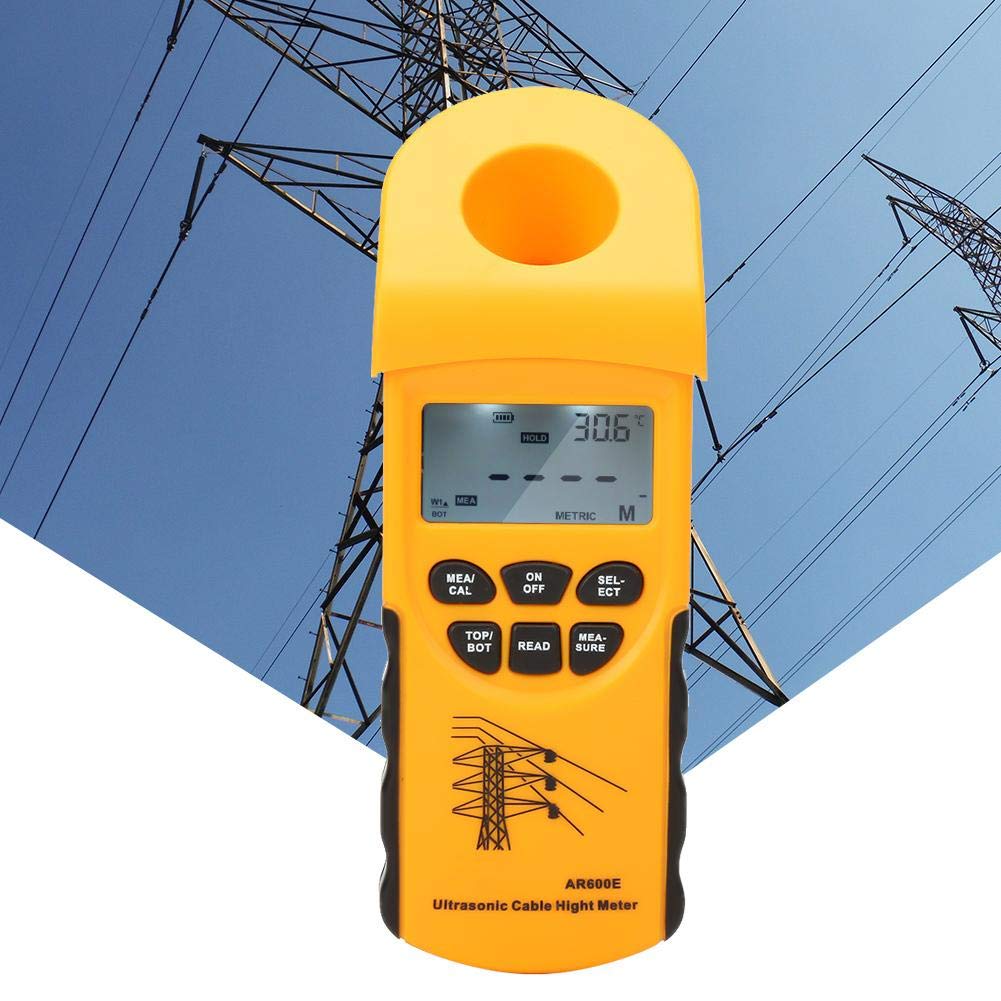

Cable Height Meter, SMART SENSOR AR600E LCD Display 6 Cables Measurement Ultrasonic Cable Height Meter Professional Digital LCD Ultrasonic Cable Height Meter Handheld
$456.99
- For measuring the height up to 6 cables together
- It is convenient to take measurement, easy to aim at the measuring position and to read measuring results
- Uses large measuring sensor, it has high accuracy.
- Suitable for measuring the distance between wire and wire
- Compact appearance and it is convenient to carry
In stock
Additional information
| Weight | 0.9 kg |
|---|---|
| brand | Vikye |
| dimensions | 10 x 10 x 10 cm; 900 Grams |
